3.2 Installation
Installation Orientation
WARNING
• To prevent fire, never use the instrument with the rear panel facing down. There
are vent holes for the cooling fan on the rear panel. Placing the instrument with
the rear panel facing down may cause a fire when the instrument malfunctions.
•
This instrument is designed to be used indoors. Do not install or use it outdoors.
•
Install the instrument so that you can immediately remove the power cord if an
abnormal or dangerous condition occurs.
CAUTION
If you block the inlet or outlet holes on the GS200, the GS200 will become hot and
may break down.

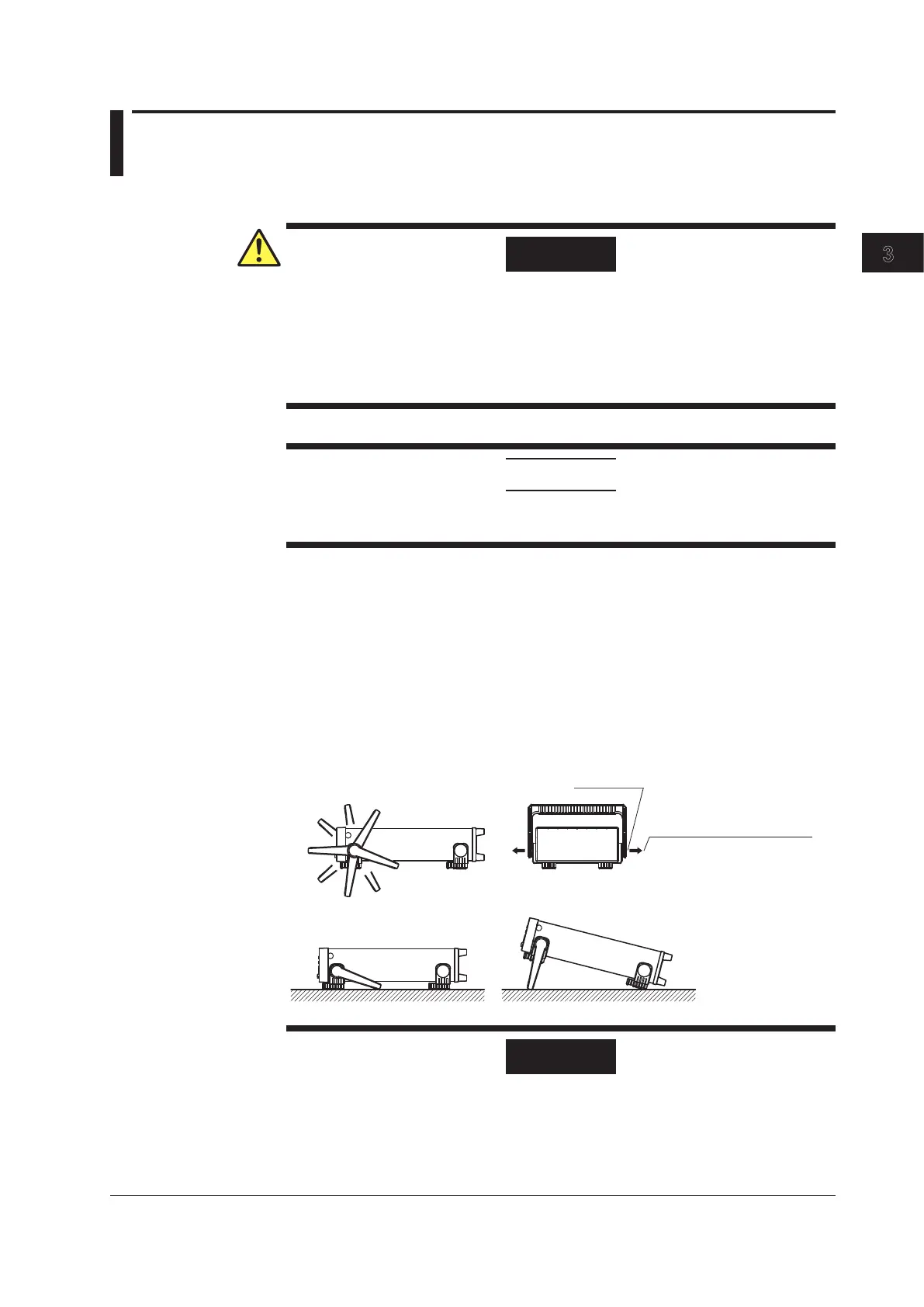

• Place the instrument in a horizontal position as shown in the left section of the figure
below or in an inclined position using the handle as shown in the center section of the
figure below
.
• To use the handle as a stand to tile the instrument, first check
that the handle is fixed
in place, and then position the instrument. To rotate the handle, first pull the handle’s
rotary axis out approximately 2 mm to 3 mm on both the left and right sides of the
instrument, and then rotate it to one of its stop positions.
Rotary axis
Handle Stop Positions (We recommend that you use positions 1, 3, 5, and 8. Do
not place a heavy load on the GS200 when the handle is in stop position 2 or 4.)
Pull this out approximately
2 mm to 3 mm, and rotate
the handle.
1
2
3
4
5
6
7
8
3
1
WARNING
• When adjusting the handle, be careful not to injure your hand with the edges of
the handle.
• When you put away the handle, be careful not to get your hand caught between
the handle or movable legs and the instrument.
3-3
IM GS210-01EN
