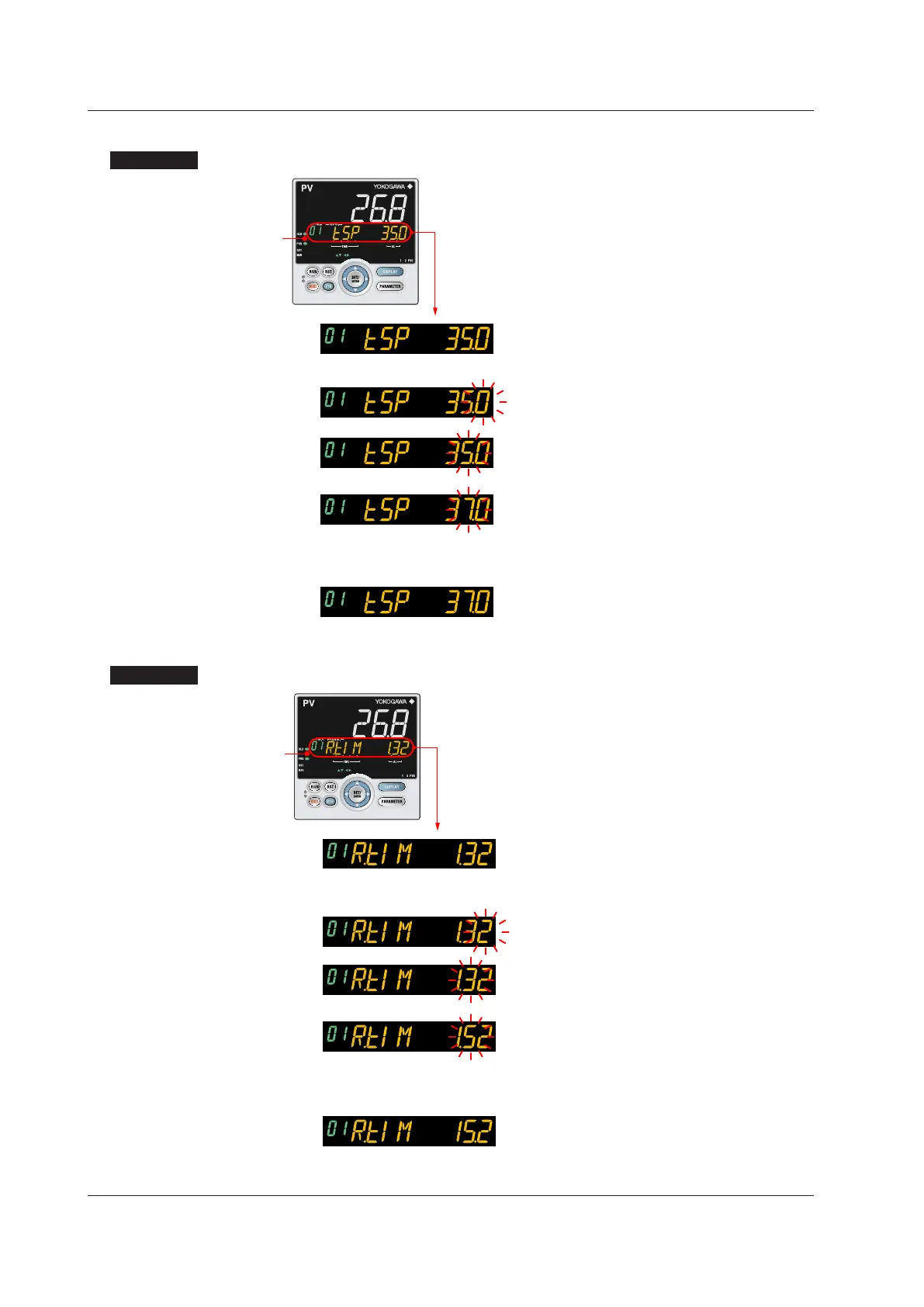

ChangingTSPinHOLDOperation
Operation
1
. Display the TSP Display, switch to HOLD
mode. See “6.6.4 Enabling/Disabling Hold
Mode of Program Operation.”
2
. Press the SET/ENTER key to move to the
setting mode (the setpoint blinks).
3
. Press the Left arrow key to move one digit to
the left. (Press the Right arrow key to move
one digit to the right.)
4
.
Press the Up or Down arrow key to change the
setpoint. Press the Up arrow key when 9 is
displayed to move one digit to the left. Press
the Down arrow key when 0 is displayed to
move one digit to the right.
5
. Press the SET/ENTER key to register the
setpoint.
HLD lamp
is lit
Changing R.TIM in HOLD Operation
Operation
1
. Display the Remaining Segment-time Display,
switch to HOLD mode. See “6.6.4
Enabling/Disabling Hold Mode of Program
Operation.”
2
. Press the SET/ENTER key to move to the
setting mode (the setpoint blinks).
3
. Press the Left arrow key to move one digit to
the left. (Press the Right arrow key to move
one digit to the right.)
4
.
Press the Up or Down arrow key to change the
setpoint. Press the Up arrow key when 9 is
displayed to move one digit to the left. Press
the Down arrow key when 0 is displayed to
move one digit to the right.
5
. Press the SET/ENTER key to register the
setpoint.
HLD lamp
is lit
6.9ChangingSP,TSP,orRemainingSegment-time(R.TIM)inHOLD-mode
