YOKOGAWA UP35A User Manual

9-13
IM 05P02D41-01EN
Program Pattern Functions
9

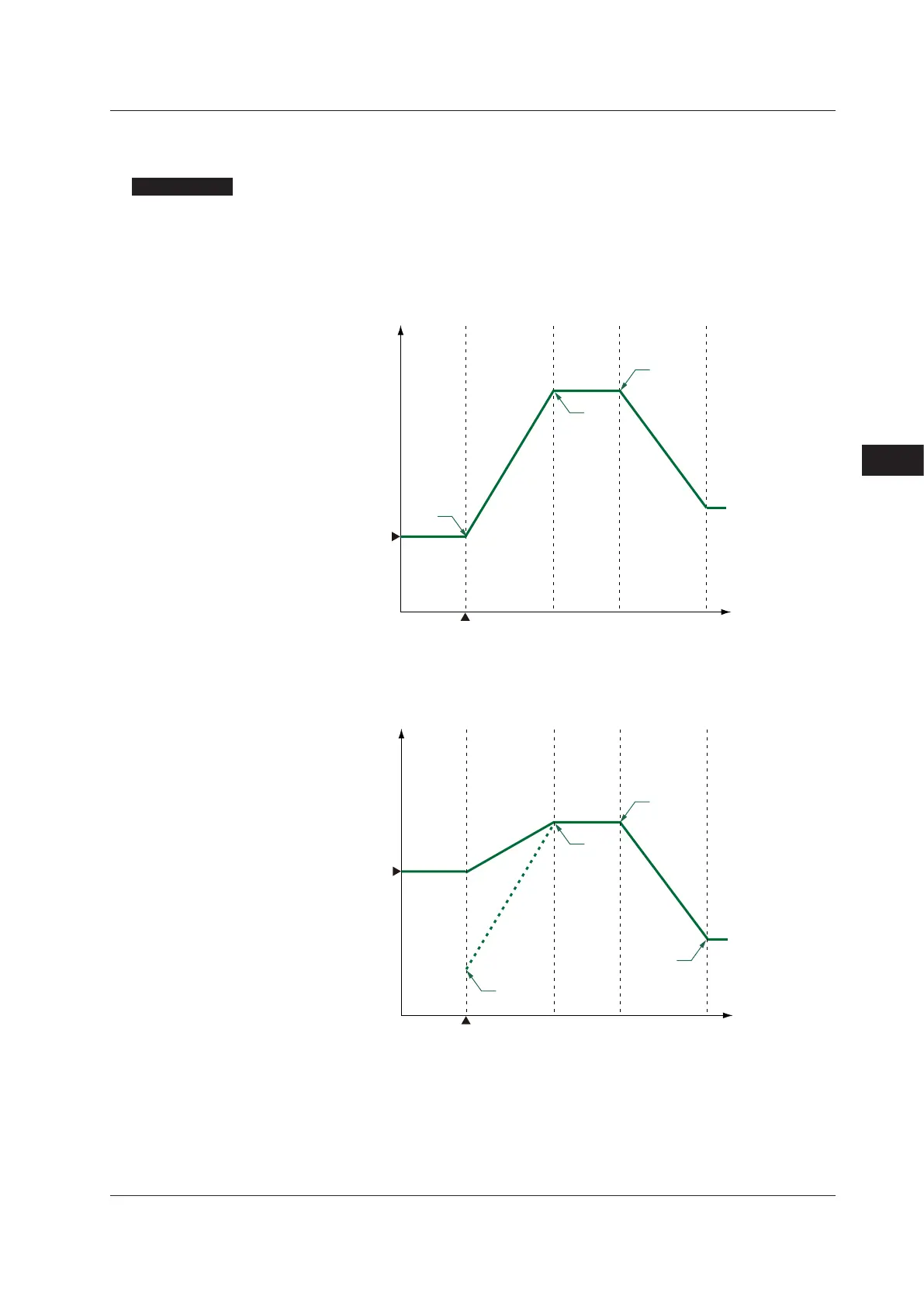

9.3.4 Startingoperationatlocaltargetsetpoint(STC=LSP)
Description
When selected as the start condition, the target setpoint can be changed from the local
target setpoint (LSP) to the target setpoint of segment-1 (TSP.) This change is made
totally independent of PV, using the (TSP - LSP)/TIME ramp.
Local-mode start (STC=LSP) cannot be selected when the segment setting method (SEG.
T) is Segment ramp-rate (TM.RT.)
Seg.1 Seg.2
Seg.3
TSP
SSP
Local target
setpoint (LSP) in
Local operation
Seg.: Segment
TSP
Program pattern
Program operation start (LOC → PRG)
Time
Setpoint
(1)WhenLSPandSSParedifferent
Local target
setpoint (LSP) in
Local operation
Seg.: Segment
Program pattern
Program operation start (LOC → PRG)
Time
Setpoint
Seg.1 Seg.2 Seg.3
TSP
SSP
TSP
TSP
9.3SettingtheProgramStartingConditions(STC)
