YOKOGAWA UP35A User Manual

6-43
IM 05P02D41-01EN
Monitoring and Control of Regular Operations
6

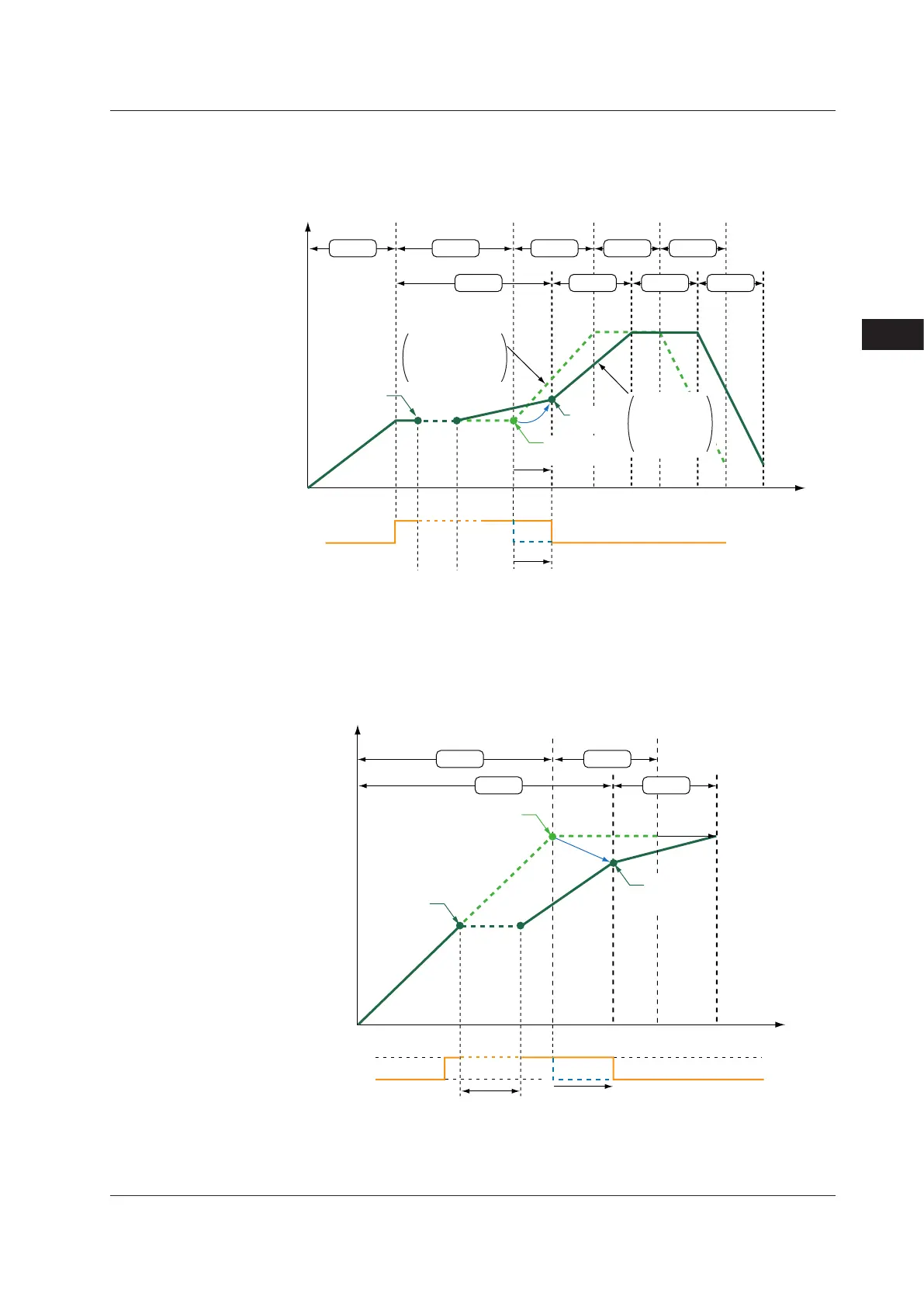

ModifyingFinalTargetSetpoint(TSP)inSoakSegment
The final target setpoint (TSP) can be changed in the soak segment.
When the hold state is released, the program pattern operation restarts towards the
changed final target setpoint (TSP).
Seg.1 Seg.2 Seg.3 Seg.4 Seg.5
Seg.4 Seg.5Seg.3Seg.2
Seg：Segment
Setpoint
Time
Hold interval
（Timer stops）
Time event
TSP：Final target setpoint
On
Off
Program
pattern after
changing the
setpoint
Time delayed by timer stops
Program pattern
before changing
the setpoint
Current
setpoint
TSP after changing
TSP before
changing
TSP after
changing
Before
After
ModifyingFinalTargetSetpoint(TSP)inRampSegment
When the final target setpoint (TSP) is changed in the ramp segment and the hold state
is released, the program pattern operation restarts towards the changed final target
setpoint (TSP).
Seg.1
Seg.1
Seg.2
Seg.2
Seg：Segment
Setpoint
Time
Hold interval
（Timer stops）
Time event
TSP：
Final target setpoint
On
Off
Time delayed by timer stops
Current
setpoint
TSP before
changing
TSP after
changing
Before
After
6.9ChangingSP,TSP,orRemainingSegment-time(R.TIM)inHOLD-mode
