8-36

IM 05P02D41-01EN

8.11

ForcingLocalSetpoint(LSP)toTrackProgram

Setpoint(SPTracking)

Description

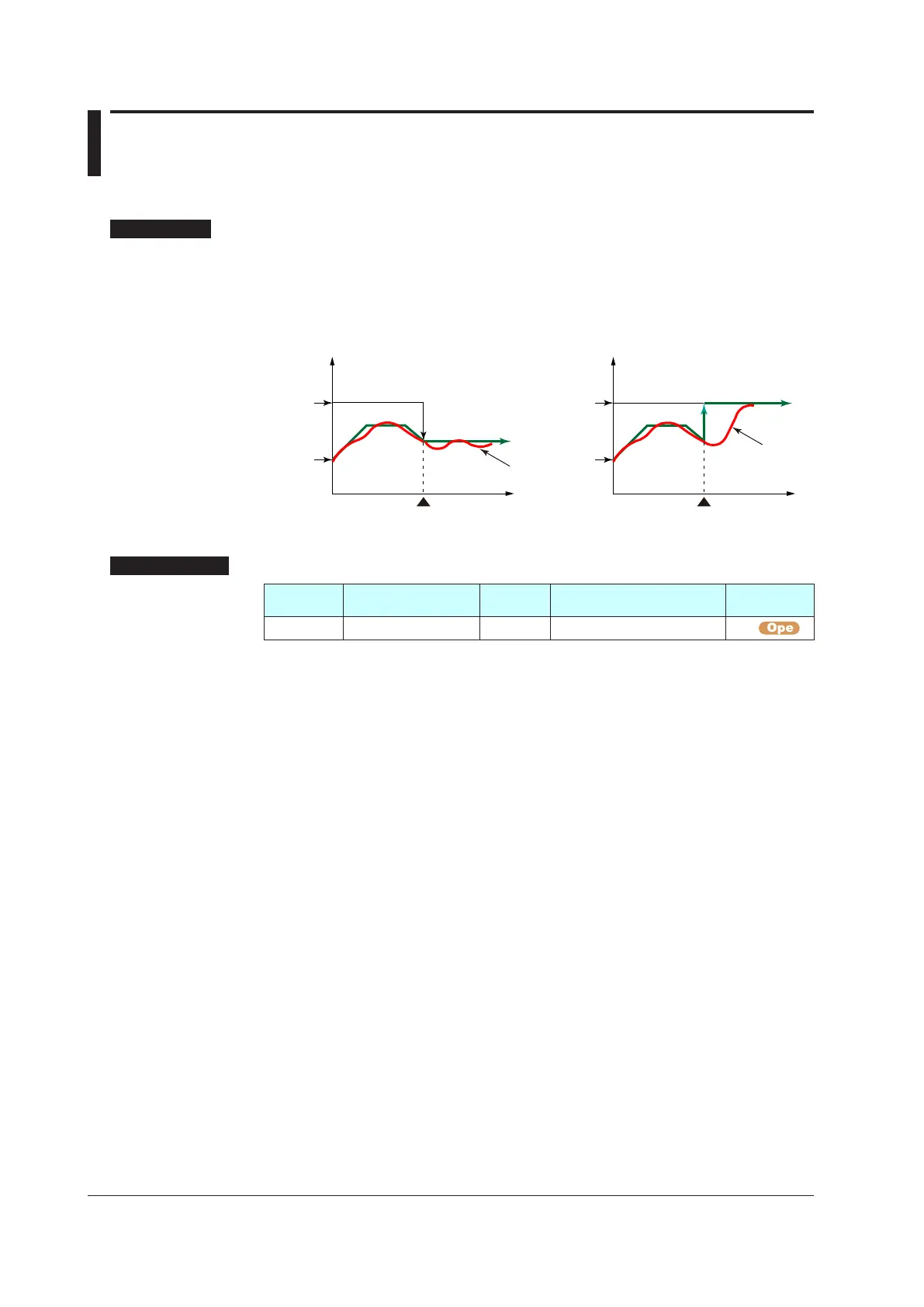

SP tracking function is the function to force the local setpoint (LSP) to track the program

setpoint when the operation mode is switched from program (PROG) to local (LOC)

mode.

The function is effective to prevent abrupt PV changes.

PROG → LOCAL mode switch

Time

PROG → LOCAL mode switch

Time

SP tracking enabled SP tracking disabled

LSPLSP

Program

SettingDetails

Parameter

symbol

Name

Display

level

Settingrange Menusymbol

SPT SP tracking selection STD OFF, ON SPS

Default Chapter4
