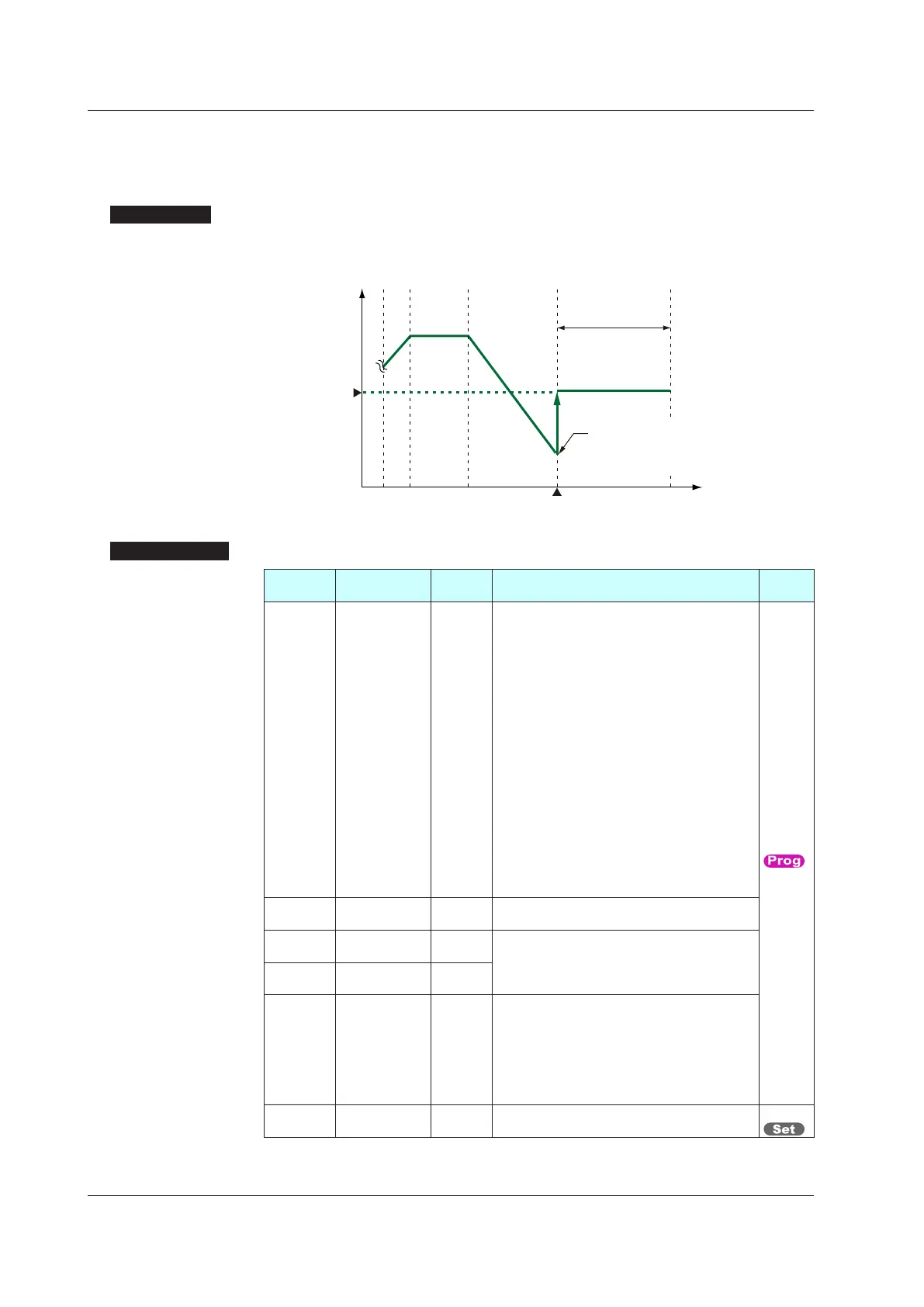

9.8.4 Segmentswitching(thecontrollerswitchestoalocalsetpointwhenthe
segmentiscompletedafterrelease)(JC=W.SL)
Description
The stand-by action is performed in the last segment of program operation and the state
becomes the local operation state after the stand-by state is released.
The wait operation works.
Local operation starts after
releasing wait action.
Setpoint
Time
Program pattern operation stop
Local operation
Local target
setpoint (LSP)
Program pattern
Last segment
SettingDetails
Parameter
symbol
Name
Display
level
Settingrange
Menu
symbol
JC Junction code STD
CONT: Switching for continuation
HOLD: Hold-on switching (the controller holds
the end-of-segment setpoint when the
segment is completed, to perform control).
LOC: Local-mode switching (the controller
switches to a local setpoint when the
segment is completed).
W.SW: Wait during switching between
segments.
W.IV: Wait within a segment interval.
W.SL: Segment switching (the controller
switches to a local setpoint when the
segment is completed after release.)
PLK.1 to PLK.2 (PLK.4 when the option “/AP”
isspecied.):Linkedtopatterns1to2(4.)
INS.: Allows a segment to be added to the end
ofaspeciedsegment.
DEL.:Allowsaspeciedsegmenttobe
deleted.
PROG
WT.SW1
Wait function
ON/OFF
STD
OFF: Disable
ON: Enable
WT.UP1
Upper-side wait
zone
STD
0.0 to 10.0% of PV input range (EU)
WT.LO1
Lower-side wait
zone
STD
WT.TM1 Wait time STD
OFF: No function
0.00 to 999.59 (“hour.minute” or “minute.
second”)
* Available only for the wait time at the
segment switching.
* Use the parameter TMU to set the time unit.
(Common in the instrument.)
TMU
Program time
unit
EASY
HH.MM: hour.minute
MM.SS: minute.second
CTL
9.8SettingtheOperationinSegmentSwitching
