Monitoring and Control of Regular Operations
6

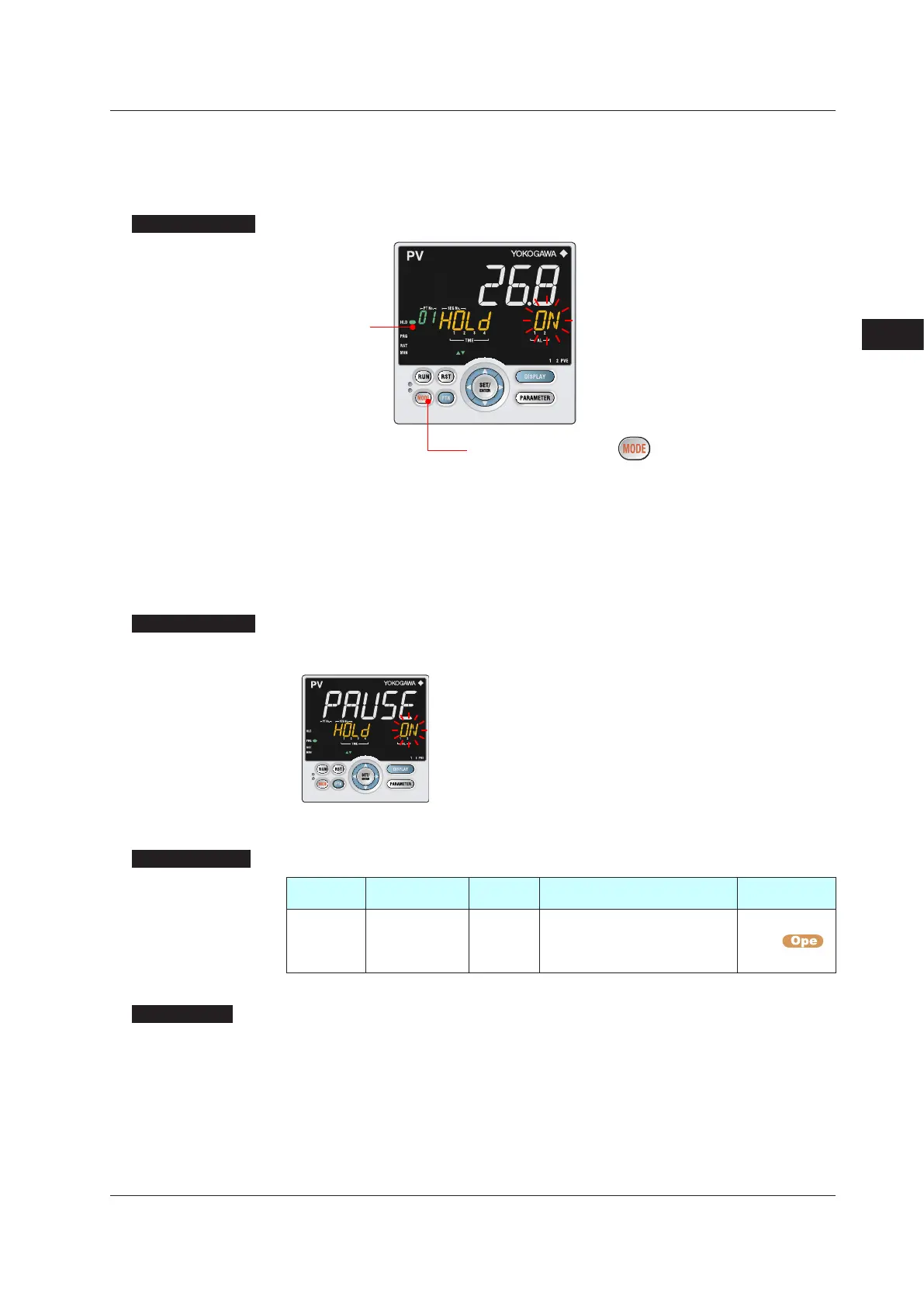

6.6.4 Enabling/DisablingHoldModeofProgramOperation
SelectingbyMODEKey
SettingDisplay
HLD lamp is lit in
HOLD mode.
Each time you press the key,
Operation modes is switched.
• Display HOLD ON (blinking), and press the SET/ENTER key.
HLD lamp is lit.
•
Display HOLD OFF (blinking), and press the SET/ENTER key.
HLD lamp is unlit.
SelectingbyOperationModeParameter
SettingDisplay
Parameter Setting Display
Operation Display > PARAMETER key or PARA key for 3
seconds (to [MODE] Menu Display) > SET/ENTER key (The
setting parameter is displayed.) > Downarrow key (The
setting parameter is displayed.)
SettingDetails
Parameter
symbol
Name
Display
level
Settingrange Menusymbol
HOLD
Pause/cancel
release of
program
operation
EASY
Display during program operation.
ON: Pause
OFF: Cancel release (Program
operation restart)
MODE
Description
HOLD switching can be performed during program operation.
HOLD switching can be performed by any of the following:
(1) MODE key
(2) Operation mode parameter
(3) Contact input
(4) Communication
After switching is performed by the above (1) or (2), the display is switched to SP Display.
► Switchbycontactinput:12.1SettingContactInputFunction
6.6SwitchingOperationModes
