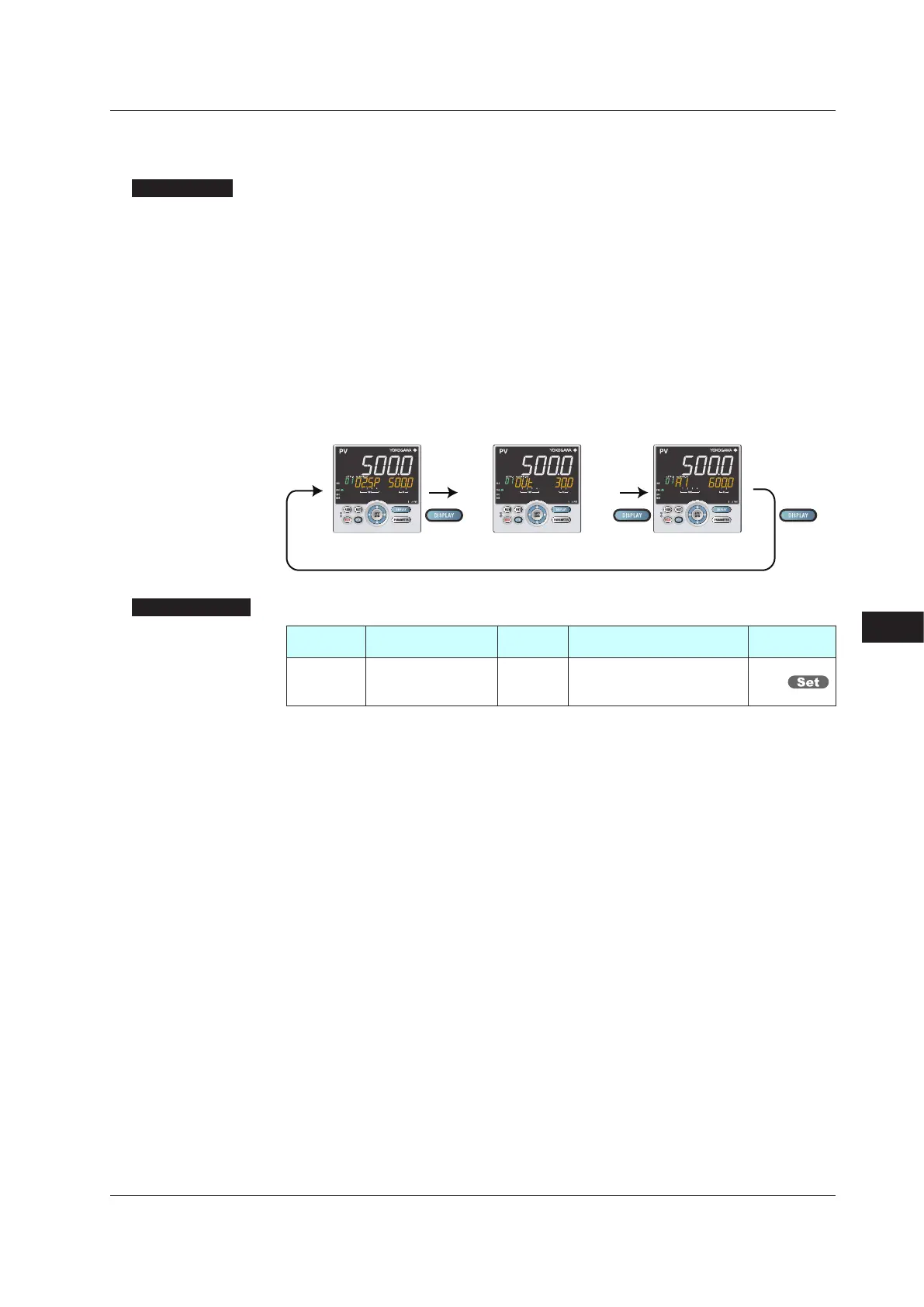

13.1.3 RegisteringSELECTDisplay(Upto5Displays)
Description
Registering frequently changed-operation parameters in the SELECT Display of the
Operation Displays will allow you to change parameter settings easily. A maximum of five
Displays can be registered.
Set the D register number of the parameter you wish to register for the registration to the
SELECT Display.
However, the parameters in the following menu cannot be set:
CTL, PV, MPV, OUT, HBA, R485, ETHR, PROF, DNET, CC-L, KEY, DISP, CSEL, KLOC,
MLOC, DI.SL, DI.NU, DI.D, ALM, DO, I/O, SYS, INIT, VER, and LVL.
When each parameter is displayed, the terminal area (E1 to E4) is displayed on Group
display according to the suffix code and optional suffix code.
SP Display
Ordinary Operation Displays
OUT Display
Example: Alarm Setpoint Setting Display
• • • • • • • •
SettingDetails
Parameter
symbol
Name
Display
level
Settingrange Menusymbol
CS1toCS5
SELECT Display-1 to
-5 registration
STD
OFF: No registration D register
number (2201 to 5000) (6701
to 6710)
CSEL
For D register numbers, see the UTAdvanced Series Communication Interface User’s Manual.
