1-2
IM 05P02D41-01EN

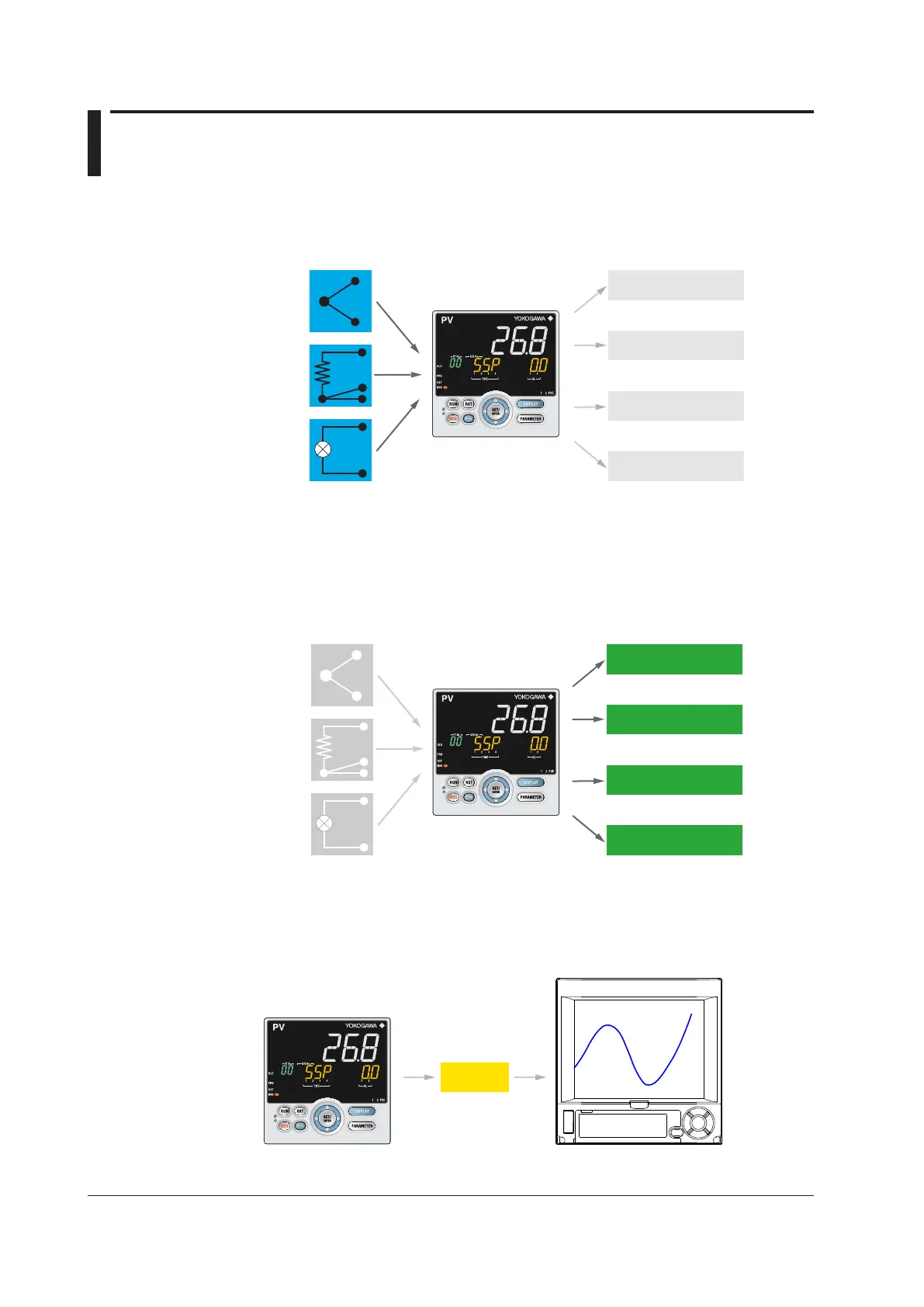

1.2 Input/Output Function
PV Input
PV input is a universal input to arbitrarily set the type and range for the thermocouple (TC),
resistance-temperature detector (RTD), and DC voltage/current.
► Chapter7Input(PV)Functions
Current
Voltage pulse
Relay contact / Triac
Motor-operated valve
TC
mV
V
mA
RTD
Control Output
Control output (OUT) is a universal output to arbitrarily set the type for the current,
voltage pulse, and relay/triac. Heating/cooling control and Position proportional control
are possible by specifying the suffix code for the control.
Position proportional control is used exclusively for the motor-operated valve.
Heating/cooling control is for two output type of heat and cool.
► Chapter10Output(ControlandRetransmission)Functions
Current
Voltage pulse
Relay contact / Triac
Motor-operated valve
mV
V
mA
RTD
Retransmission Output
Retransmission output outputs a PV input value (PV), target setpoint (SP), control output
value (OUT) and the like as an analog signal to, for example, the recorder.
► Chapter10Output(ControlandRetransmission)Functions
Current
External device such as recorder etc.
UP35A/UP32A
To Next Page
