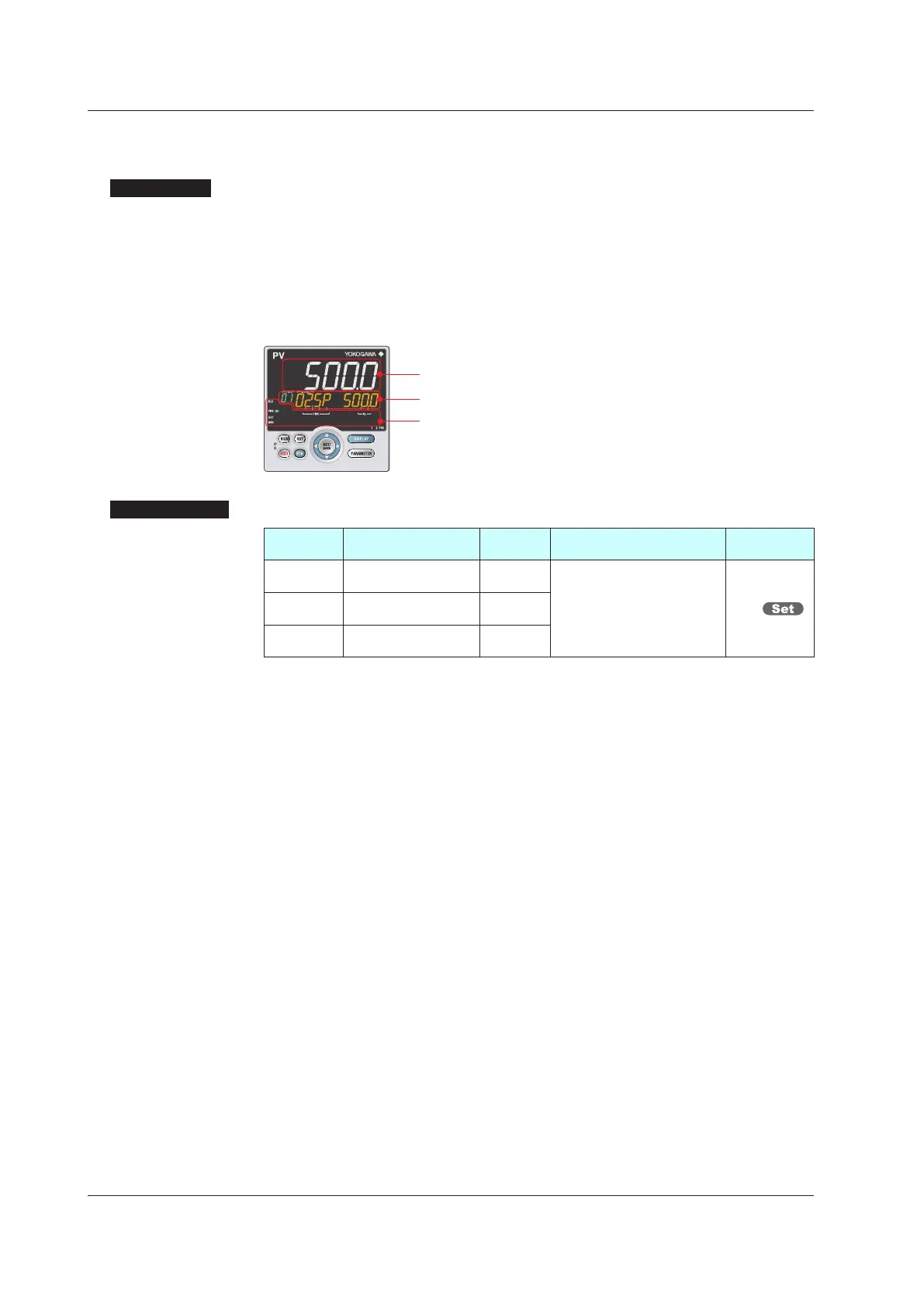

13.1.2 MaskingArbitraryDisplayValueinOperationDisplay

Description

Display/non-display of the PV display, Setpoint display, and Status display in the

Operation Display can be set.

Items that you do not want to display can be set to non-display. For example, when the

Setpoint display is set to non-display, SP of the SP Display and OUT of the OUT Display

are not displayed.

When an error at power-on or hardware malfunction error occurs, Operation display

cannot be set to non-display.

PV display

Setpoint display

Status display

SettingDetails

Parameter

symbol

Name

Display

level

Settingrange Menusymbol

PV.D

PV display area ON/

OFF

PRO

OFF: Nondisplay

ON: Display

DISP

SP.D

Setpoint display area

ON/OFF

PRO

STS.D

Status display area

ON/OFF

PRO

13.1SettingDisplayFunctions

Default Chapter4
