17-16

IM 05P02D41-01EN

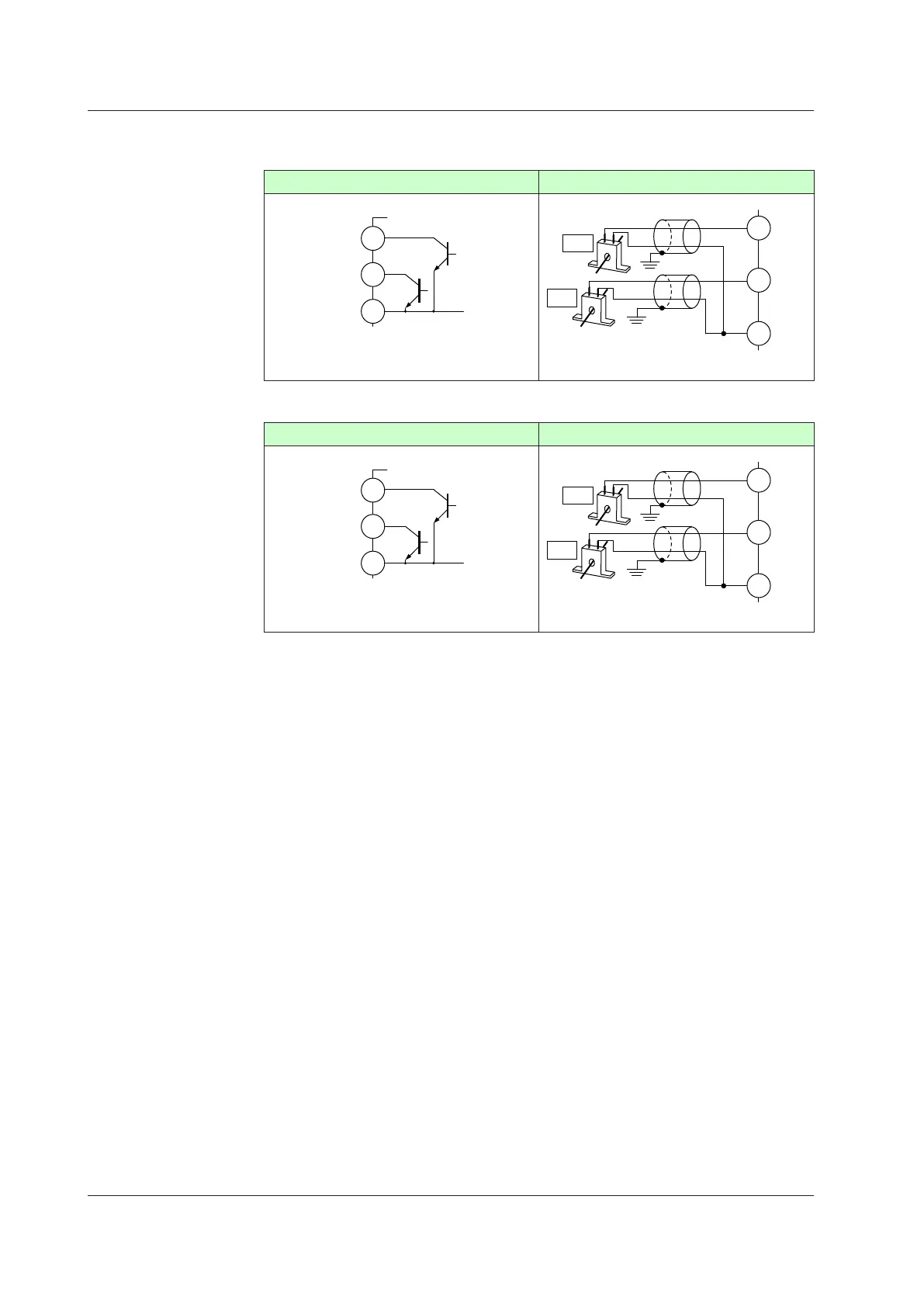

17.4.10 Heater Break Alarm Wiring

Heater break alarm can be used for the UP35A with the optional suffix code /HA.

Heater break alarm Heater break detection

Contact raging: 24 V DC, 50 mA

HAL1

HAL2

COM

507

508

509

HBA

Class D grounding

Grounding

Shield

CT1

CT2

COM

510

511

512

HBA

Heater break alarm can be used for the UP32A with the optional suffix code /HA.

Heater break alarm Heater break detection

Contact raging: 24 V DC, 50 mA

HAL1

HAL2

COM

307

308

309

HBA

Grounding

Shield

CT1

CT2

COM

310

311

312

HBA

17.4 Wiring
