9.8 SettingtheOperationinSegmentSwitching
Segment end condition can be set for each segment. End condition can be set so that
the program advances automatically to the next segment.
Use the program parameter “JC” to specify the program segment-end conditions.
► Wait operation: 9.4 Setting the Wait Functions
9.8.1 Switchingforcontinuation(JC=CONT)
Description
If program continue (JC=CONT) is selected as the segment end condition, the program
advances to the next segment and operation continues when the current segment ends.
If it is set for the last segment in the program, the program stops (resets) at the end of
that segment. At the end of the last segment, the start setpoint is taken as the target
setpoint.

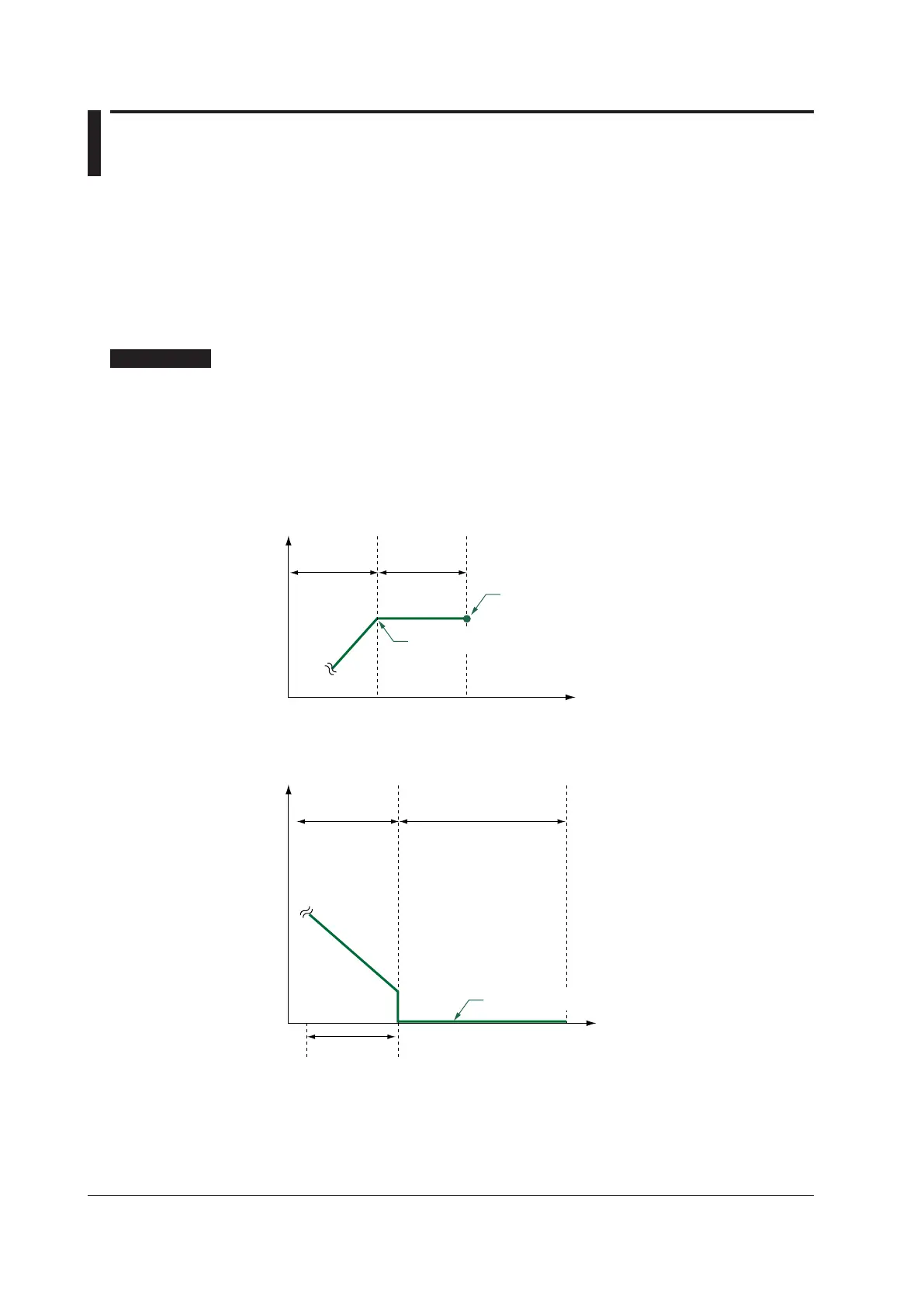

Exampleofprogramcontinueasthesegmentendcondition
Segment n
Setpoint
Time
Segment n-1
Target setpoint of Segment n-1
Target setpoint of Segment n
n = 1 to 20 (40 when the option
“/AP” is specified.)
Exampleofthelastsegment
Reset operation
Setpoint
Time
Program operation
Last segment
JC = CONT
Starting target setpoint (SSP)
