17-20
IM 05P02D41-01EN
17.4.14


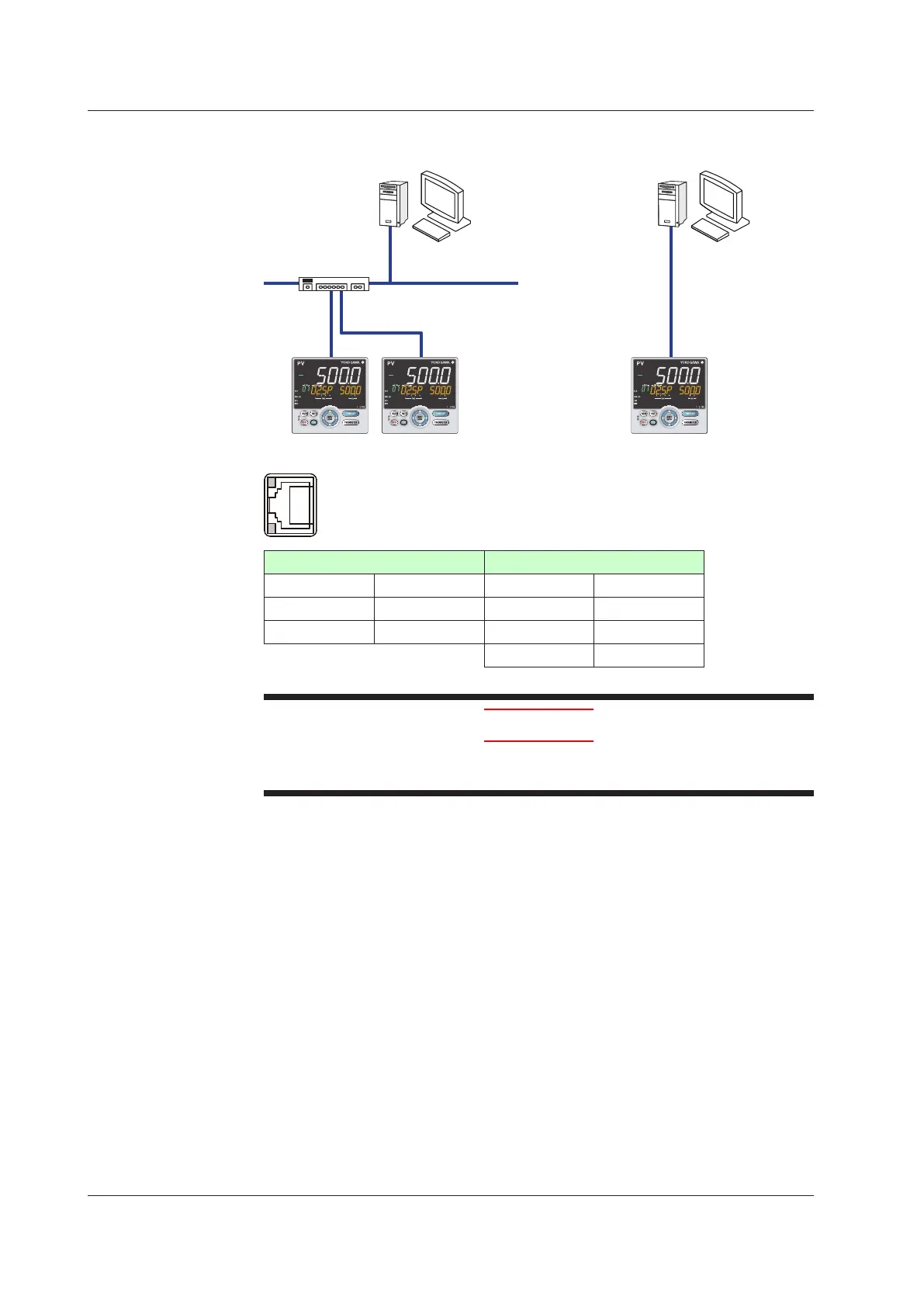

EthernetCommunicationInterfaceWiring(UP35A
only)
Ethernet
Straight cable
HUB
UP35A
UP35A
Crossing cable
*Devices that can be
connected via Ethernet
*Devices that can be
connected via Ethernet
UP35A
Upper side LED (baud rate)
LowersideLED(linkactivity)
Color
Amber
Color
Green
Lit
100M bps
Lit
Linked
Unlit
10M bps
Blink
Active
Unlit
Link failure
CAUTION
BesuretoconnectalightningarresterforEthernet(100BASE-TX/10BASE-T)inan
environment where a surge voltage may be induced by a lightning discharge.
17.4 Wiring
336
