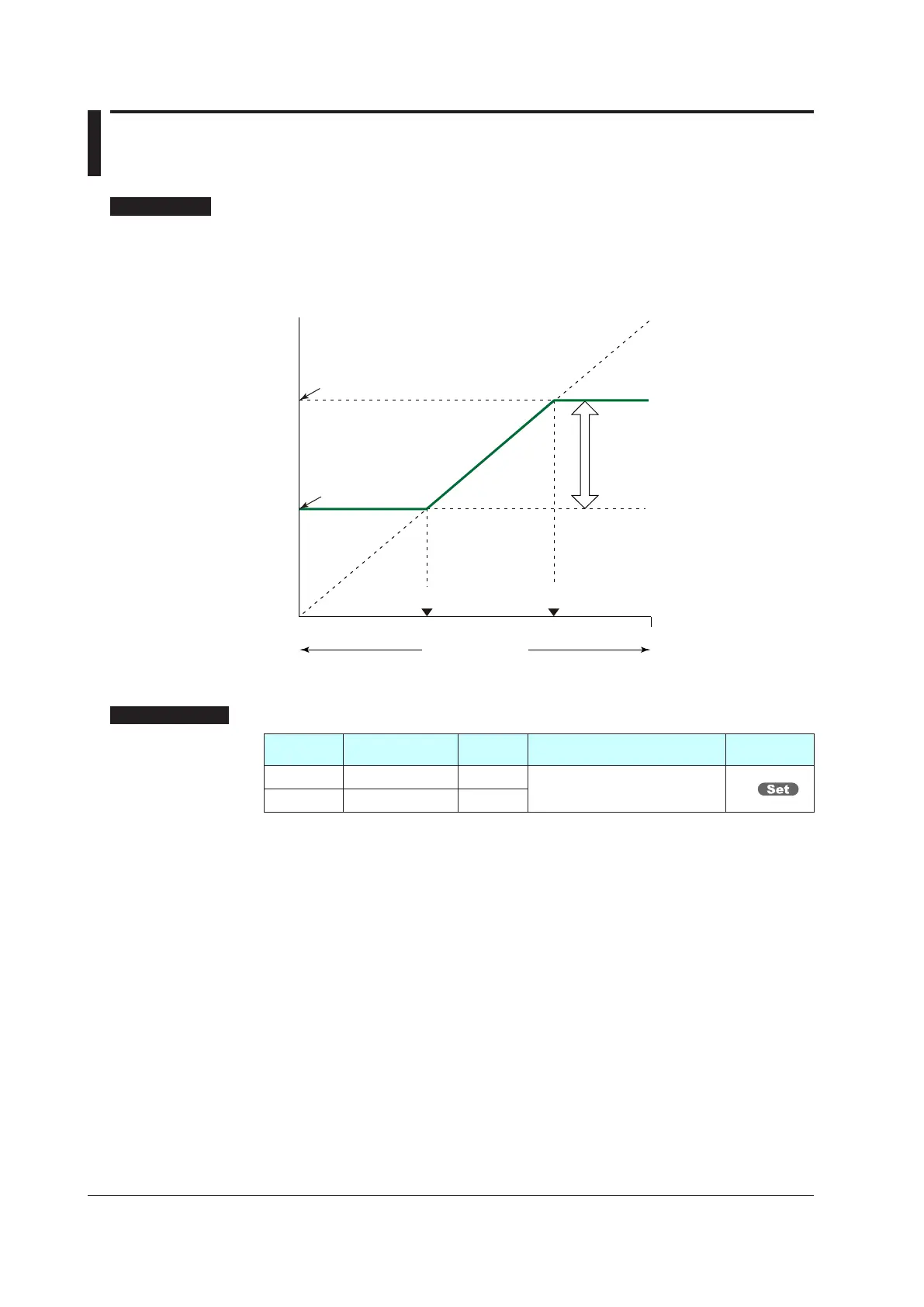

8.9 SettingSPLimiter
Description
The SP high and low limits can be set to restrict the SP to the operating range between
those limits whether in PROG (program) or LOC (local) mode. They works to the SP of
all SP groups.
SPH and SPL do not work a program pattern is being created.
0.0
100.0(%)
SPH
Actual SP
SPL
Operating range of actual SP
Setting range
0.0
(%)
10
0.0
High limit of SP
Low limit of SP
SettingDetails
Parameter
symbol
Name
Display
level
Settingrange Menusymbol
SPH SP high limit STD
0.0 to 100.0% of PV input range
(EU), (SPL<SPH)
MPV
SPL SP low limit STD
