6-2
IM 05P02D41-01EN

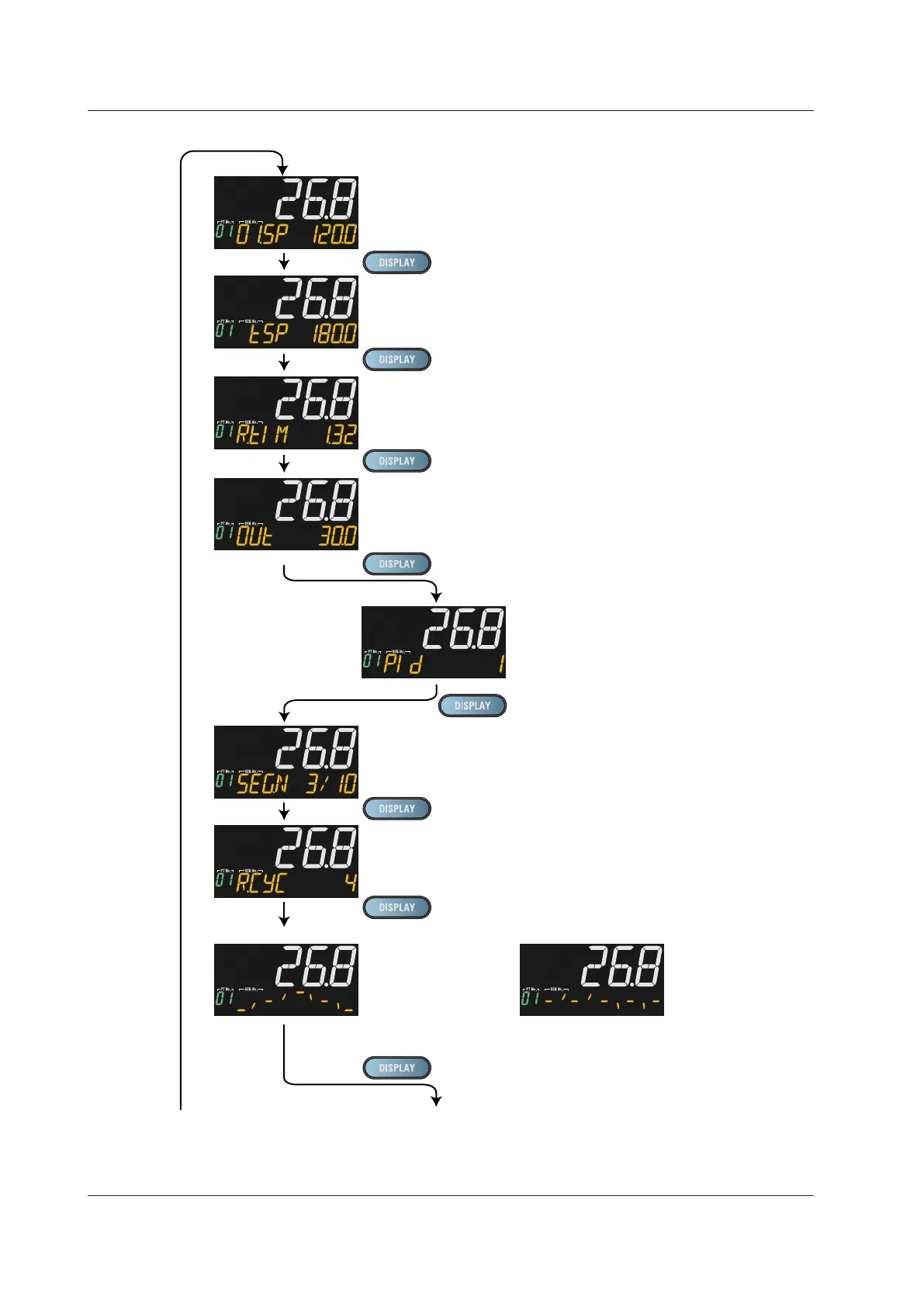

StandardType
TSP Display
Remaining Segment-time Display
Segment Number Display
Remaining Repetition Display
Program Pattern Display
program pattern (overview)
Can be changed by parameter PTSL.
Soak and ramp display
(UP35A only)
(UP35A only)
Displays "SSP" during reset-mode.
Displays "L.SP" during local-mode operation.
Displays during program operation.
Displays during program operation.
When the pattern number is 0, 0/0 is displayed.
When pattern number is
0, pattern is not
displayed.
SP Display
OUT Display
PID Number Display (display only)
(Factory default: non-display)
Heater Break Alarm-1 Current Display (display only)
(Only for Heater break alarm option)
Heater Break Alarm-2 Current Display (display only)
(Only for Heater break alarm option)
Analog Input Displays (display only)
(Factory default: non-display)
PV: PV analog input
SELECT Displays 1 to 5
(Displayed only when SELECT Display is registered.
(The figure on the left is the example of
the parameter A1 (alarm-1 setpoint).)
(OUT can be changed in MAN mode.)
Dispalys the number of remaining repetitions (R.CYC) on Setpoint display.
This display is displayed only when the repeat function is set and the
operation mode is PROG.
6.1MonitoringandControlofOperationDisplays
To Next Page
