YOKOGAWA UP35A User Manual

9-11
IM 05P02D41-01EN
Program Pattern Functions
9
PV at start Operation-starting point
a A1
b B1
c C1
d D1
e E1 (SSP)

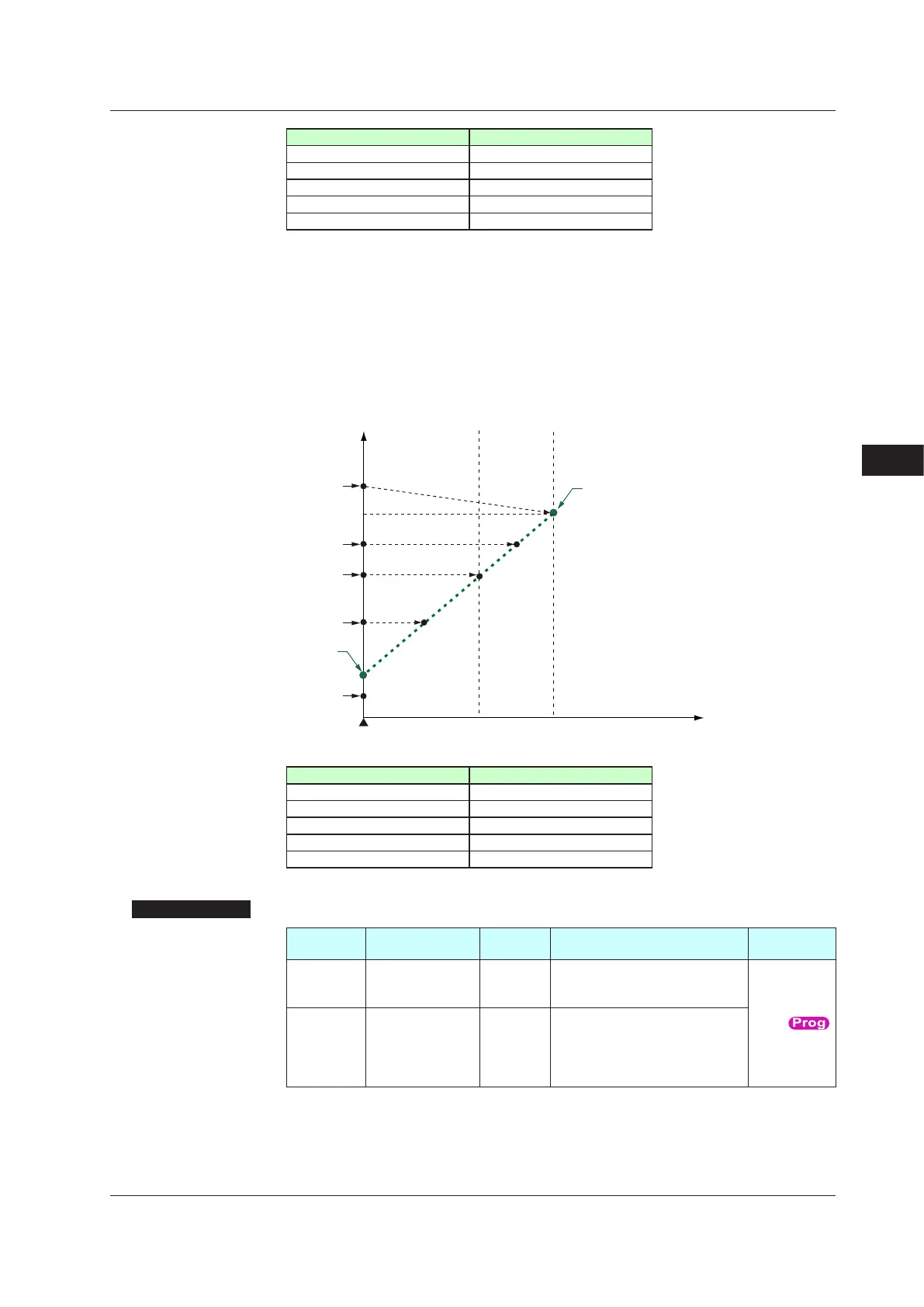

Exampleofprogramswithonlyramp-upsegments
The program pattern contains points A1 to E1.
For some PV, the program advances through the segments up to the point at which the
ramp is reversed.
When the program operation starting point is set to A1, program operation is performed
foronecontrolperiod,andprogramoperationendsaccordingtothejunctioncode(JC)
for segment 2.
D1
E1
B1
C1
TSP
SSP
Segment 1 Segment 2
a
b
c
d
e
A1
Program pattern
Program operation start (PRG)
Time
Setpoint
PV at start Operation-starting point
a A1
b B1
c C1
d D1
e E1 (SSP)
SettingDetails
Parameter
symbol
Name
Display
level
Settingrange Menusymbol
SSP
Starting target
setpoint
EASY
0.0 to 100.0% of PV input range
(EU)
(Setting range: P.RL to P.RH)
PROG
STC Start code EASY
SSP: Program operation begins
with the starting target setpoint.
RAMP:Ramp-prioritizedPVstart
TIME:Time-prioritizedPVstart
LSP: Local-mode start
9.3SettingtheProgramStartingConditions(STC)
