1-5
IM 05P02D41-01EN
Introduction to Functions
1
1.3 Control Functions

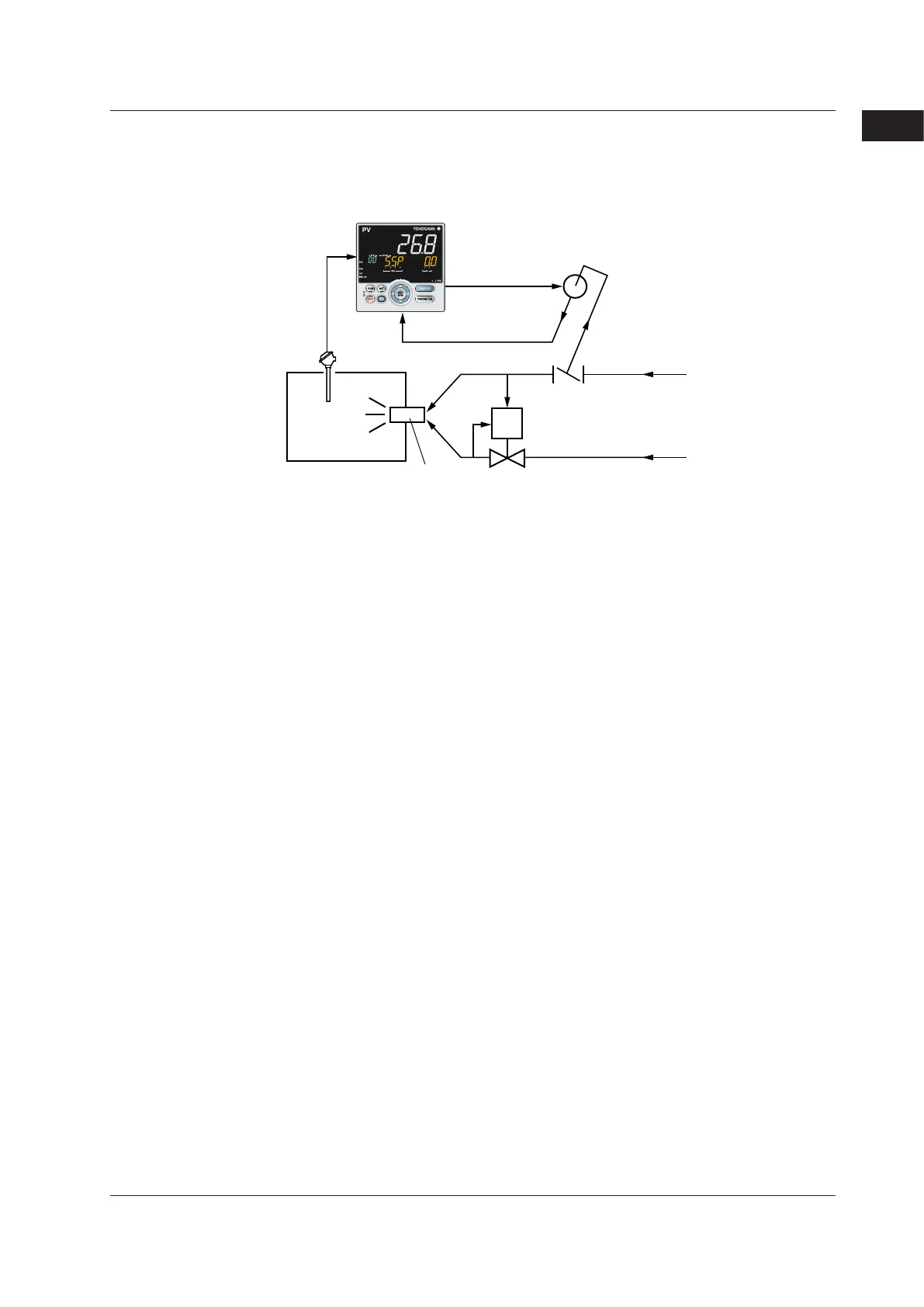

Position Proportional Control
Position proportional control is available only for Position proportional type. It is used
exclusively for the motor-operated valve.
►
10.14
AdjustingMotor-operatedV
alvePosition(PositionProportionalOutput)
TC
Furnace
UP35A/UP32A
Burner
Air
Gas
Motor-operated valve
Control motor
Position signal
H (direct) or L
(reverse)
contact signal
25
27
