Link to PV
The PV display color changes by linking to PV.

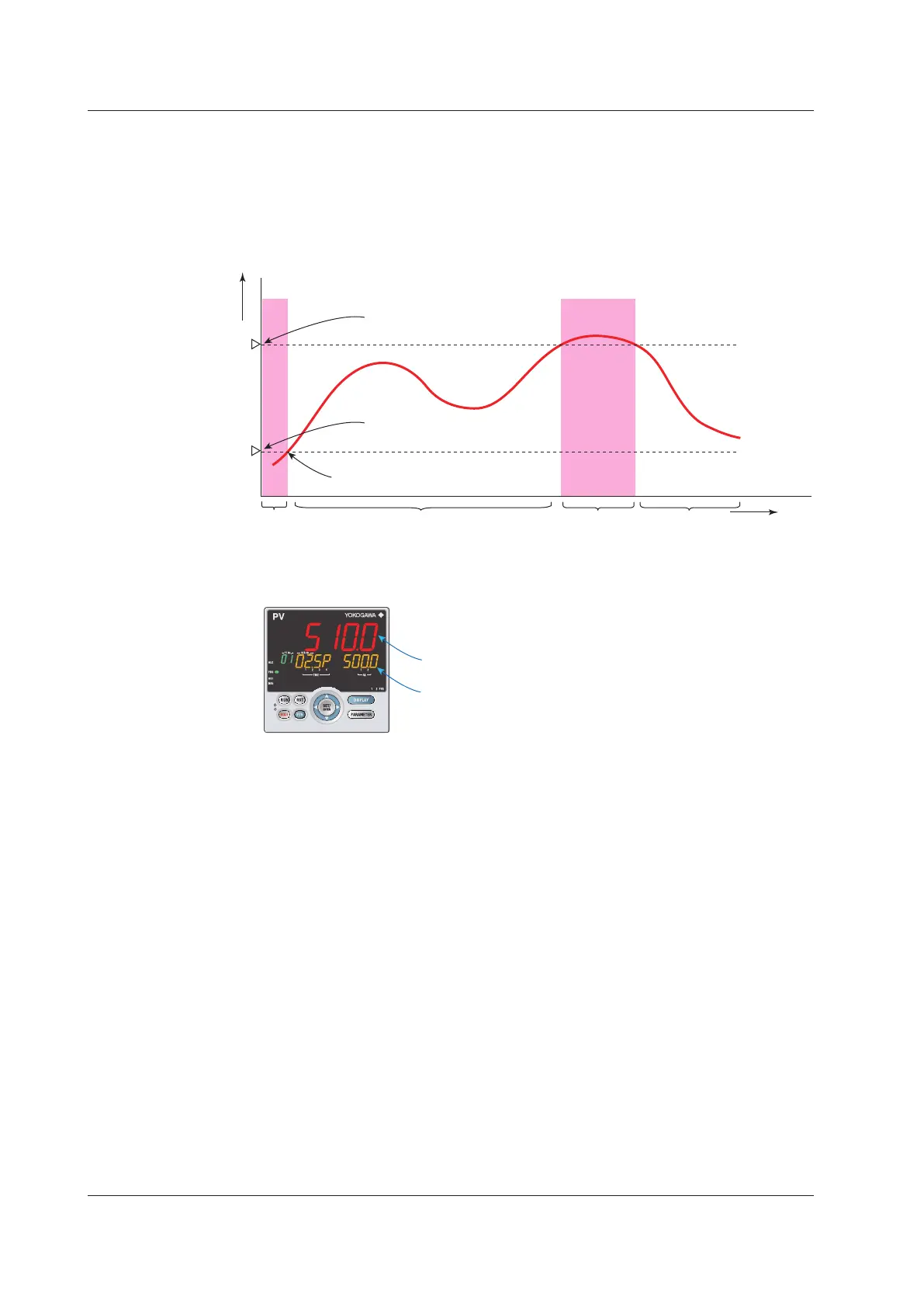

Set the PV color change high limit to “70°C” and the PV color change low limit to “20°C.”
PV display color changes from white to red if PV is out of the range.
The red-to-white switching action can be set. There is no hysteresis.
Time
°C
°C
PV
Parameter “PCH” (PV color change high limit) = 70°C
Parameter “PCL” (PV color change low limit) = 20°C
°C
PV color: red PV color: red
PV color: white PV color: white
UseinFixedColor
PV display color can be fixed in red. It can also be fixed in white.
PV color: red
SP color: orange
(SP color cannot be changed.)
Link to DI
The PV display color changes by linking to DI (ON/OFF).
The following is an example for changing the display color by a state of DI1.
Set the parameter PCMD=10, and PVRW=5025.
PV display color is red when DI1=ON, and is white when DI1=OFF.
PVRW: PV red/white switch (Menu: DI.SL)
