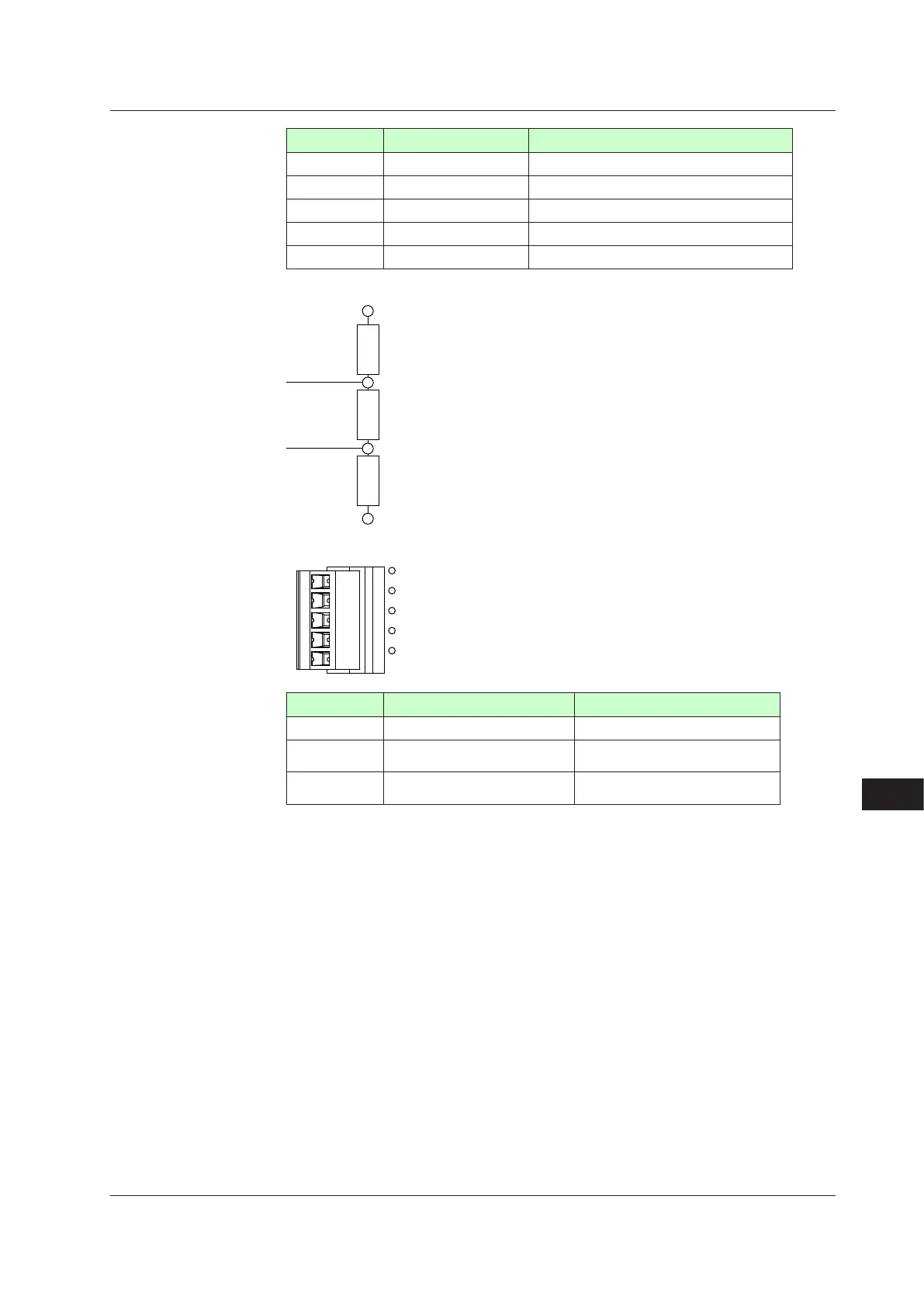

Installation and Wiring

NumberofPin Singnalname Description

1 VP +5V bus power

2 RxD/TxD-P Data signal (positive data receive/transmit)

3 RxD/TxD-N Data signal (negative data recive/transmit)

4 DGND Signal ground

5 SHIELD Shield ground

TerminatingResisterofBus

RxD/TxD-P

Data line

390Ω

220Ω

390Ω

RxD/TxD-N

DGND

PROFIBUS-DPcommunicationconnectorandLED

CHK

RDY

ERR

LED Lit Unlit

CHK (red) Userproleerror Normal

RDY (green)

Normal.

Communicating successfully.

No electricity, or Communication

failure

ERR (red)

Not connected, or communication

failure(ashing)

Normal

Modbusmasterwiring

Modbus master wiring is same as RS-485 communication wiring for Ethernet-serial

gateway function.

17.4 Wiring
