YOKOGAWA UP35A

4
All Rights Reserved. Copyright © 2010, Yokogawa Electric Corporation
GS 05P02D41-01EN Mar.14,2016-00
PROFIBUS-DP Standard:Fieldbus(IEC61158)
Corresponding version : DP V0
Baud rate : 9.6k, 19.2k, 45.45k, 93.75k, 187.5k, 0.5M, 1.5M, 3M, 6M, 12M, AUTO
(*4)
Communication distance : 1200 m (9.6k to 93.75k), 1000m (187.5k), 400m (0.5M), 200m (1.5M), 100m (3M to 12M)
  *4:AUTOautomaticallysetsthebaudratetothatofthehostcontroller(PROFIBUS-DPmaster).
CC-Link Supported version : Remote device (Ver.1.10, Ver.2.00)
  Baudrate:156k,625k,2.5M,5M,10Mbps
  Transmissiondistance:1.2km(156kbps),600m(625kbps),200m(2.5Mbps),150m(5Mbps),100m(10Mbps)
When using optical repeater : 7.6 km (156k) to 4.3 km (10M)
DeviceNet Standard : Fieldbus(IEC61158)
  Baudrate125k,250k,500kbps
  Transmissiondistance500m(125kbps),250m(250kbps),100m(500kbps)

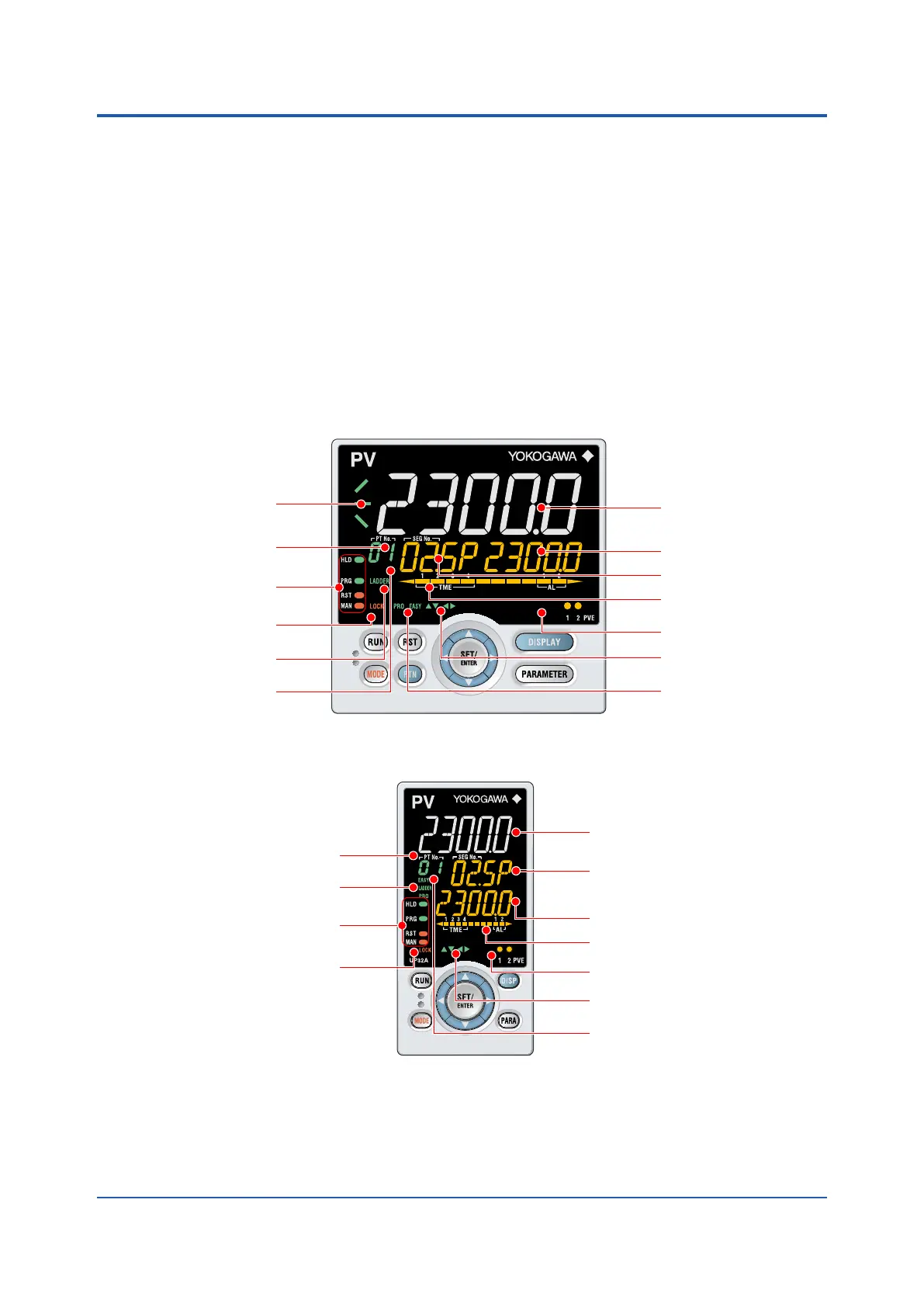

nHardwareSpecications
DisplaySpecications
• PV display: 5-digit, 14-segment active color LCD (white/red)
Character height; UP35A: 21.5 mm, UP32A: 13.0 mm
• Data display: 5-digit, 11-segment color LCD (orange)
• Bar graph display: 12-segment color LCD (orange)
(1) PV display
(9) Deviation indicator
(2) Group display
(Pattern number)
(10) Status indicator
(11) Security indicator
(12) Ladder operation indicator
(13) Loop 2 indicator
(4) Data display
(2) + (3) + (4) : Setpoint display
(3) Symbol display
(5) Bar-graph display
(Event, alarm)
(6) Event indicator
(7) Key navigation indicator
(8) Parameter display level
indicator
UP35A
(1) PV display
(2) Group display
(Pattern number)
(9) Status indicator
(10) Security indicator
(11) Ladder operation indicator
(4) Data display
(2) + (3) + (4) : Setpoint display
(3) Symbol display
(5) Bar-graph display
(Event, alarm)
(6) Event indicator
(7) Key navigation indicator
(8) Parameter display level
indicator
UP32A
