5 - 14 MP7000 Scanner Scale Integrator Guide
Scanning
The MP70XX uses its horizontal and vertical scan windows simultaneously to read 1D, 2D (PDF, Aztec etc.) and
mobile barcodes (cell phone) in all orientations.
The MP70XX includes an automatic Infra-Red (IR) wakeup system that reduces power consumption. When any
object is presented in the field of view of the scan windows, the red illumination turns on, but automatically turns off
when the object is removed. When the object presented in the field of view includes a barcode, the MP70XX scans
the barcode, and, if the barcode is successfully decoded, the illumination LED immediately turn off when the object
is removed.
Position the barcode anywhere within the MP70XX’s field of view.

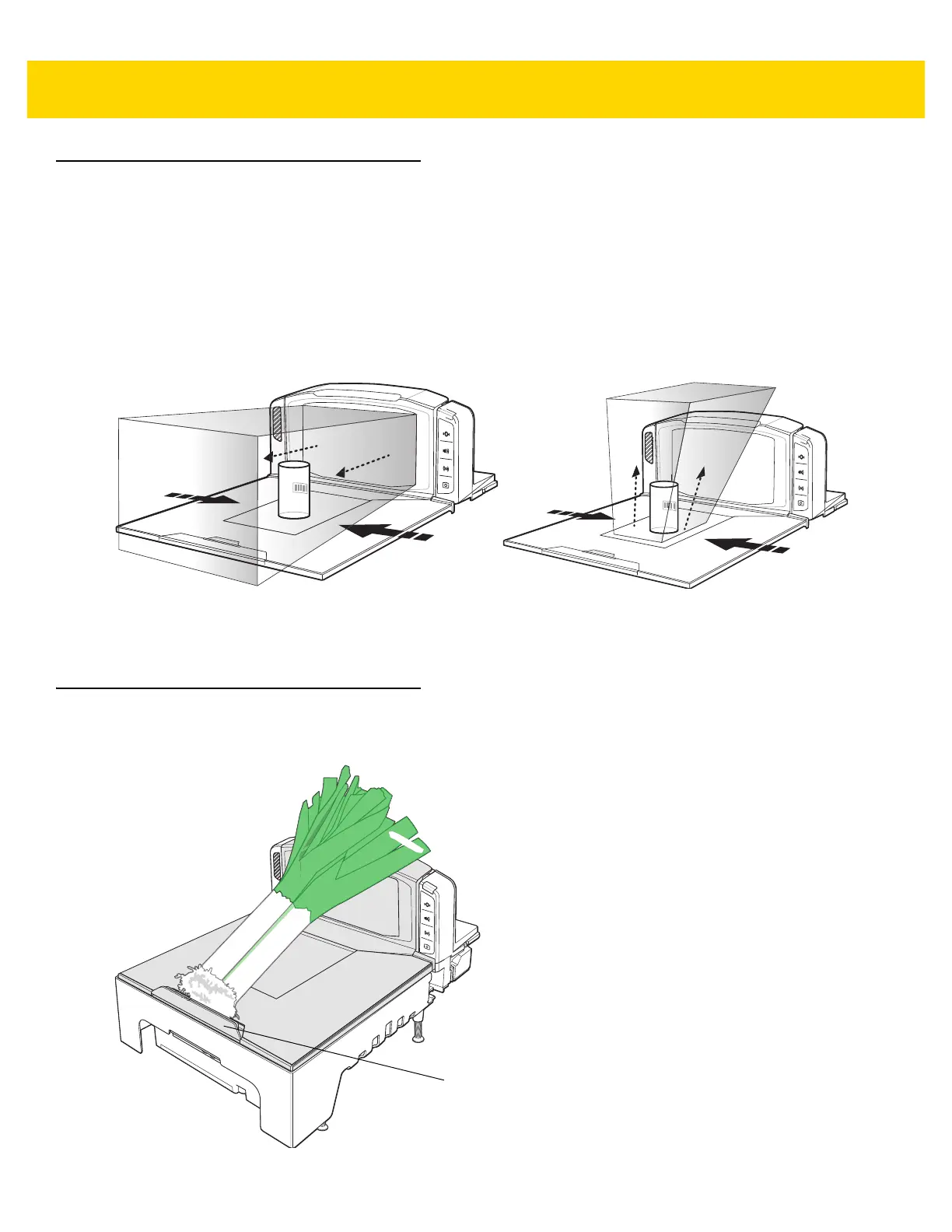

Figure 5-14 Scanning with the MP70XX
The scanner beeps to indicate a successful decode, and the green LED flashes momentarily (see
Table 5-1 on
page 5-18).
Weighing Items
For proper weighing, items should be placed fully on the shaded (gray) regions of the scanner.
Figure 5-15 Gray Weighing Region
