2 - 12 MP7000 Scanner Scale Integrator Guide
RS-232 Interface
Connecting
MP7000 Scanner Only or MP7200/7500 Scale with Single Cable Protocol
Use the RS-232 interface to connect the MP70XX to POS devices, host computers, or other devices with an
available RS-232 port (e.g., com port).

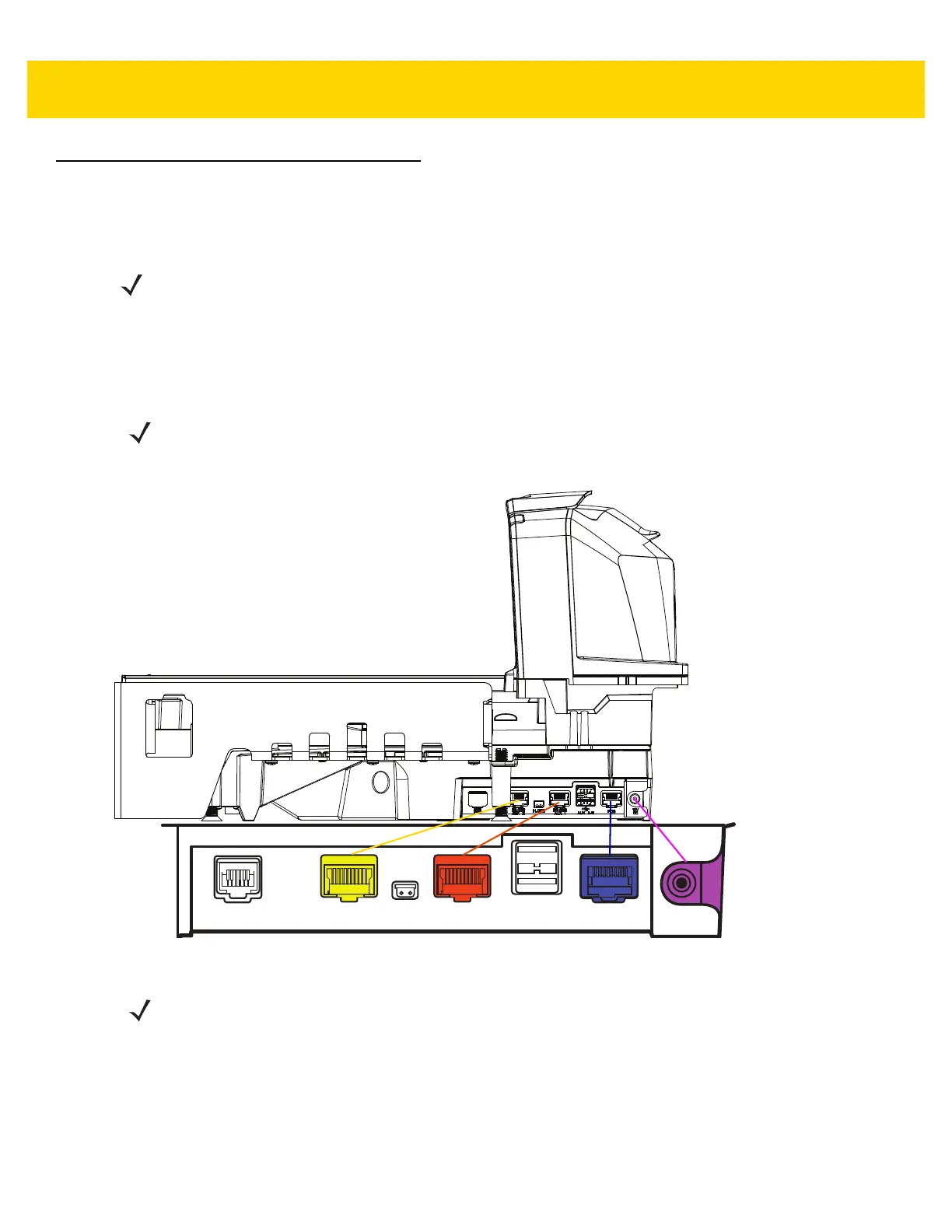

Figure 2-2 RS-232 Connections
NOTE For a list of supported scanner functionality by communication protocol Appendix E, Communication Protocol
Functionality
.
NOTE The MP70XX uses +/-6V RS-232 signal levels to accommodate long cable lengths, and increased noise
immunity.
NOTE Interface cables vary depending on configuration.
12V DC
POS
RS-232 AUX 1
RS-232 AUX 2

Zebra MP7000 Specifications

General

Type	Built-in bar code reader
Sensor type	CMOS
Scanner type	1D/2D
Linear (1D) barcodes supported	Codabar, Code 128, Code 32, Code 39, Code 93, Discrete 2 of 5, EAN 128, EAN-13, EAN-8, GS1 DataBar, GS1 DataBar Expanded, GS1 DataBar Omnidirectional, GS1 Databar Limited, Interleaved 2 of 5, JAN, MSI, Plessey, Trioptic, UPC-A, UPC-E
2D (matrix & stacked) barcodes supported	Aztec Code, Data Matrix, Han Xin, Micro QR Code, MicroPDF417, PDF417, QR Code
Input voltage	90 - 264 V
Input frequency	47 - 63 Hz
Power source type	AC, RS-232, USB
Power consumption (standby)	3 W
Power consumption (typical)	5.5 W
Standard interfaces	RS-232, RS-485, USB
Connectivity technology	Wired
Keys quantity	4 keys
Product color	Black, Stainless steel
LED indicators	Yes
Image formats supported	BMP, JPEG
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	20 - 95 %
Harmonized System (HS) code	84716070

Weight and Dimensions

Depth	102 mm
Width	292 mm
Height	128 mm
Weight	5700 g
