7.6 VECTORED PROCESSING (Continued)

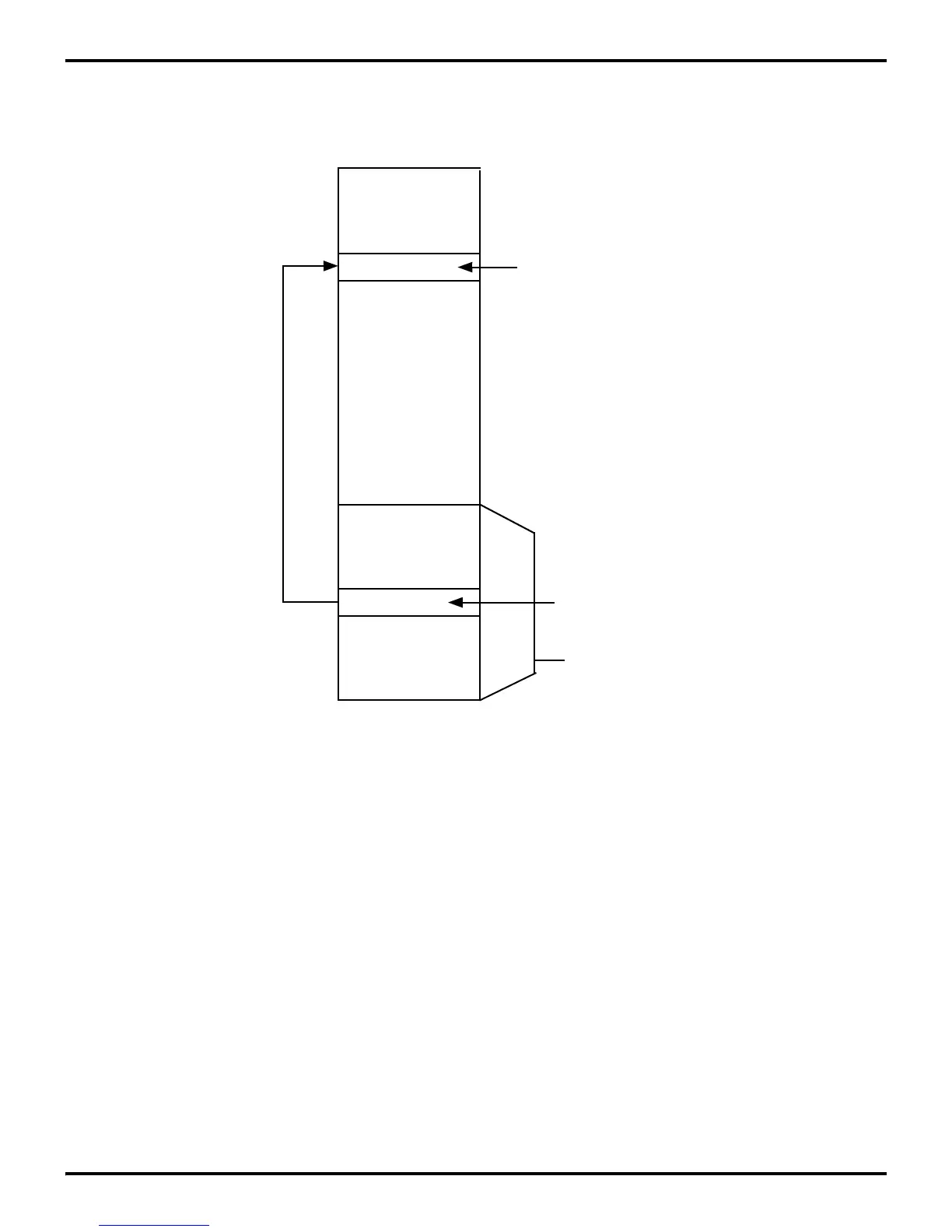

Figure 7-12. Interrupt Vectoring
PC HIGH Byte
FLAGS
Vector Selected
000CH
Program Memory
Interrupt
Service
Routine
By Priority Logic
Interrupt
Vector Table
0000H
XXFFH
