TIME DOMAIN INDUCED POLARIZATION (TDIP)
Section 9, Page 11 May 2002
After the selected number of cycles have been acquired (or
Escape
is pressed), the final display

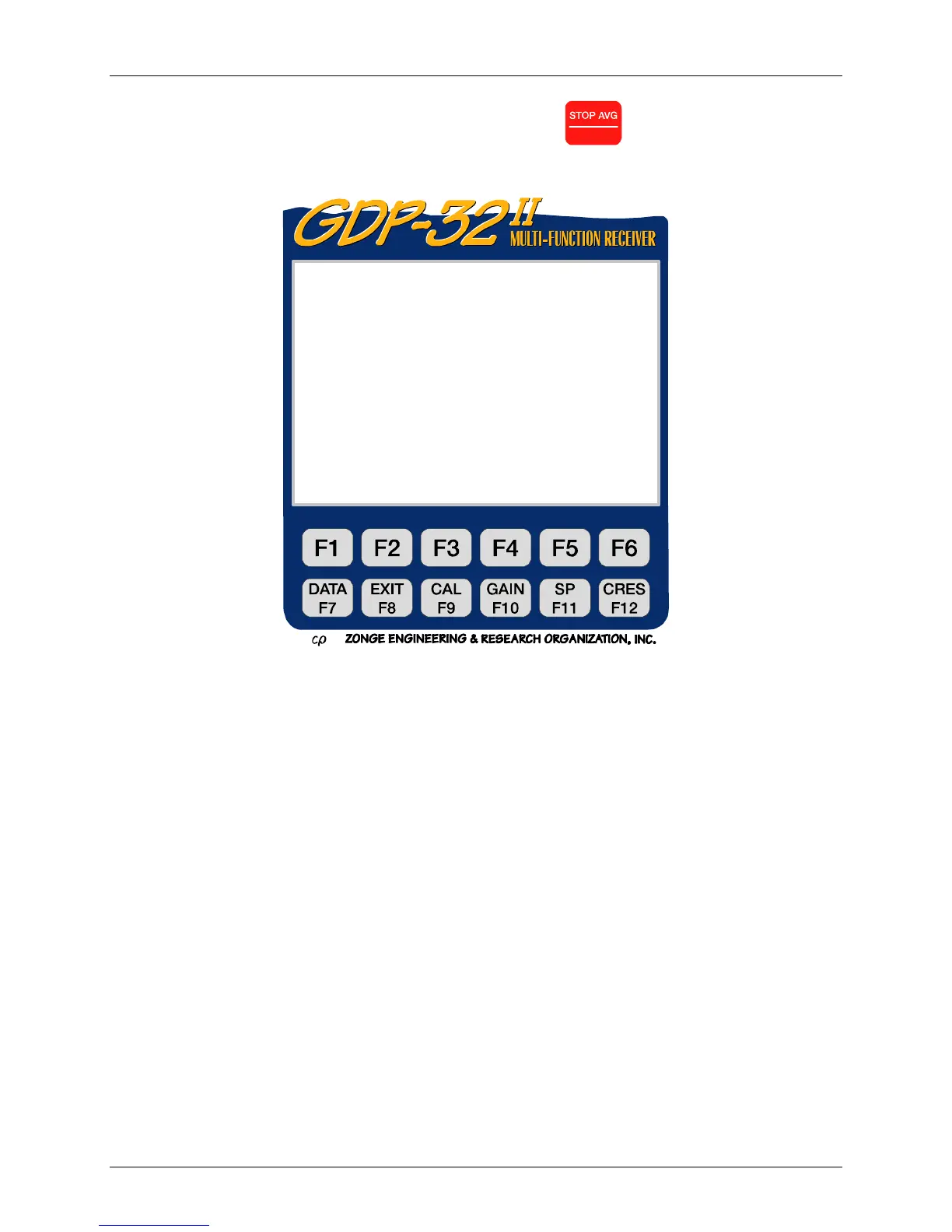

appears:
Screen Explanation
Vp Primary (ON) voltage, with magnitude calibration (located in the Time Domain
calibration cache) removed.
M Average chargeability in millivolt-seconds per volt or milliseconds.
U Apparent resistivity in ohm-meters.
0198 TDIP0613 11.7 08 Jan 18 11:36:42
Survey D-D Stacks 1/ 1
Tx 1 Rx 3 N OUT Isys 1u
1 Hz 4/ 4 Cycles Tx Curr 1
CH N Vp M rho GGGA SEM SP
1 ON 1 0.9999 0.0 1885 000O 0.02 -7.14
2 ON 3 1.0008 -0.0 7540 000O 0.01 -3.98
3 OFF
4 OFF
CONTINUE to save, ESC to discard
