TRANSIENT ELECTROMAGNETICS PROGRAM
Section 12, Page 9 October 2002

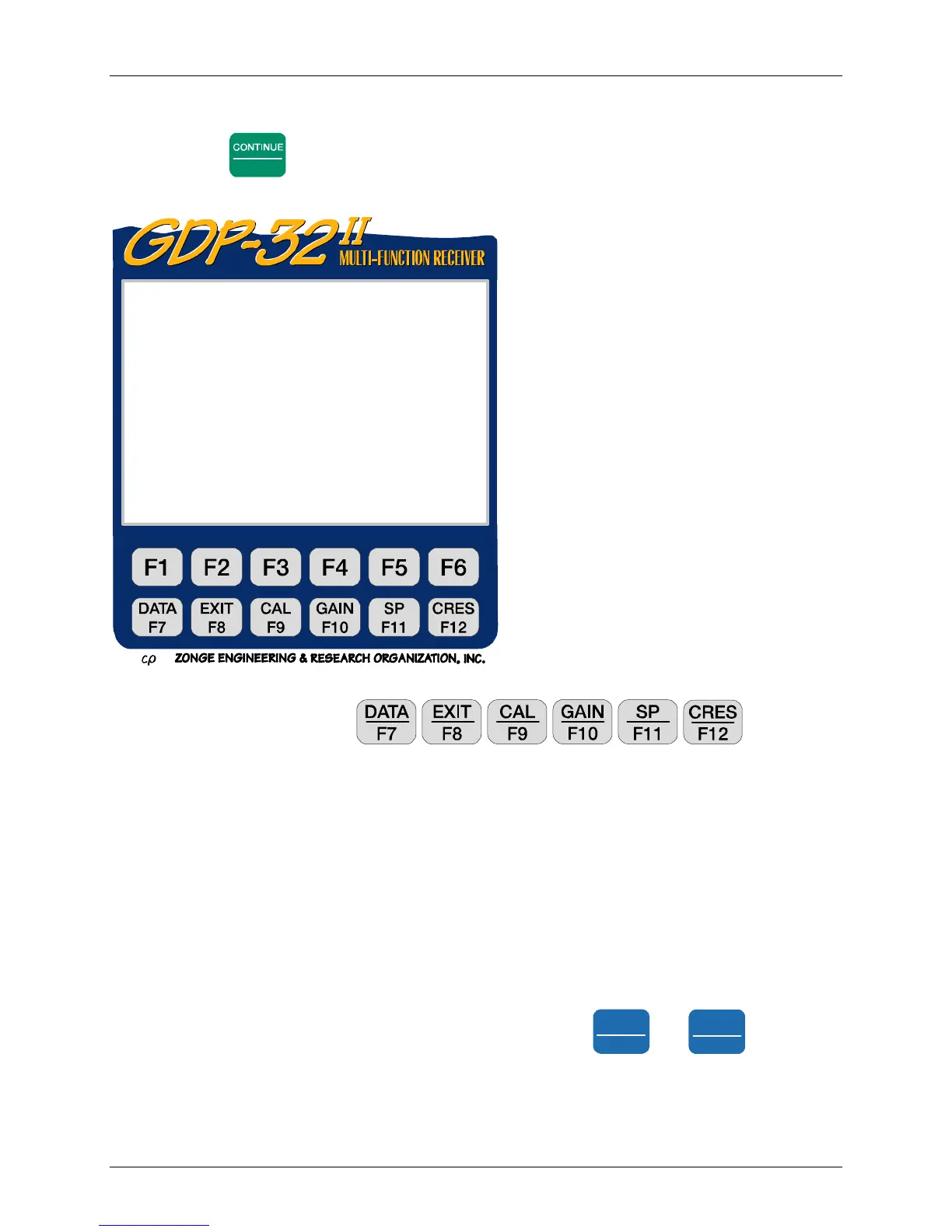

MENU 4:
Upon pressing
Enter
after the parameters are set up in Menu 3, the following screen will be
displayed. This is a combination of Menu 3 and Menu 4.
Å We have selected the In-Loop array
Å 10 sec indicates that sampling will
occur every 10 seconds in Continuous
mode. Not displayed for other
configurations
All function keys are active:
, , , , , .
Tx. T r a n s m i t t e r l o c a t i o n . T h e f i e l d f o r T x d e s i g n a t i o n i s ±
±±
±NNNNNNN with a floating
decimal point. Used for bookkeeping purposes in TEM.
Rx. R e c e i v e r l o c a t i o n . T h e f i e l d f o r R x i s ±
±±
±NNNNNNN with a floating decimal point.
Used for bookkeeping purposes in TEM.
Note: The powerline notch filter switch is DISABLED for TEM.
10 sec. If Continuous mode is selected, this field controls the sample interval. Here
sampling will take place every 10 seconds, and 32 cycles of 32 Hz data will be acquired
every 10 seconds. The operator must be careful to make sure that the sampling interval is
large enough or the number of cycles are small enough so that all of the cycles can be
obtained in the interval specified.
Hz. Frequency or repetition rate selection - use
Home
SELECT UP
or
SELECT DN
End
to change.
Changes both repetition rate and sample rate according to the chart in Section 12.7.
0094 TEM 0539 12.3 15 Mar 98 08:57:49
Survey INL
Tx 1 Rx 3 10 sec
32 Hz / 32 Cycles Tx Curr 1
indow 1.549m Delay 122.1u Alias 26 u
CH Station G0 G1 G2 Atn SP GGGA
1 Hz 1 1 1 1 OU* 0.00 000O
2 Hy 1 1 1 1 OU* 0.00 000O
3 Hx 1 1 1 1 OU* 0.00 000O
CONT-Set Gains, ESC-Prev Menu
TxON
