TRANSIENT ELECTROMAGNETICS PROGRAM
Section 12, Page 15 October 2002
After the selected number of cycles have
been acquired (or
Escape
is pressed), the

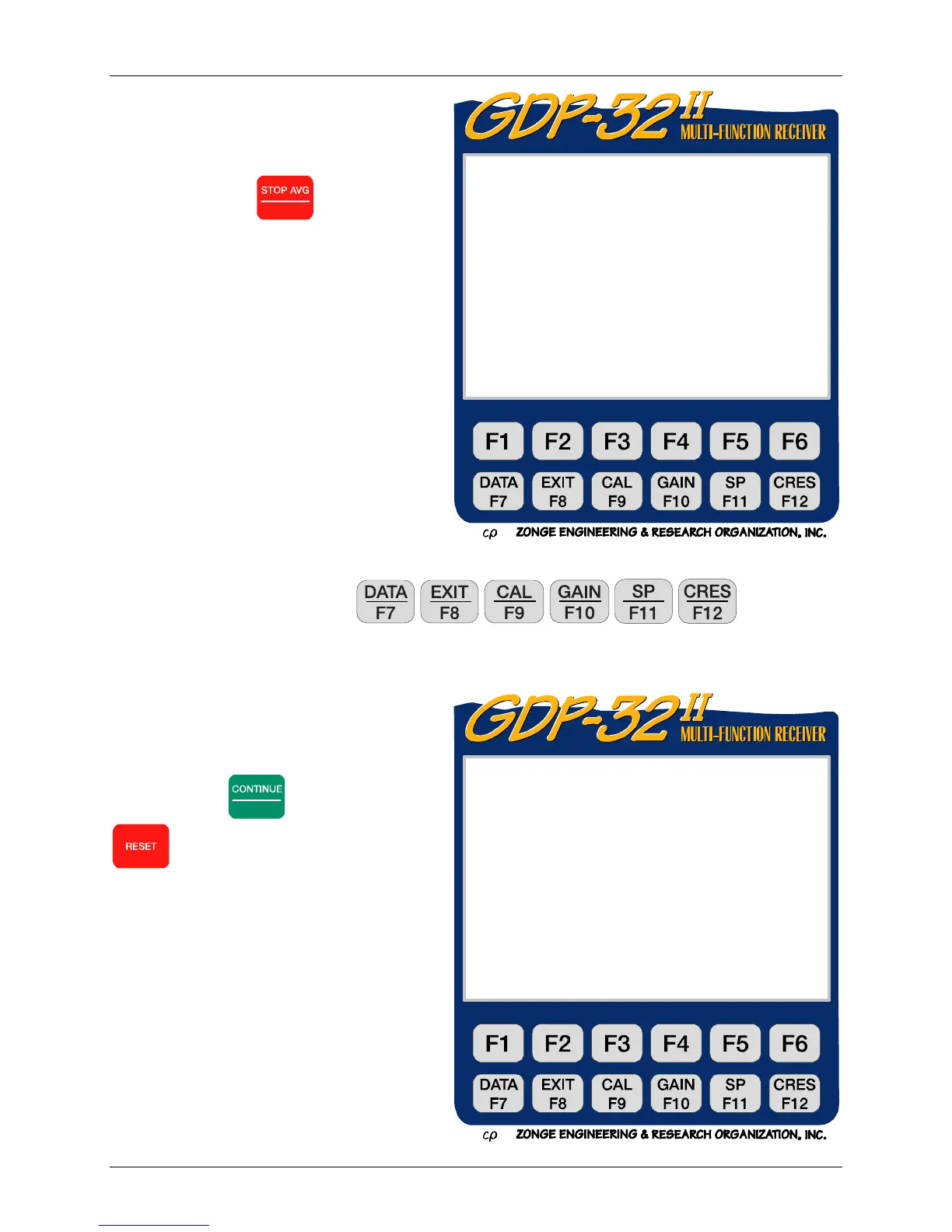

final display will appear as follows:
All function keys are active:
, , , , , .
V/A. Value of window magnitude for window number displayed.
rho. Apparent resistivity in ohm-meters for Hz component for window time displayed.
Upon pressing
Enter
to save the data (or
to discard the data), the only
difference in screens is the change in block
number (0095) and the bottom command
line.
0095 TEM 0539 12.3 15 Mar 98 08:57:49
Survey INL
Tx 1 Rx 3
32 Hz 128/ 128 Cycle Tx Curr 1
indow 1.549m Delay 122.1u Alias 26 u
CH Station V/A Wn Time rho GGGA
1 Hz 1 2.0731u 1.549m 0.871 060O
2 Hy 1 1.9526u 1.549m 060O
3 Hx 1 1.7043u 1.549m 060O
CONT-Take data, ESC-Prev Menu
0094 TEM 0539 12.3 15 Mar 98 08:57:49
Survey INL
Tx 1 Rx 3
32 Hz 128/ 128 Cycle Tx Curr 1
indow 1.549m Delay 122.1u Alias 26 u
CH Station V/A Wn Time rho GGGA
1 Hz 1 2.0731u 1.549m 0.871 060O
2 Hy 1 1.9526u 1.549m 060O
3 Hx 1 1.7043u 1.549m 060O
CONTINUE to save, RESET to discard
