NATURAL SOURCE MAGNETOTELLURICS
Section 13, Page 9 May 2002
MENU 3C
NOTE: For best results, always use
an external signal conditioner with low
noise preamplifiers and frequency
bandwidth limiting capability, such as
the SC-8 Signal Conditioning unit.

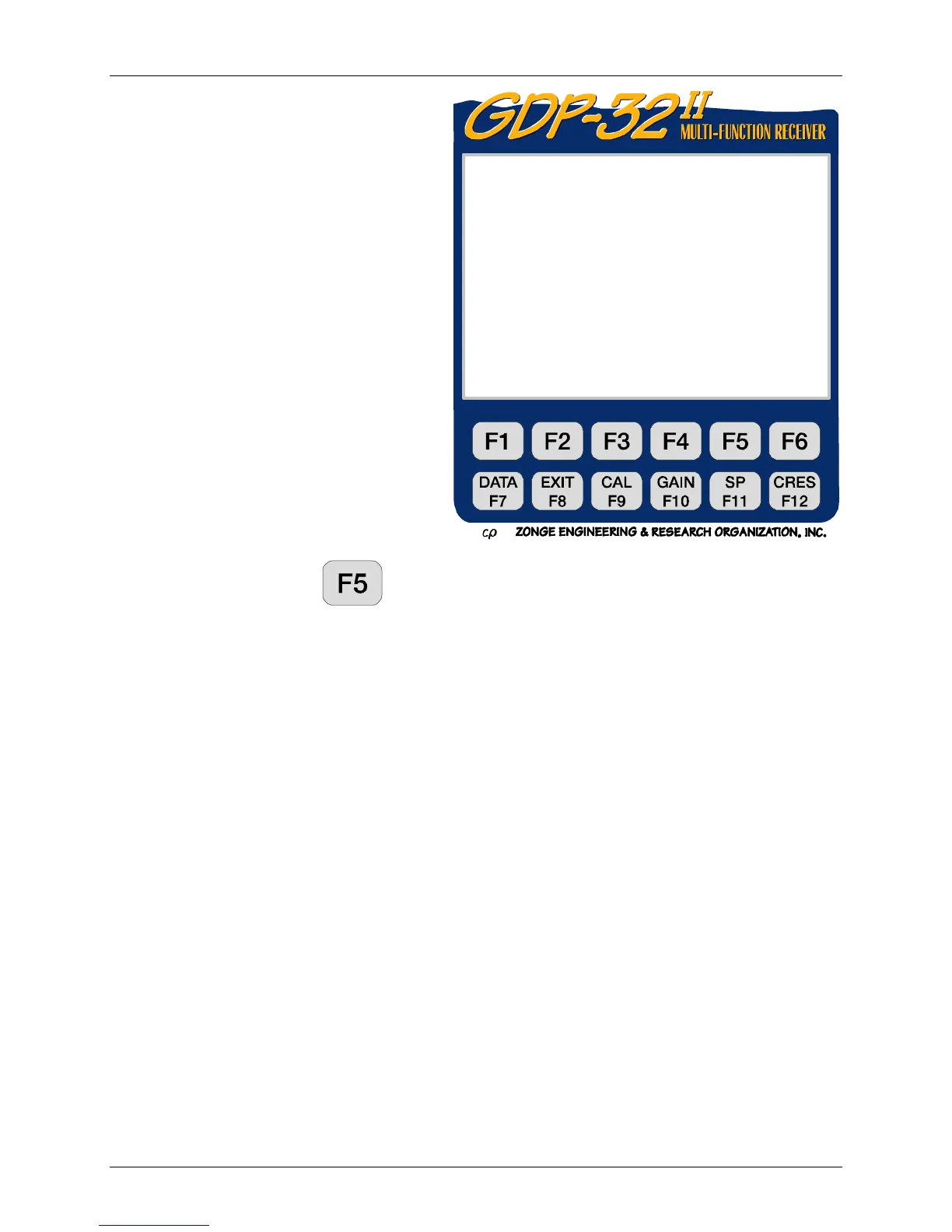

Ch Info. By pressing
, you can access data on the analog cards that have passed
QC. For example:
1LoPass Notch+60,3-5,9 S/N 67Passed
2LoPass Notch+60,3-5,9 S/N 127Passed
3LoPass Notch+60,3-5,9 S/N 256Passed
Here LoPass indicates the input amplifier configuration, the powerline notch filter is a
60/180/300/540 Hz filter, (the + indicates a modification level), and the three board
serial numbers are 67, 127, and 256.
Note that a number (0097) is visible before the program designator (AMT 0538). This
number is the label of the last data block written to the data cache. The next time a block of
data is written to the cache, it will be numbered 0098.
0097 AMT 0538 15 Mar 98 08:53:47
OPER JOHN DOE TX ID Z-30 A-SP 100
JOB 94007 LINE AJO ROAD N SPREAD 1
Ch External Amp Ch External Amp
1 Ex 32 9 OFF
2 Hy 8 10 OFF
3 Ey 32 11 OFF
4 Hx 8 12 OFF
5 Hz 8 13 OFF
6 Hx 8 14 OFF
7 Hy 8 15 OFF
8 OFF 16 OFF
CONTINUE to save changes; ESCAPE to exit
