NATURAL SOURCE MAGNETOTELLURICS
May 2002 Section 13, Page 16

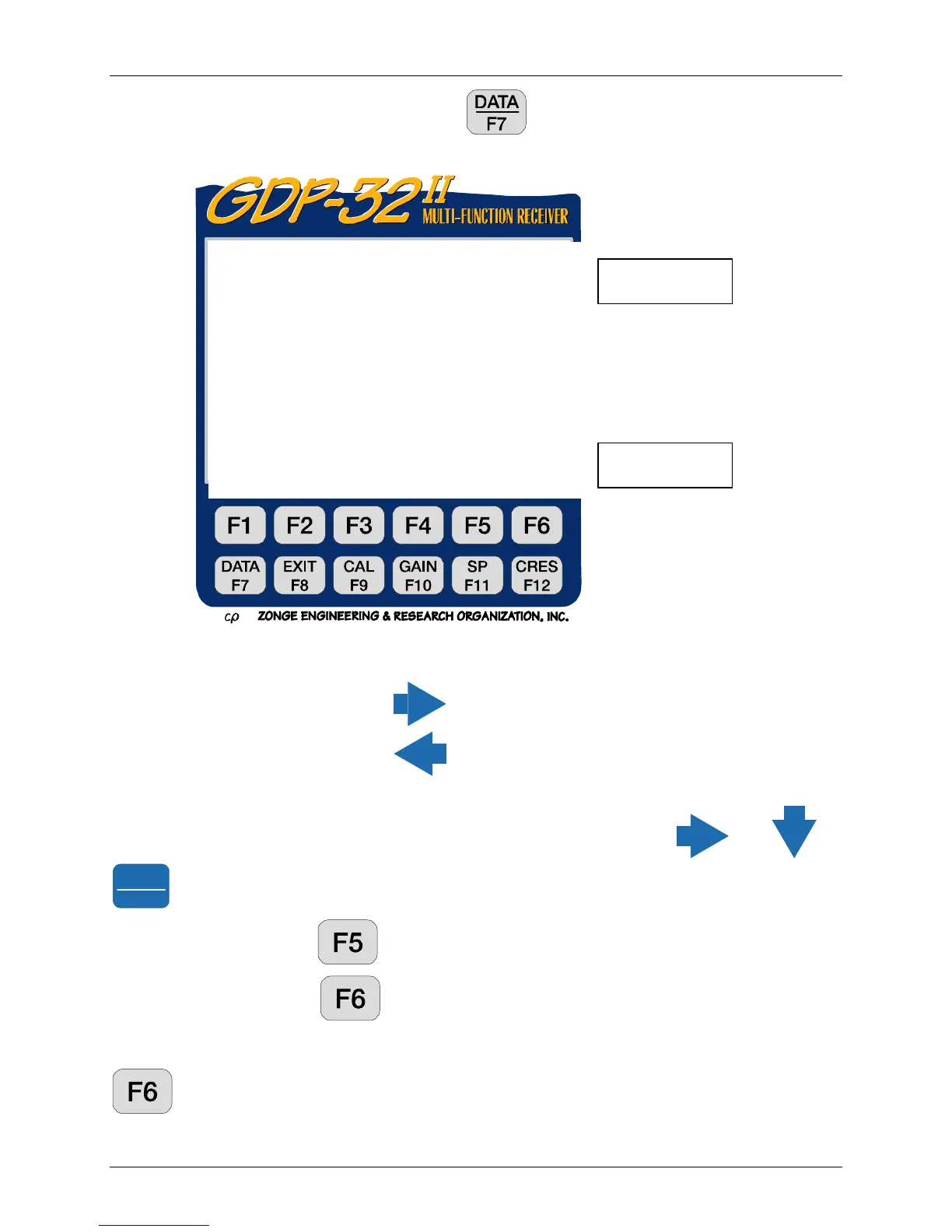

If you want to view the stored data, press the key. It will display the last stack taken.
See Section 7 for an explanation of the data mode. The data display is in the following format:
The BURSTS saved, SP, contact resistance values, pre-amp gain, variable A-spacing and
reference channel have been saved, but are off of the screen to the right.
To view these numbers press several times to move to the right,
or press
to move to the left.
Some of the data for coherencies and phase are off the screen towards the right, and frequency,
magnitudes and resistivities are off the screen toward the bottom. Use and or
Pg Dn
NEXT FIELD
to view these data.
Plot Data. By pressing you get into the plot routines.
Skip Flag. By pressing an 'x' is placed between the version number and the date in
the header for the block being viewed. This flag is recognized by the plot routines and the
flagged data will be skipped when averaging multiple blocks for plotting. Repeated pressing of
will remove and replace the 'x'.
Block: 0405 Total: 0498
AMT 0538 94-03-24 09:10:11 12.1v VEC
Tx 1 Rx 3 N OUT
.016 Hz 8 B ursts 1 Stack 8 Samples
1Ex 16.2026u 0.99816.89M444O 8 13.55 0 1 25.0
2Hy 140.0881u1088.616.98M444O 8 7.86 0 1 2
3Ey 36.1684u 0.99715.40M444O 8 5.65 0 1 25.0
4Hx 240.0917u1112.215.48M444O 8 6.36 0 1 4
freq ExMag HyMag1 xyRho1 xyRho2 xyPhz xyCC
.0938 6.2026u 0 .0881u 16.89M 16.96M 1088.6 0 .99 8
.1250 5.2630u 0 .0580u 21.03M 21.09M 970.2 0.999
freq EyMag HxMag1 yxRho1 yxRho2 yxPhz yxCC
.0938 6.1684u 0 .0917u 15.40M 15.48M 1112.2 0 .99 7
.1250 5.1155u 0 .0599u 18.66M 18.70M 987.2 0.999
Select Block Plot Skip
Block 0404 Data Flag
Off Screen, use
arrows to see
Off Screen, use
down-arrow to see
