GDP-32
II
INSTRUCTION MANUAL
May 2002 Section 17, Page 18

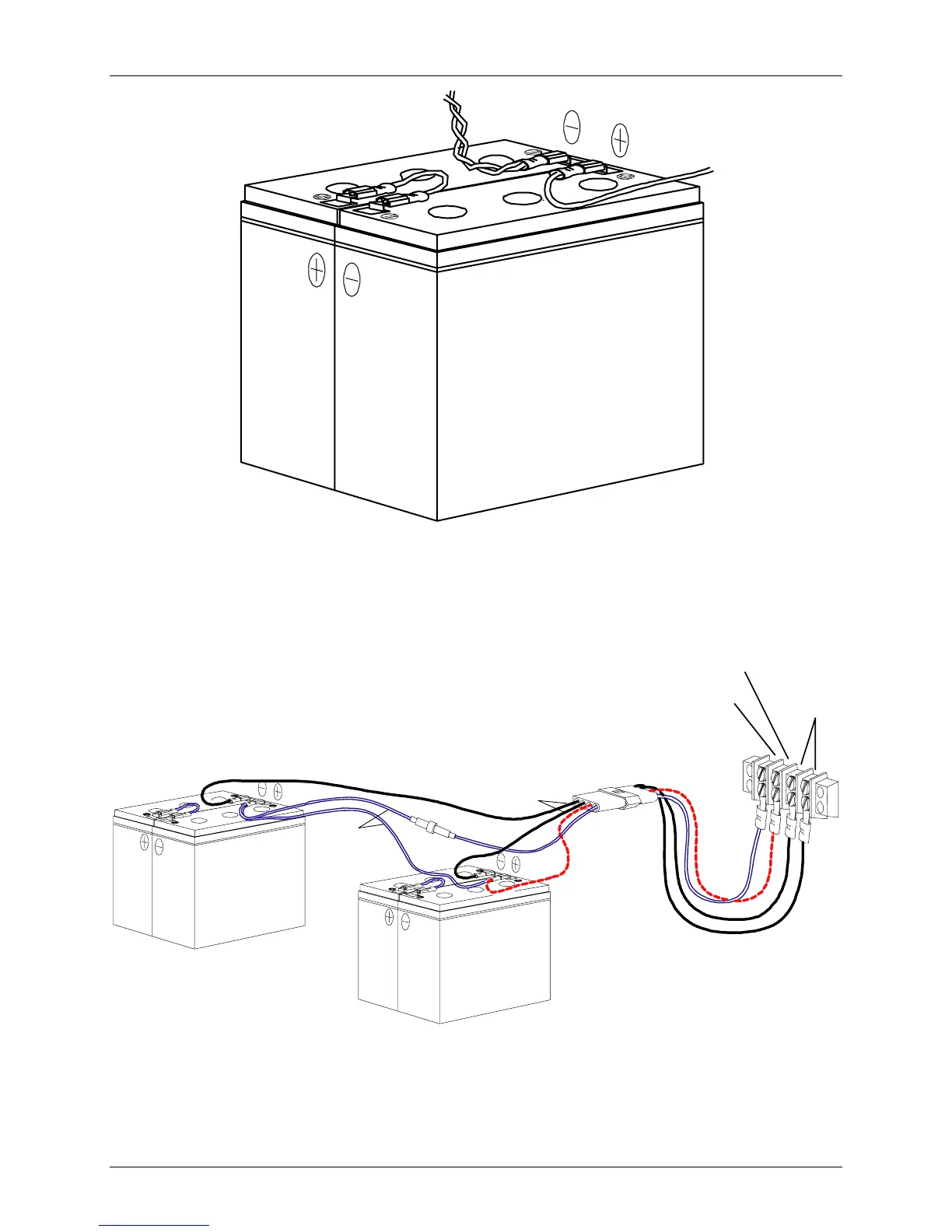

Figure 17.4 (a) - Wiring configuration for batteries in the small case GDP-32
II
T
Figure 17.4 (b) - Wiring configuration for batteries in the large case GDP-32
II
Fuse
Molex Connector
(03-09-1042s/2042p 4-pin)
Terminal Block
6v batteries 4-each
Yuasa NP10-6 10Ah
+12v to Electronics (Red)
From Battery Charger (Blue)
GND
(Black)
Blue
Red
Black
To Next Page
