FAST TRANSIENT ELECTROMAGNETICS PROGRAM
Section 19, Page 5 October 2002
Menu 3
Menu 3, as with all of the data collection
programs in the GDP-32
II
, allows
individual channels to be enabled, station
numbers to be entered for each channel,
and configuration information for the
channels (Hx, Hy, or Hz) to be entered.
Below is a configuration for making
vertical magnetic field measurements at
three separate stations.

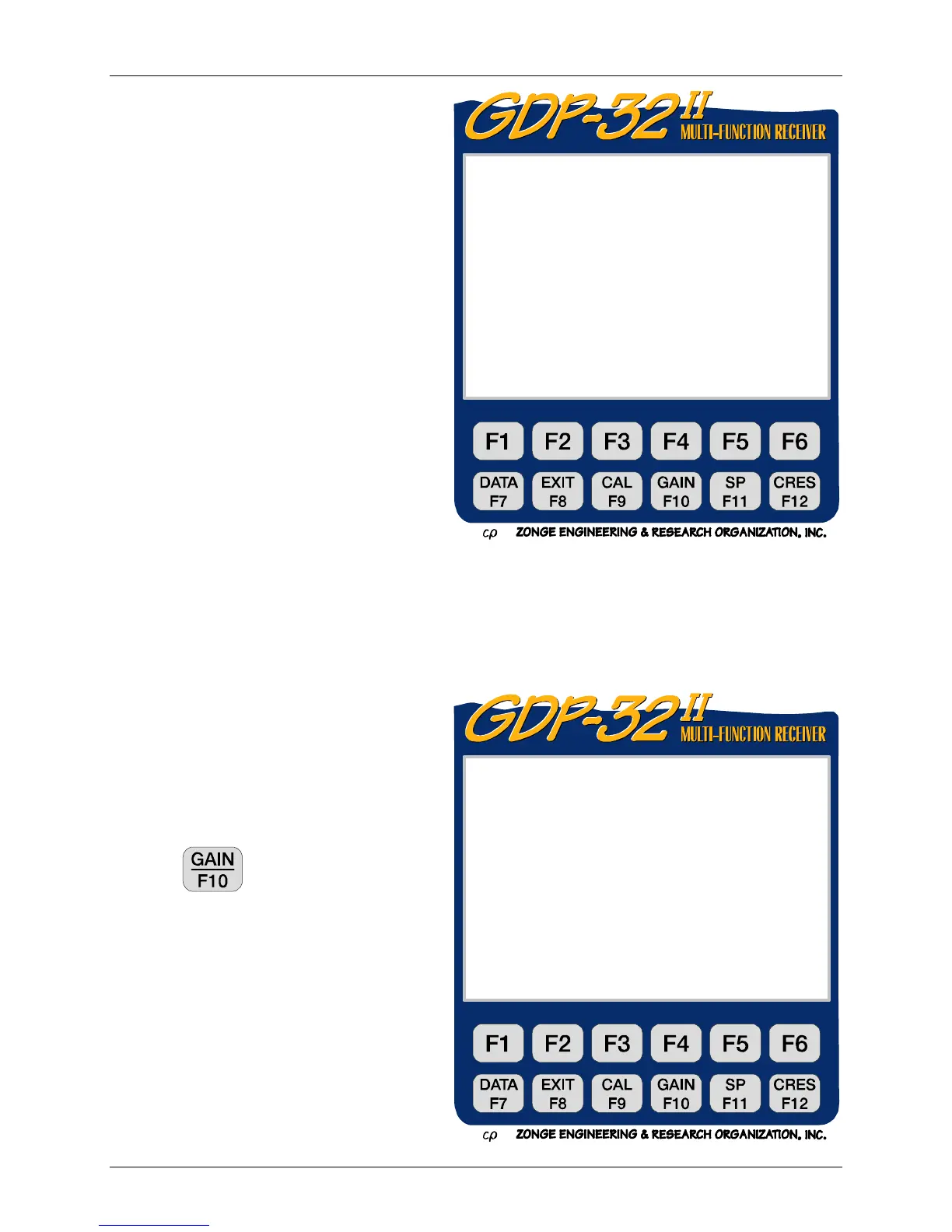

Menu 4
Menu 4 is the primary data collection
screen. Control over the configuration of
the NT-32 transmitter is gained though
pressing
key while in this menu.
The other portions of this menu are
described in detail in Section 12.5.
0094 NANOTEM 0610 15 Mar 98 08:57:47
OPER JOHN DOE TX ID 1 A-SP 100
JOB 94001 LINE 1 N SPREAD 1
CH Station
1 Hz 1
2 Hz 2
3 Hz 3
Enter channel parameters
Ch Info
0094 NANOTEM 0610 12.3v 15 Mar 98 08:57:49
Survey In loop Stacks 1
Tx 1 Rx 3 NT32 Battery: 12.0 V
32 Hz 128/ 128 Cycles NT32 Current: 1.1
indow 1.549m Delay 122.1u Alias 1 u
CH Station V/A Wn Time rho GGGA
1 Hz 1 2.0731u 1.549m 0.871 060O
2 Hy 1 1.9526u 1.549m 060O
3 Hx 1 1.7043u 1.549m 060O
CONTINUE-Set Gains, Esc-Prev Menu
To Next Page
