GDP-32
II
INSTRUCTION MANUAL
October 2002 Section 19, Page 6
Gain/F10 SubMenu

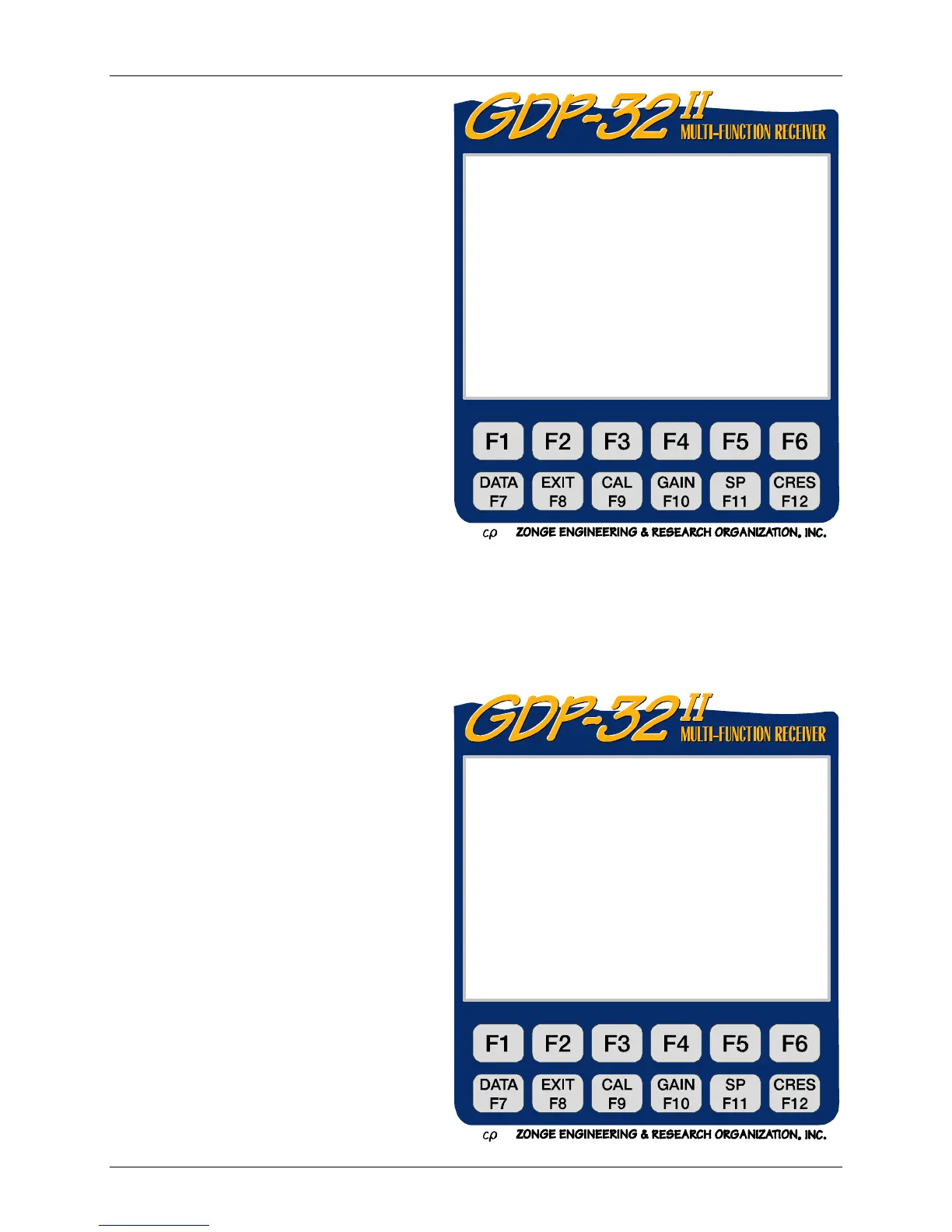

The setup menu for the NT-32 transmitter
can be accessed by pressing 8. This will
bring up the NT-32 configuration menu.
NT-32 Configuration Menu
Loop Size: Transmitter loop side in meters
Loop Current: Adjust output current
(measured in Amperes)
Damping: Damping resistance in ohms,
determined by the Tx loop size. Refer to
the charts on the next page.
0094 NANOTEM 0610 12.3v 15 Mar 98 08:57:49
Survey In loop Stacks 1
Tx 1 Rx 3 NT32 Battery: 12.0 V
32 Hz 128/ 128 Cycles NT32 Current: 1.1
indow 1.549m Delay 122.1u Alias 1 u
1) Turn off full automatic gain
2) Automatic Gain
3) Manual Gain
4) Clear and unfix all gains and SP
5) Adjust SP
6) Turn on noisy gain mode
7) Set number of repeats
8) NT32 Setup
(Press 1-8, ESCAPE)
NANOTEM 0610 12.3v 15 Mar 98 08:57:49
Loop Size: 20
Loop Current: 1.1
Damping: 150
To Next Page
