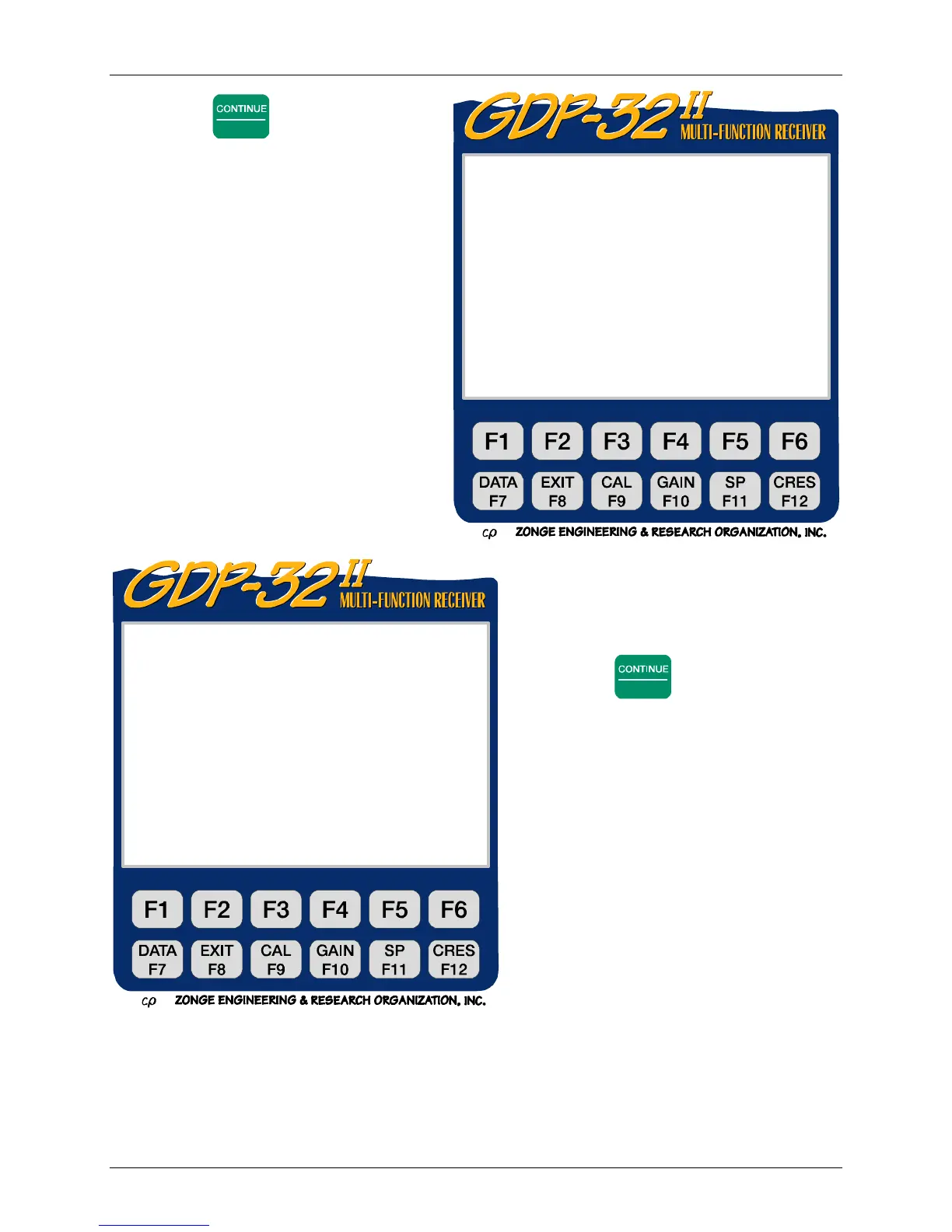

GDP-32
II
INSTRUCTION MANUAL
May 2002 Section 6, Page 18
6. Press
Enter
.
7. Continue to follow screen
instructions for external
connections: (see Figure 6.4)
8. Press
Enter
when the connections
have been completed.
ZONGE ENGINEERING 11.8 04 Jan 18 16:38:23
GDP32II320
Turn on XMT and GDP. Then wait 1 hour.
Set XMT to 1 Hz
and 100% DUTY CYCLE.
ZONGE ENGINEERING 11.0 04 Jan 18 16:38:37
GDP32II320
Connect sync cable between XMT and GDP.
Connect calibrate output of XMT to CH 2
(RED to RED, BLACK to BLACK)
Connect CAL o utput of GDP to CH 1
(Cal+ to RED, Cal- to BLACK)
Set meter switches in lid of GDP to
Monitor Channels 1 and 2.
CONTINUE: Next menu, ESCAPE: Prev. menu
