Zonge GDP-32 - Page 84

GDP-32
II
INSTRUCTION MANUAL
May 2002 Section 6, Page 24

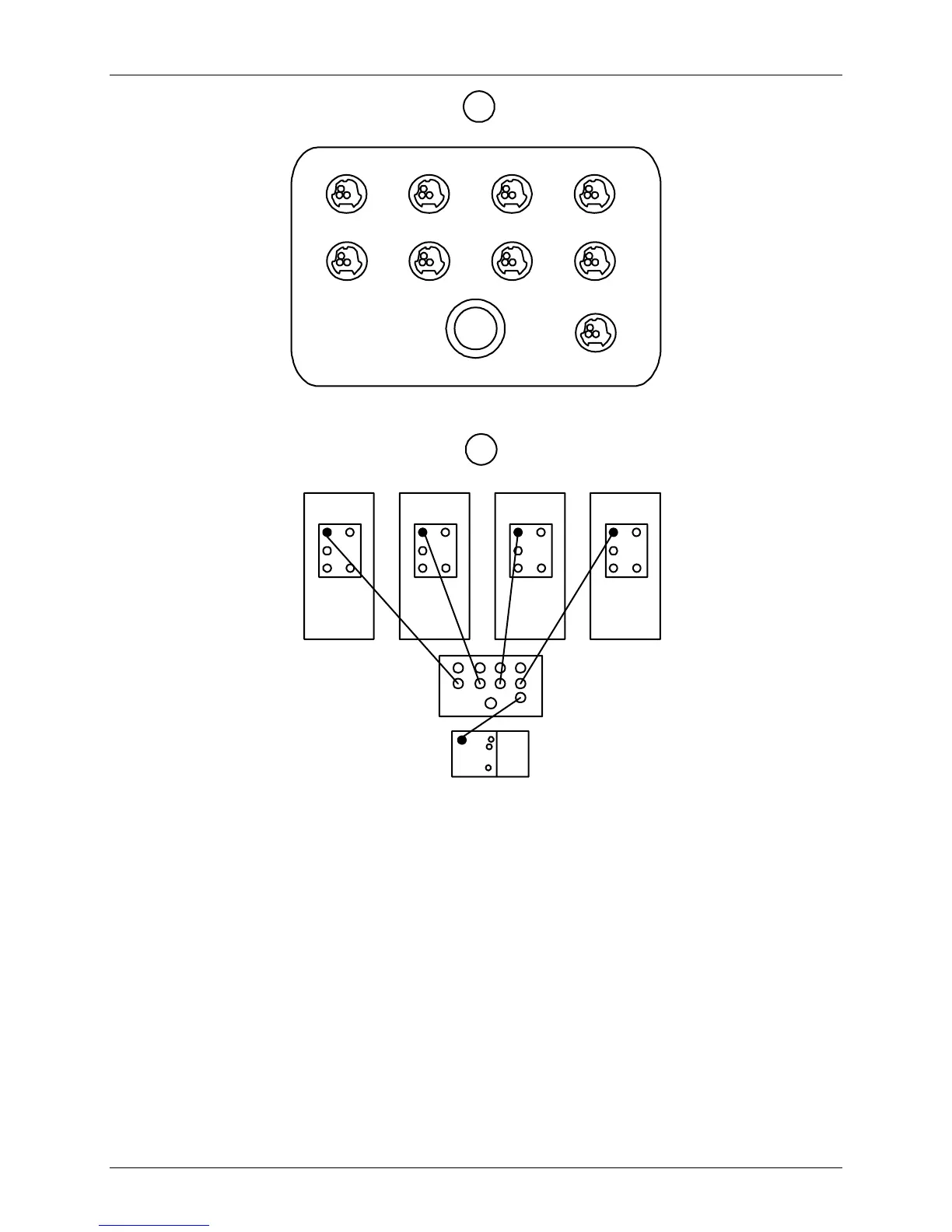

Figure 6.6 (a) - MULT/SY-32 Synchronization Box
Figure 6.6 (b) - Synchronizing a system of multiple receivers
SC-8 Serial Input
Transmitter I/O
GDP-4 GDP-3 GDP-2 GDP-1
XMT-32S
MULT/SY-32
A
Transmitter
Controller
Sync Box
B
