Using the control panel 107
Fault Logger option
In the Fault Logger option, you can:
• view the drive fault history
• see the details of the most recent faults
• read the help text for the fault and make corrective actions
• start, stop, change the direction and switch between local and remote control.

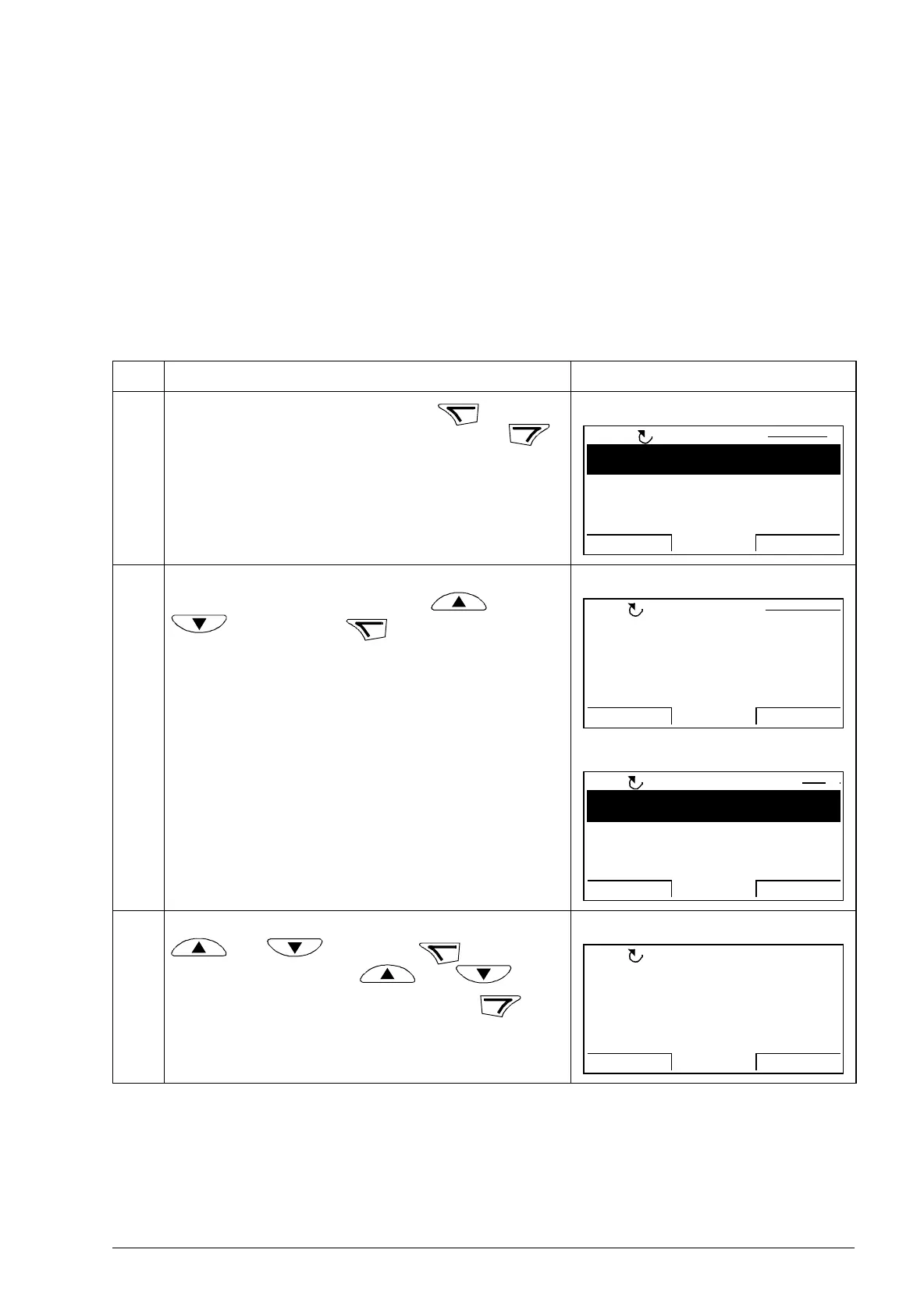

 Viewing faults
Step Action Display
1. Go to the Main menu by pressing if you are
in the Output mode, otherwise by pressing
repeatedly until you get to the Main menu.
2. Go to the Fault Logger option by selecting FAULT
LOGGER on the menu with keys and
, and pressing .
If there are no faults in the fault history,
corresponding text will be shown.
If there is a fault history, the display shows the fault
log starting with the most recent fault. The number
on the row is the fault code according to which the
causes and corrective actions are listed in
appropriate firmware manual.
3.
To see the details of a fault, select it with keys
and , and press .
Scroll the text with keys and .
To return to the previous display, press .
MENU
EXIT
PARAMETERS
ASSISTANTS
CHANGED PAR
EXIT ENTER
00:00
MAIN MENU 1LOC
ENTER
No fault history
found
MESSAGE
LOC
36: LOCAL CTRL LOSS
29.04.08 10:45:58
FAULT LOGGER
EXIT
DETAIL00:00
LOC
1
DETAIL
EXIT
TIME
10:45:58
FAULT CODE
36
FAULT CODE EXTENSION
LOCAL CTRL LOSS
EXIT
DIAG
00:00
LOC
