Dimension drawings 353
Mains chokes – CHK-0x

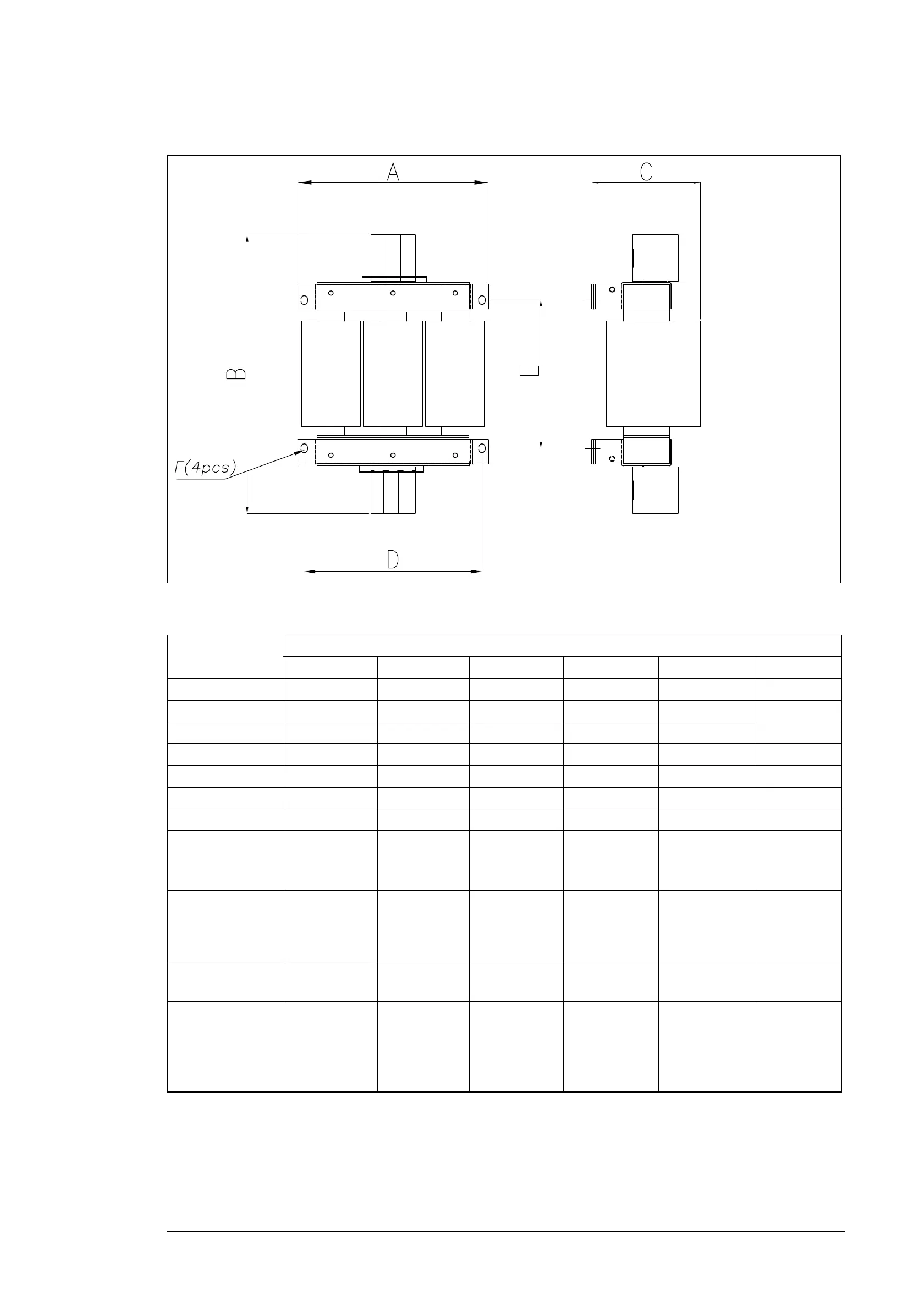

 Mains choke – CHK-xx dimensions
Parameter Choke type
CHK-02 CHK-03 CHK-04 CHK-05 CHK-07 CHK-08
dim A mm (in.) 150 (5.91) 150 (5.91) 150 (5.91) 207 (8.15) 249 (9.80) 249 (9.80)
dim B mm (in.) 175 (6.89) 175 (6.89) 175 (6.89) 272 (10.71) 326 (12.83) 346 (13.62)
dim C mm (in.) 86 (3.39) 100 (3.94) 100 (3.94) 154 (6.06) 167 (6.57) 167 (6.57)
dim D mm (in.) 105 (4.13) 105 (4.13) 105 (4.13) 193 (7.60) 235 (9.25) 235 (9.25)
dim E mm (in.) 148 (5.83) 148 (5.83) 148 (5.83) 118 (4.65) 125 (4.92) 147 (5.79)
F screw size M5 M5 M5 M6 M6 M6
Weight kg (lbs) 3.8 (8.4) 5.4 (11.9) 5.2 (11.5) 10 (22) 14 (31) 16 (35)
Wire size –
Main terminals
mm
2
(AWG)
0.5 … 10
(20…6)
0.5 … 10
(20…6)
0.5 … 10
(20…6)
1.5 … 35
(16…0)
25 … 50
(6…0)
25 … 50
(6…0)
Tightening
torque – Main
terminals
N·m (lbf·in)
1.5 (13) 1.5 (13) 1.5 (13) 3.2 (28) 6 (53) 6 (53)
PE/Chassis
terminals
M5 M5 M5 M6 M6 M8
Tightening
torque –
PE/Chassis
terminals
N·m (lbf·in)
4 (35) 4 (35) 4 (35) 8 (70) 8 (70) 15 (135)
