68 Electrical installation

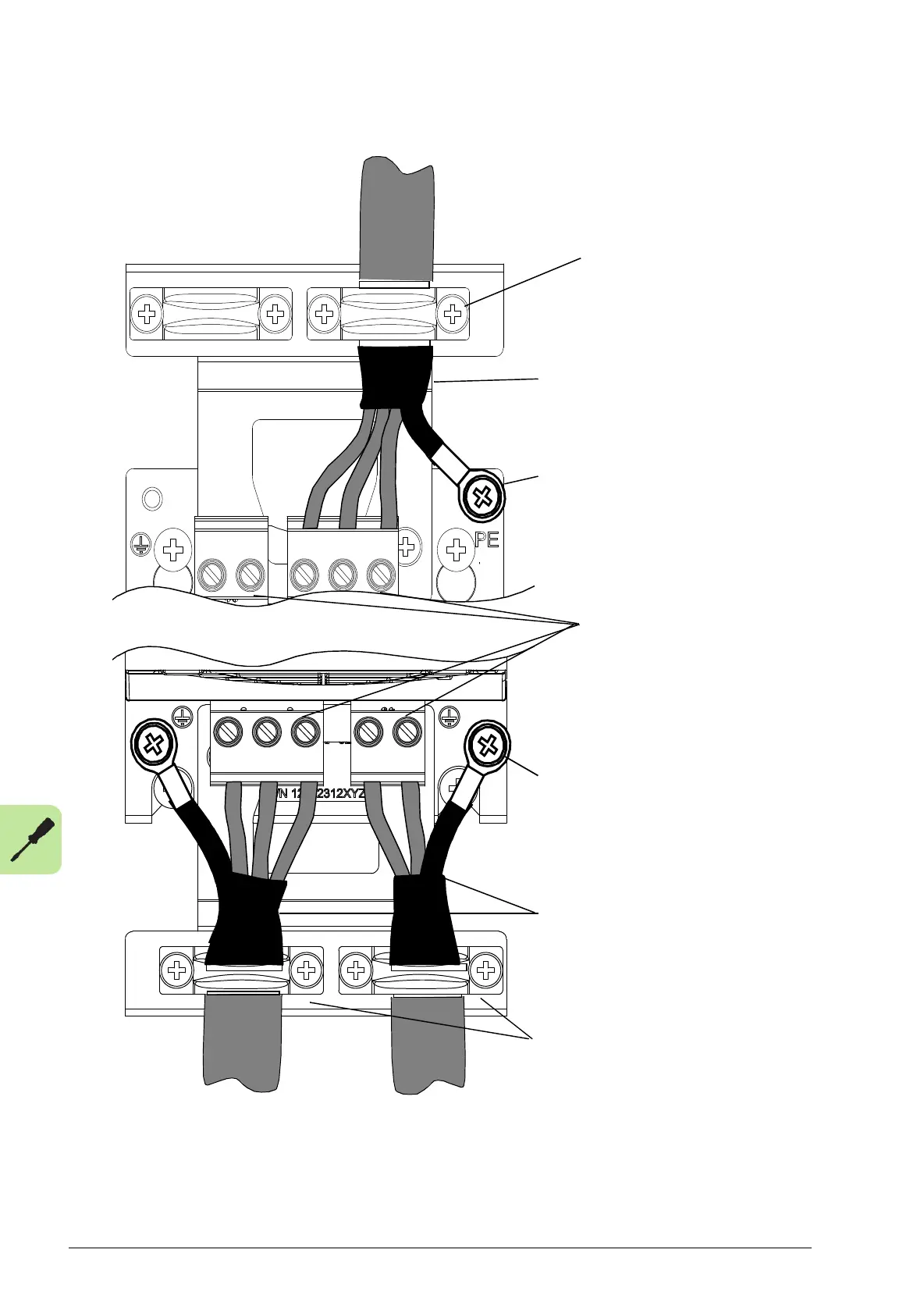

 Power cable connection – frame size B
Supply
cable
Below cable clamp, cover
bare shield with insulating
tape
Cable clamp on bare shield
1.5 N·m (13 lbf·in)
Above cable clamp, cover
bare shield with insulating
tape
Cable clamp on bare shield
1.5 N·m (13 lbf·in)
Braking resistor cable
1.5 N·m (13 lbf·in)
0.5 … 0.6
(4.4 … 5.3 lbf·in)
1.5 N·m (13 lbf·in)
Motor cable
U1 V1 W1
U2 V2 W2 R+R-
U2 V2 W2
R-
R+
