64 Electrical installation
Connecting the power cables

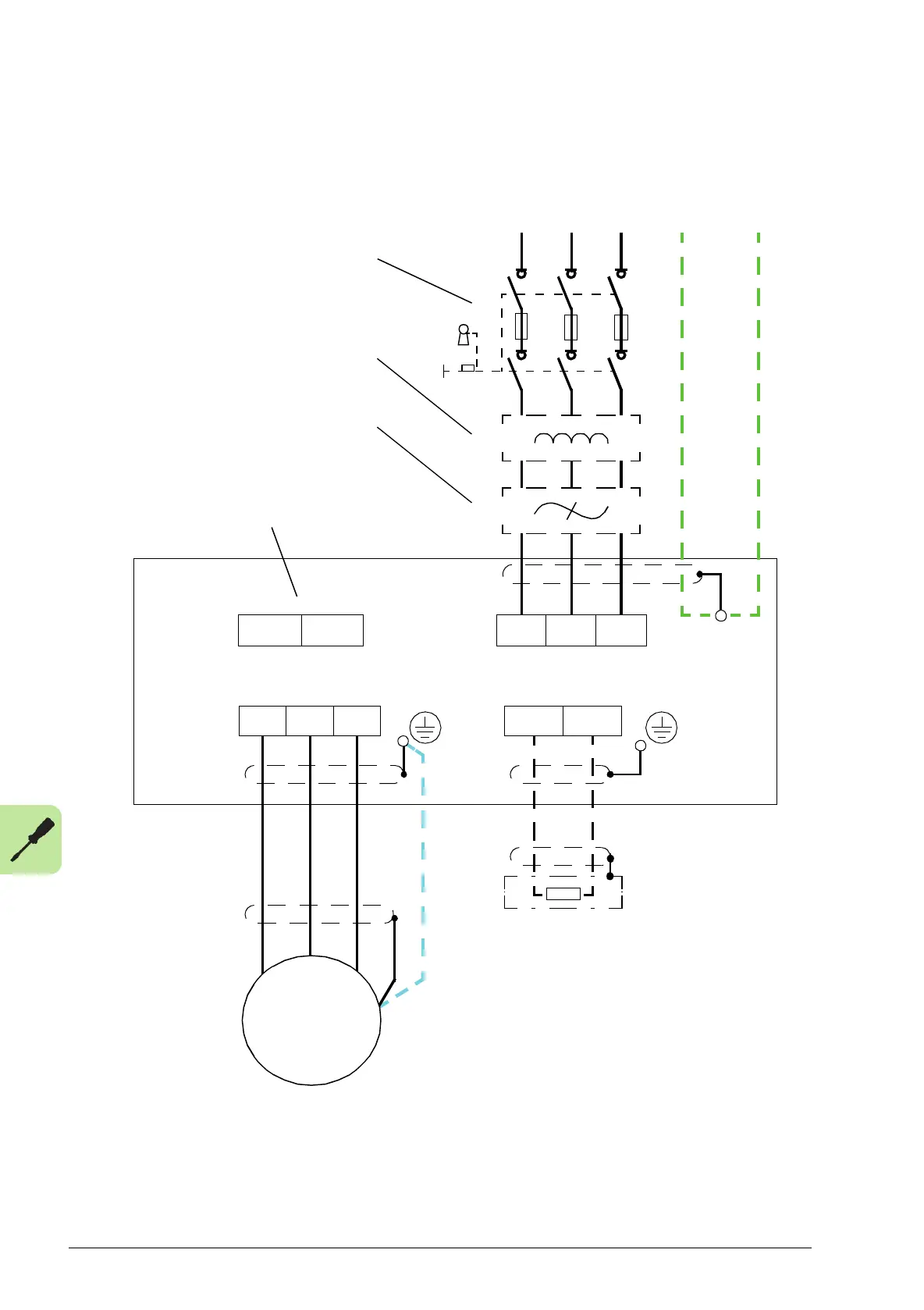

Connection diagram
Notes:
• If shielded supply (input) cable is used, and the conductivity of the shield is not sufficient (see section Motor
cable shield on page 52), use a cable with a ground conductor (1) or a separate PE cable (2).
• For motor cabling, use a separate ground cable (3) if the conductivity of the cable shield is not sufficient (see
section Motor cable shield on page 52) and the cable has no symmetrical ground conductors.
1)
(PE) (PE)
3)
PE
For alternatives, see Planning
the electrical installation:
Selecting the supply
disconnecting device (page 48)
.
Optional brake resistor (see
chapter Resistor braking
[page 343])
L1 L2 L3
UDC+ UDC–
R– R+
2)
U2 V2 W2
U1 V1 W1
3
~
Motor
V1
W1U1
ACL30
CHK-xx mains choke (optional). See
chapter Mains chokes (page 335).
JFI-xx EMC filter (optional). See
chapter EMC filters (page 339).
PE
The UDC+/UDC– connectors can be
used for common DC configurations.
See page 70.
