Using the control panel 99

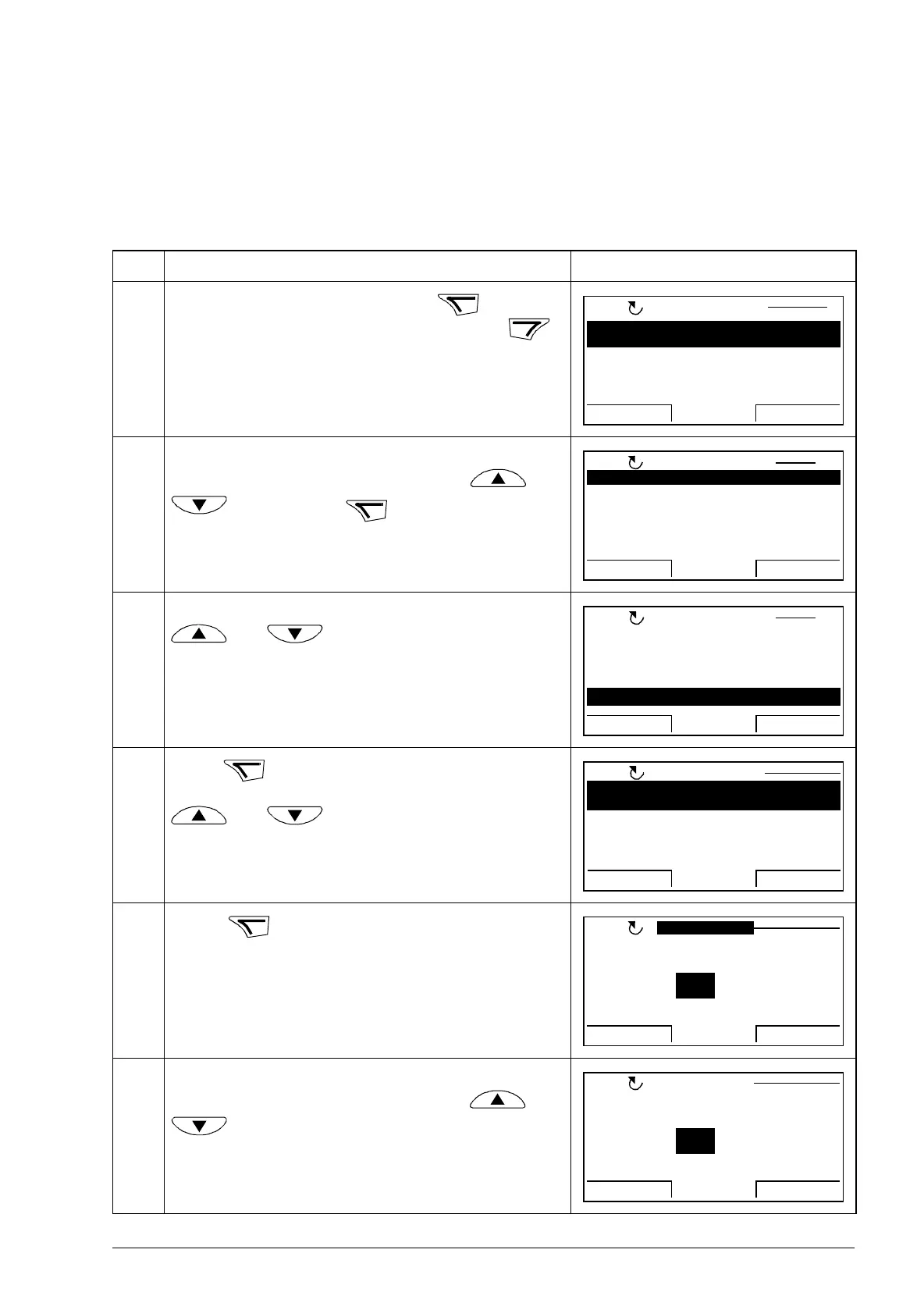

 Changing the value of value pointer parameters
In addition to the parameters shown above, there are two kinds of pointer
parameters; value pointer parameters and bit pointer parameters. The value pointer
parameter points to the value of another parameter/signal. The source parameter is
given in format P.xx.yy, where xx = Parameter group; yy = parameter index.
Step Action Display
1. Go to the Main menu by pressing if you are
in the Output mode, otherwise by pressing
repeatedly until you get to the Main menu.
2. Go to the Parameters option by selecting
PARAMETERS on the menu with keys and
, and pressing .
3. Select the appropriate parameter group with keys
and . Here the value pointer
parameter 15.01 AO1 PTR is used as an example.
4. Press to select the appropriate parameter
group. Select the appropriate parameter with keys
and , the current value of each
parameter is shown below it.
5. Press . The current value of the value
pointer parameter is shown, as well as the
parameter group it points to.
6. Specify a new parameter group for the value
pointer parameter to point to with keys and
. The parameter group changes
respectively.
MENU
EXIT
PARAMETERS
FAULT LOGGER
TIME & DATE
EXIT ENTER00:00
MAIN MENU 1
LOC
ENTER
01 ACTUAL VALUES
02 I/O VALUES
03 CONTROL VALUES
05 LIFT CTRL SIGNALS
06 DRIVE STATUS
EXIT
SEL00:00
PAR GROUPS 01
LOC
10 START/STOP
12 DIGITAL IO
13 ANALOGUE INPUTS
15 ANALOGUE OUTPUTS
EXIT
SEL00:00
PAR GROUPS 15LOC
SEL
1501 AO1 PTR
P.01.05
1502 AO1 FILT TIME
1503 AO1 MAX
1504 AO1 MIN
PARAMETERS
EXIT
EDIT00:00
LOC
EDIT
1501 AO1 PTR
PAR EDIT
P.01.05
CANCEL NEXT00:00
01 ACTUAL VALUES
LOC
1501 AO1 PTR
PAR EDIT
P.02.05
CANCEL NEXT00:00
02 I/O VALUES
LOC
