90 Using the control panel
Installing the control panel
Connecting the panel to drive

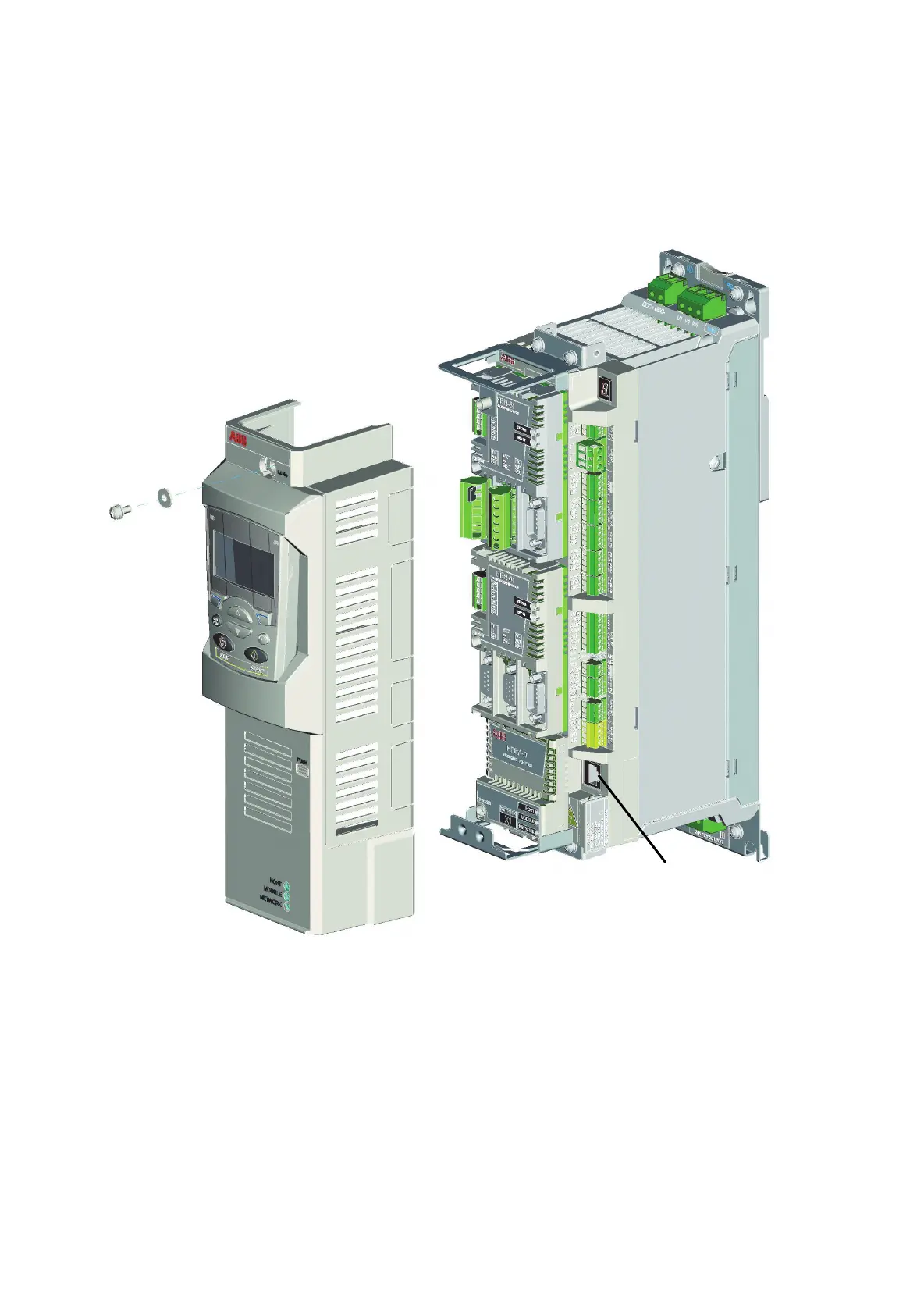

The figure below shows the control panel connection to ACL30 drive.
Mounting the control panel on the cabinet door
See ACS-CP-U Control Panel IP54 Mounting Platform Kit Installation Guide
[3AUA0000049072 (English)].
Selecting the control panel cable
CAT5 straight-through network cable (max. 3 m) can be used. The cable is available
from ABB, but other cables fulfilling the specifications of that cable can be used.
Control panel /
PC connection
