Program features 145
 Jerk selection
The Jerk selection function selects an appropriate jerk into use based on the elevator
operation mode. The function allows you to:
• define different jerk values for the different elevator operation modes
• enable or disable the use of jerks. When parameter 25.91 JERK DISABLE is
activated, the jerks are internally set to a zero value.
You can obtain the acceleration transition time during a jerk by dividing the selected
acceleration by the jerk value.

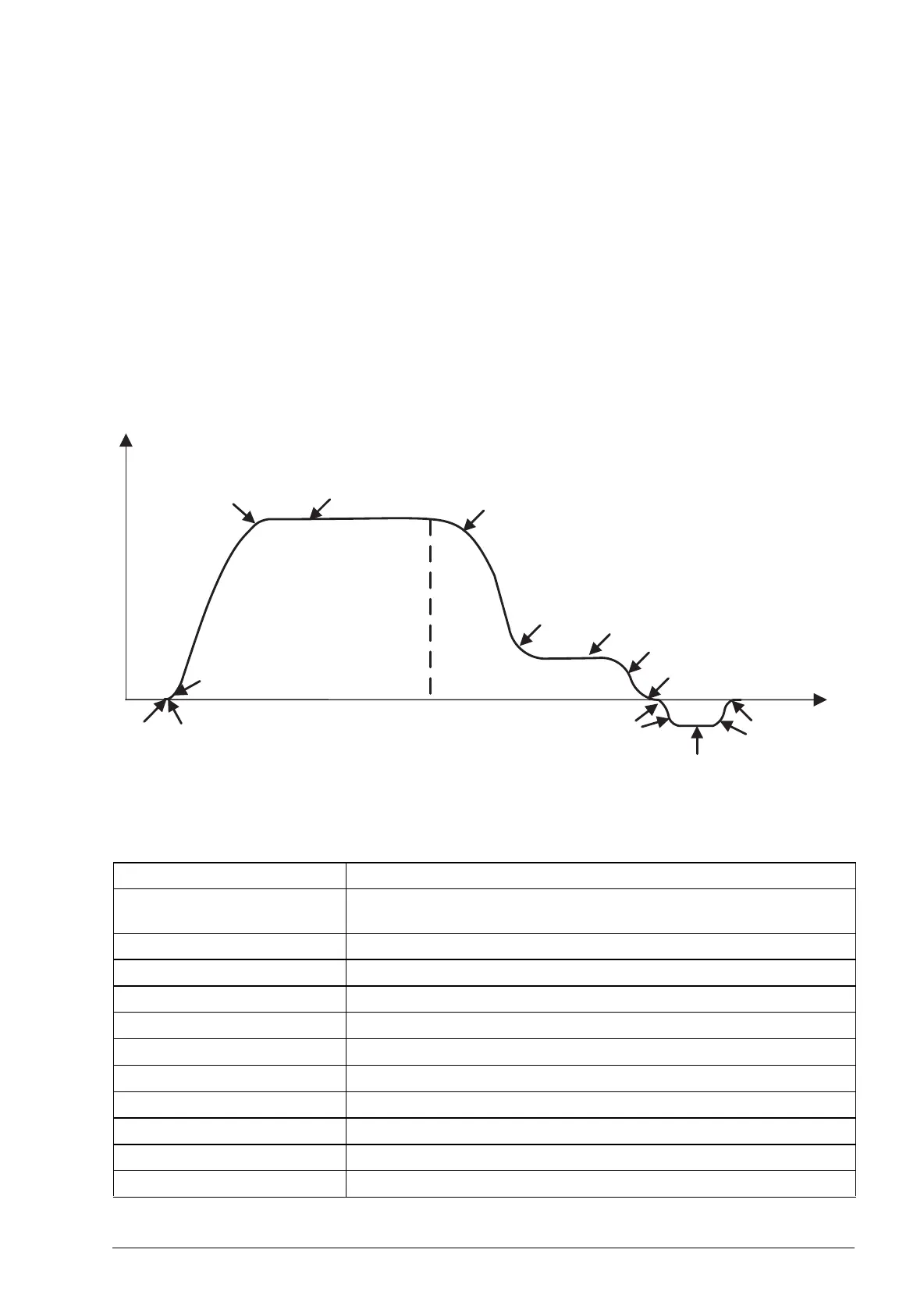

The figure below illustrates how the drive uses the jerks.
Settings
Parameters Additional information
25.80 ACC/DEC SEL Selects the source for the acceleration/deceleration set 1 or
acceleration/deceleration set 2 used in the normal travel mode.
25.81 ACC/DEC CHNG SPD Selects the speed limit in % to change between acc/dec set 1 and 2.
25.82 ACC1 Defines the acceleration for set 1.
25.83 DEC1 Defines the deceleration for set 1.
25.84 ACC2 Defines the acceleration for set 2.
25.85 DEC2 Defines the deceleration for set 2.
25.86 INSPECT MODE ACC Defines the acceleration used in the inspection mode.
25.87 INSPECT MODE DEC Defines the deceleration used in the inspection mode.
25.88 EVAC MODE ACC Defines the acceleration used in the evacuation mode.
25.89 EVACMODE DEC Defines the deceleration used in the evacuation mode.
25.90 RELVL ACC/DEC Defines the acceleration/deceleration used in the releveling mode.
Start Brake open
Jerk1
Jerk2
Jerk3
Jerk4
Jerk5
Jerk7
Jerk7
Releveling
speed
Time
Leveling speed
Leveling active
Nominal or medium speed
Speed
Jerk6
Jerk1
Jerk2
Jerk3
Jerk4
Jerk5
Traveling speed
Leveling speed
Jerk7
Jerk6
Releveling
speed
Leveling active
Start Brake open
Time
Speed
Jerk7
