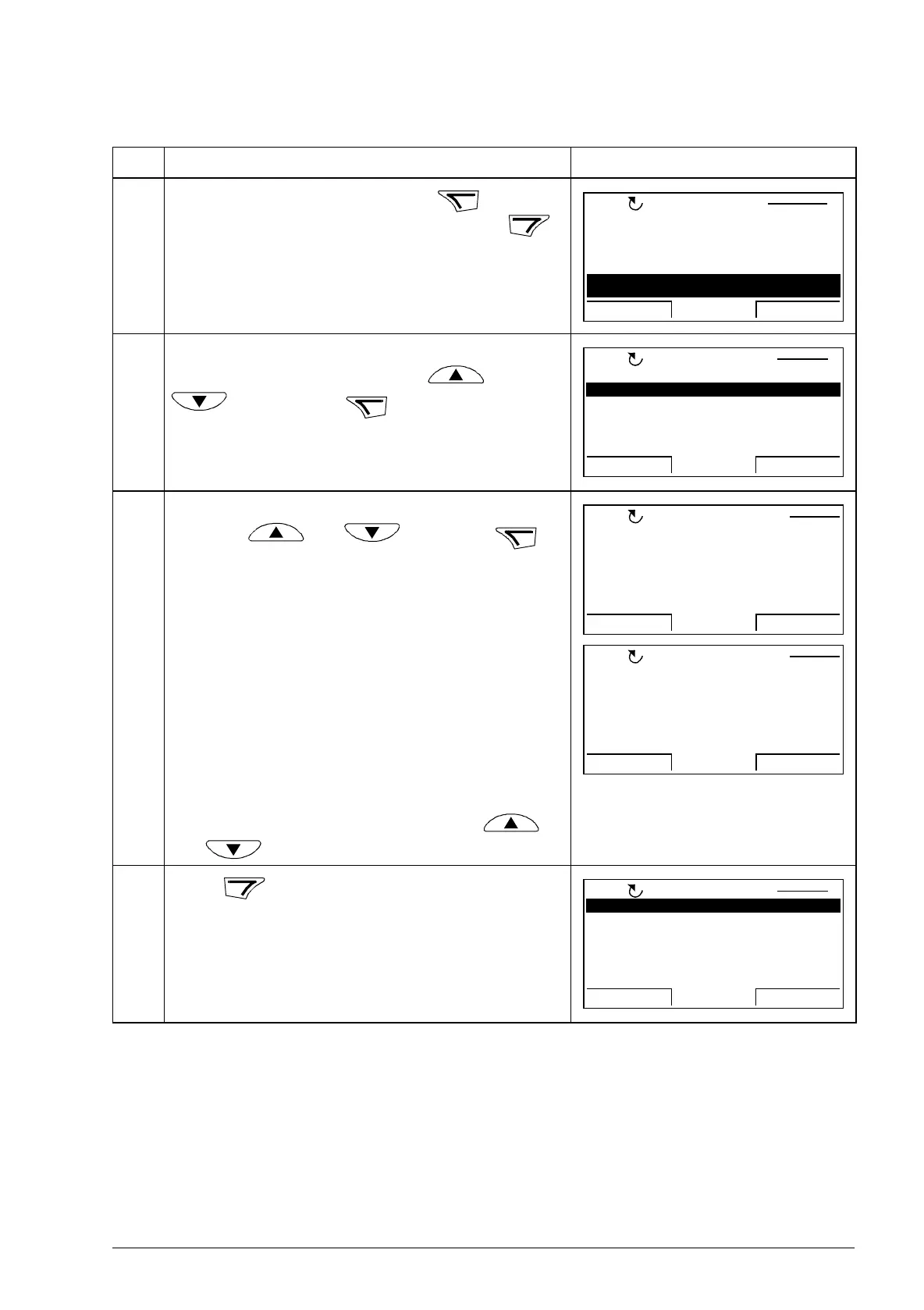

Using the control panel 119
 Viewing backup information
Step Action Display
1. Go to the Main menu by pressing if you are
in the Output mode, otherwise by pressing
repeatedly until you get to the Main menu.
2. Go to the Par Backup option by selecting PAR
BACKUP on the menu with keys and
, and pressing .
3. Select SHOW BACKUP INFO on the Par Backup
with keys and , and press .
The display shows the following information about
the drive from where the backup was made:
BACKUP INTERFACE VER: Format version of the
backup file
FIRMWARE VERSION: Information on the
firmware
UMFL: Firmware of the ACL30 drive
1330: Firmware version (eg, 1.330)
0: Firmware patch version
You can scroll the information with keys
and .
4. Press to return to the Par Backup.
MENU
EXIT
FAULT LOGGER
TIME & DATE
PAR BACKUP
EXIT ENTER00:00
MAIN MENU 4
LOC
ENTER
MAKE BACKUP TO PANEL
SHOW BACKUP INFO
RESTORE PARS ALL
RESTORE PARS NO-IDRUN
RESTORE PARS IDRUN
EXIT
SEL00:00
PAR BACKUP 2LOC
SEL
LOC
EXIT
00:00
LOC
BACKUP INTERFACE VER
0.2
0.2
FIRMWARE VERSION
UMFL, 1330, 0,
BACKUP INFO
EXIT 00:00
FIRMWARE VERSION
UMFL, 1330, 0,
UMFL, 1330, 0,
BACKUP INFOLOC
EXIT
MAKE BACKUP TO PANEL
SHOW BACKUP INFO
RESTORE PARS ALL
RESTORE PARS NO-IDRUN
RESTORE PARS IDRUN
EXIT
SEL00:00
PAR BACKUP 1
LOC
