Electrical installation 69

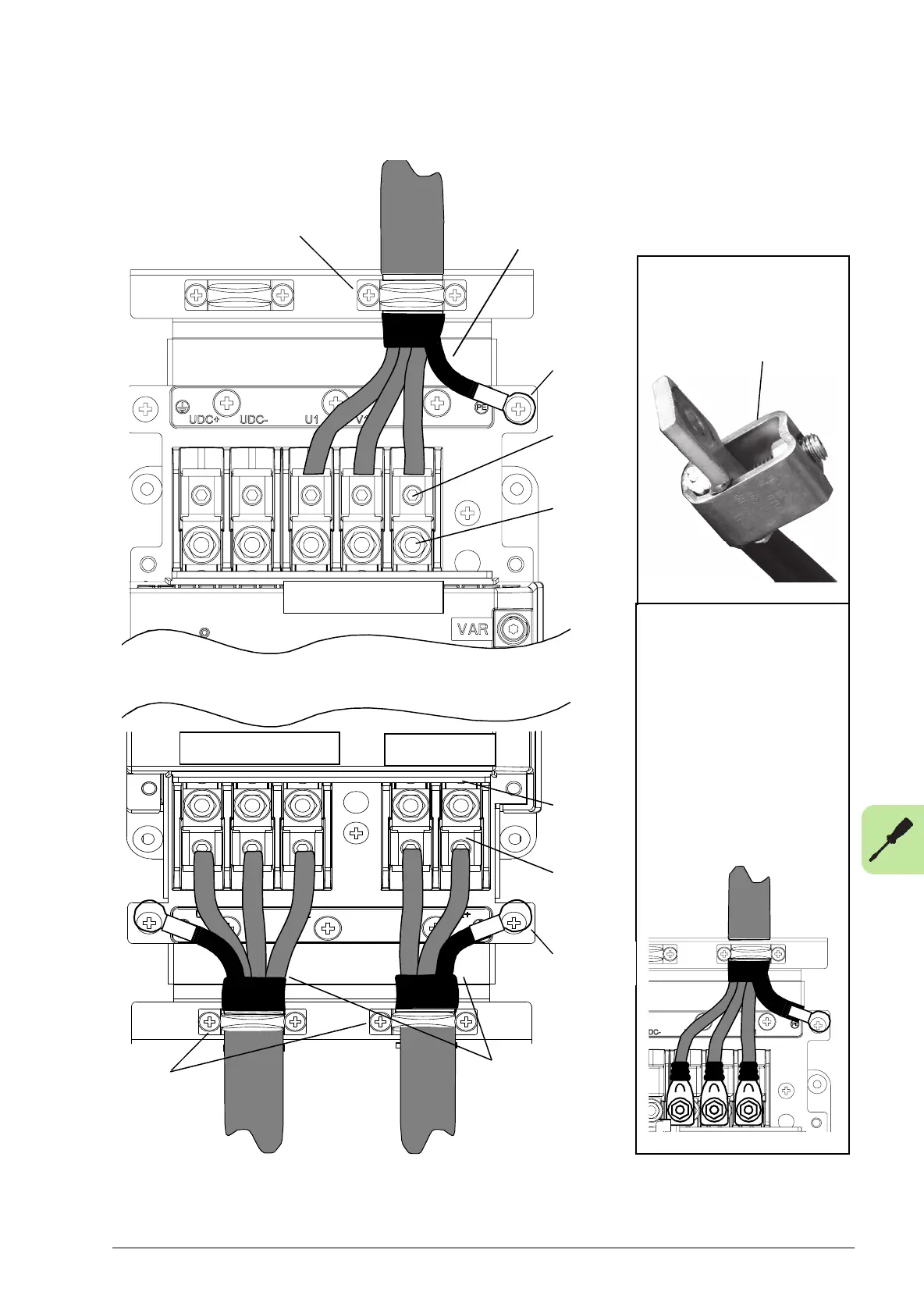

 Power cable connection – frame sizes C and D (connector covers
removed)
Cable
clamp on
bare shield
1.5 N·m
(13 lbf·ft)
U2 V2 W2
Above cable clamp,
cover bare shield
with insulating tape
Screw lug detail
Direct lug connection
Instead of using the
screw lugs included, the
conductors of power
cables can be connected
to the drive terminals by
removing the screw lugs
and using crimp lugs.
U1 V1 W1
Below cable clamp,
cover bare shield with
insulating tape
Cable clamp on bare shield
1.5 N·m (13 lbf·in)
R- R+
Braking resistor cable
15 N·m (11 lbf·ft)
Motor cable
3N·m
(25 lbf·in)
3N·m
(25 lbf·in)
3N·m
(25 lbf·in)
3N·m
(25 lbf·in)
15 N·m
(11 lbf·ft)
15 N·m
(11 lbf·ft)
Supply cable
