ABB ACL30 User Manual

Using the control panel 97
Using the Parameters option
In the Parameters option, you can:
• view and change parameter values
• start, stop, change the direction and switch between local and remote control.

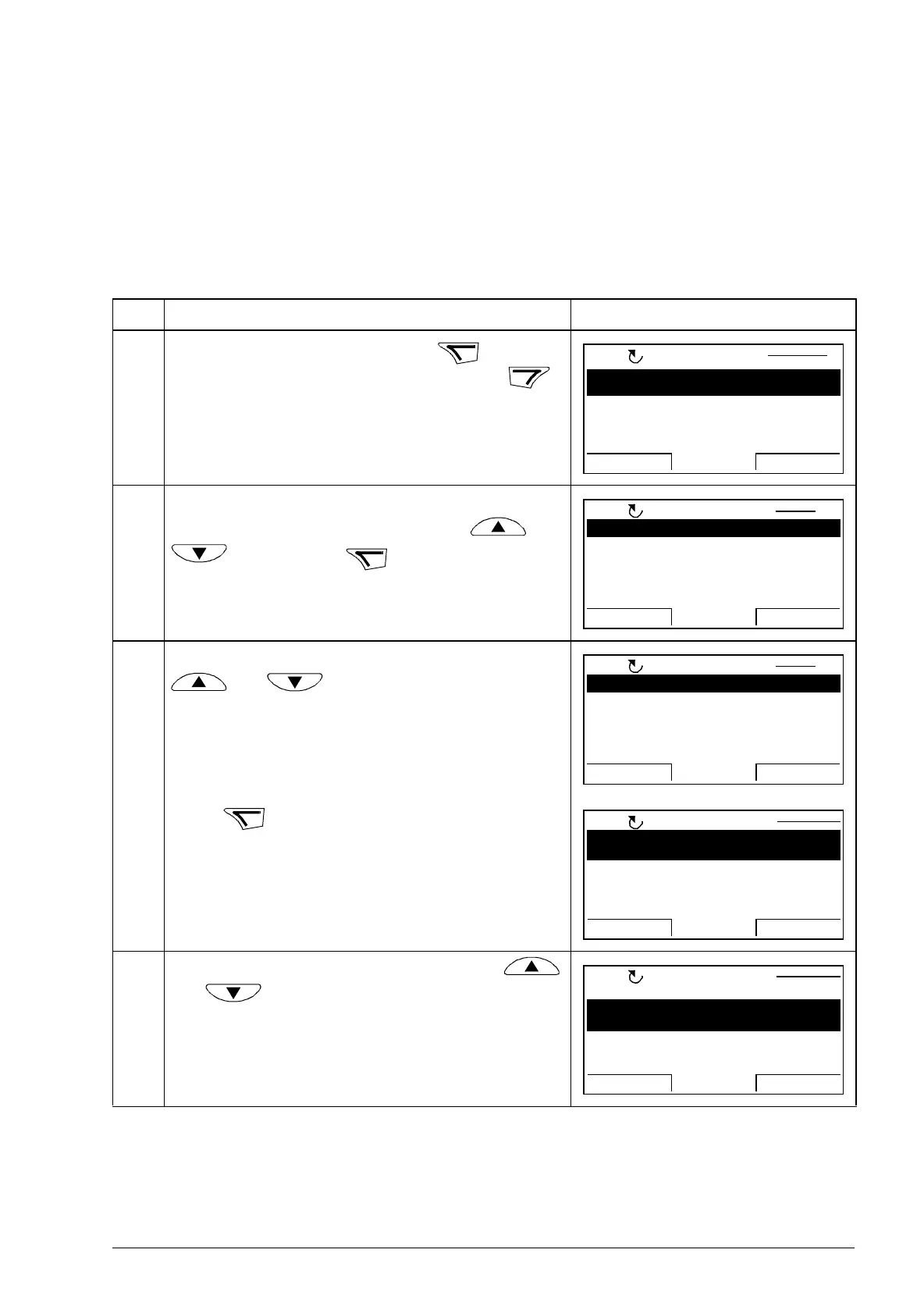

 Selecting a parameter and changing its value
Step Action Display
1. Go to the Main menu by pressing if you are
in the Output mode, otherwise by pressing
repeatedly until you get to the Main menu.
2. Go to the Parameters option by selecting
PARAMETERS on the menu with keys and
, and pressing .
3. Select the appropriate parameter group with keys
and .
Press .
4. Select the appropriate parameter with keys
and . The current value of the parameter is
shown below the selected parameter.
MENU
EXIT
PARAMETERS
FAULT LOGGER
TIME & DATE
EXIT ENTER00:00
MAIN MENU 1
LOC
ENTER
01 ACTUAL VALUES
02 I/O VALUES
03 CONTROL VALUES
05 LIFT CTRL SIGNALS
06 DRIVE STATUS
EXIT
SEL
00:00
PAR GROUPS 01
LOC
99 START-UP DATA
01 ACTUAL VALUES
02 I/O VALUES
03 CONTROL VALUES
05 LIFT CTRL SIGNALS
EXIT
SEL00:00
PAR GROUPS 99LOC
SEL
9901 LANGUAGE
ENGLISH
9902 MOTOR TYPE
9903 MOT NOM CURRENT
9904 MOT NOM VOLTAGE
PARAMETERS
EXIT
EDIT00:00
LOC
9901 LANGUAGE
9902 MOTOR TYPE
AM
9903 MOT NOM CURRENT
9904 MOT NOM VOLTAGE
PARAMETERS
EXIT
EDIT00:00
LOC
