Instrument Tour
AEROSET
®
Customer Training Guide 1-7
94858-103 — July 2003
The components of the System Control Center are described in the
following table.

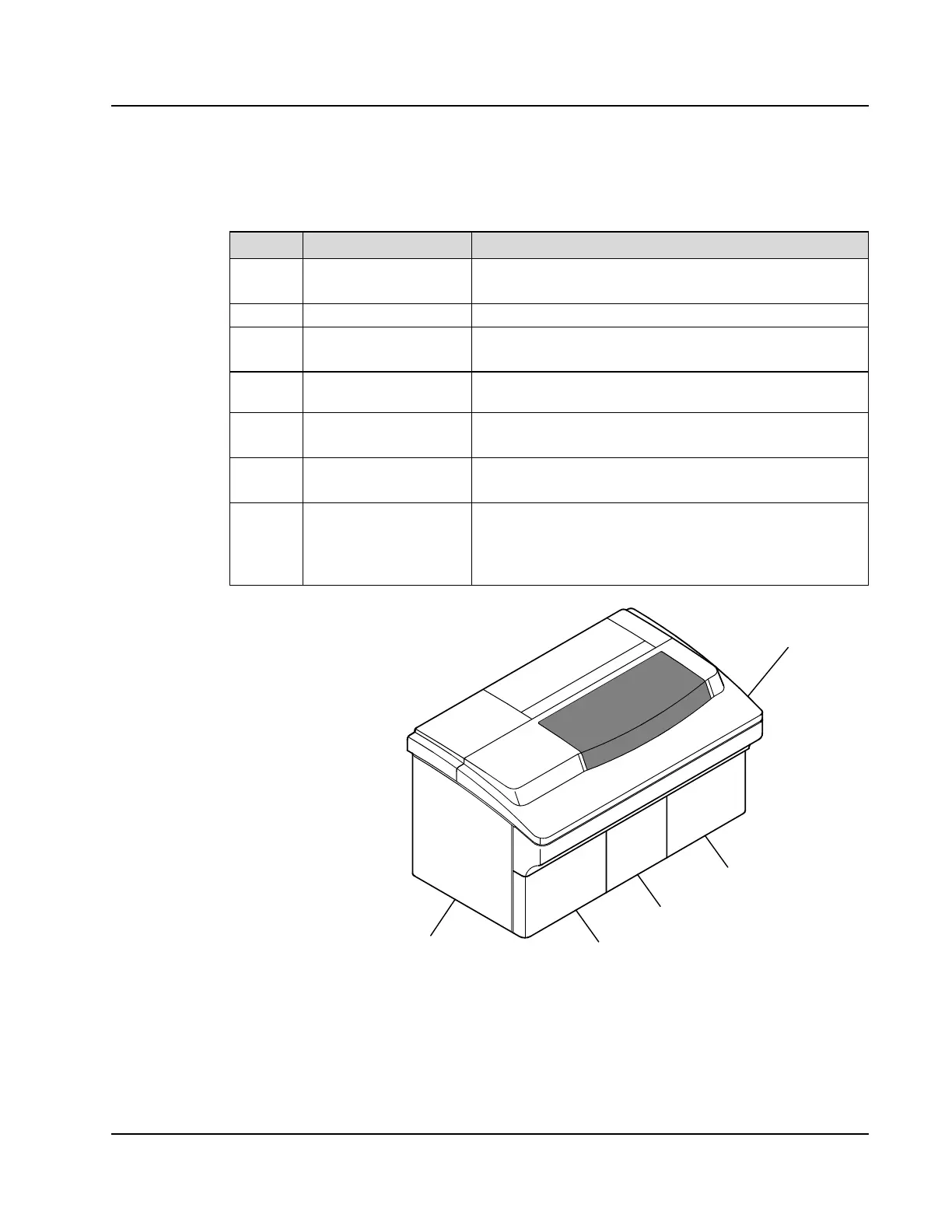

Figure 1.3: AEROSET Analyzer (Front View)
Item SCC Component Description
1
Color Touchscreen
Monitor
Color monitor with touch function.
The monitor plugs into the computer.
2
Keyboard Standard alphanumeric.
3
Computer (CPU) IBM PC/AT compatible.
The computer plugs into the Analyzer.
4
Floppy Disk Drive Used to install assay files, upgrade System software, and copy
files from the CPU.
5
Printer Dot matrix printer.
The printer plugs directly into the wall.
6
Component Stand
(optional)
Provides support for the SCC.
7*
GPIB Communication
Cable
Transmits all communications between the SCC and the
Analyzer.
*This component is not shown in the illustration. The
instructor will show you this component.
125601
Left-Side
Panel
Front-Left
Door
Front-Middle
Door
Front-Right
Door
Top-Main
Cover
