EKI-7710 Series User Manual 87
To access this page, click QoS > QoS Basic Mode > Global Settings.
The function is only available when QoS Properties is set to Basic.

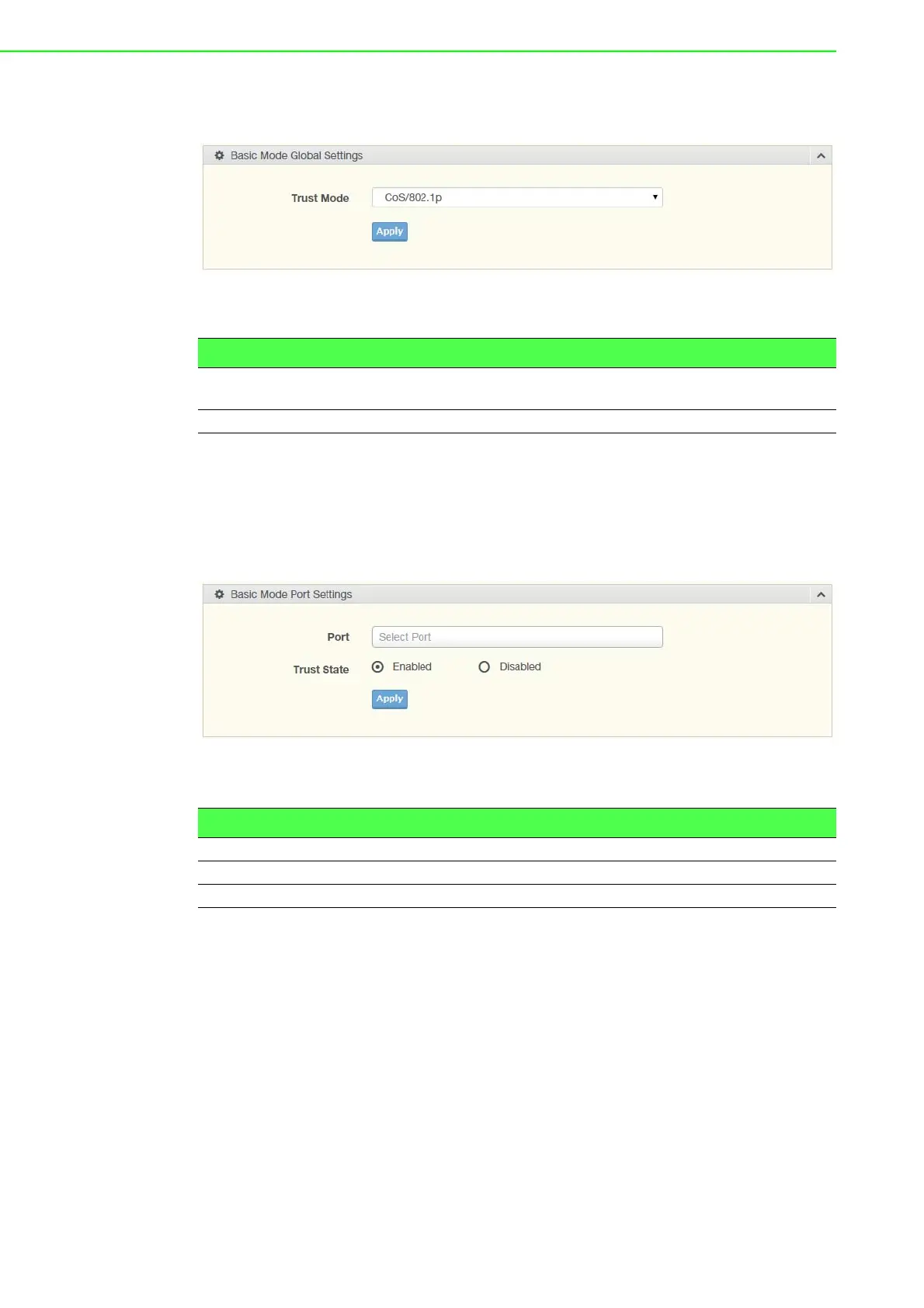

Figure 4.75 QoS > QoS Basic Mode > Global Settings
The following table describes the items in the previous figure.
The ensuing table for QoS Information settings are informational only: Trust Mode.
4.8.2.2 Port Settings
The Port Settings page allows you to define a trust state (enabled or disabled) to a
listed port.
To access this page, click QoS > QoS Basic Mode > Port Settings.
Figure 4.76 QoS > QoS Basic Mode > Port Settings
The following table describes the items in the previous figure.
The ensuing table for QoS Port Status settings are informational only: Port and Trust
State.
4.8.3 Rate Limit
Rate Limits features control on a per port basis. Bandwidth control is supported for
the following: Ingress Bandwidth Control, Egress Bandwidth Control and Egress
Queue.
4.8.3.1 Ingress Bandwidth Control
The Ingress Bandwidth Control page allows you to configure the bandwidth control
for a listed port.
Item Description
Trust Mode Click the drop-down menu to select the trust state of the QoS basic
mode.
Apply Click Apply to save the values and update the screen.
Item Description
Port Enter the port number for the QoS basic mode setting.
Trust State Select Enabled or Disabled to set the port’s trust state status.
Apply Click Apply to save the values and update the screen.
