The following table describes the items in the previous figure.
The ensuing table for Test Result settings are informational only: Port, Channel A,
Cable Length A, Channel B, Cable Length B, Channel C, Cable Length C, Channel D
and Cable Length D.
4.10.2 Ping Test
The Ping Test page allows you to configure the test log page.
To access this page, click Diagnostics > Ping Test.

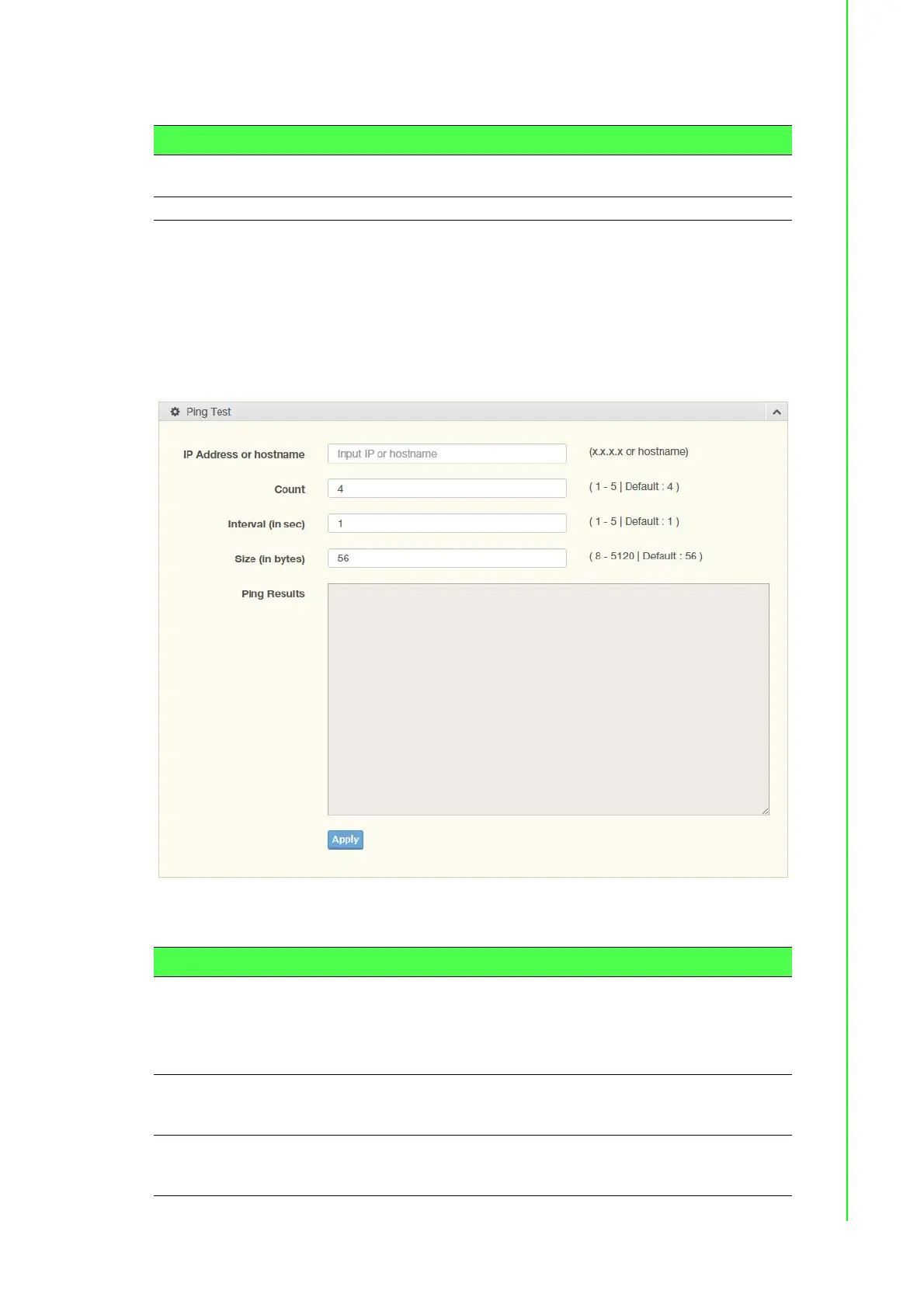

Figure 4.108 Diagnostics > Ping Test
The following table describes the items in the previous figure.
Item Description
Port Click the drop-down menu to select a pre-defined port for diagnostic
testing. Giga ports are displayed with a channel A to D designation.
Copper Test Click Copper Test to display the test result for the selected port.
Item Description
IP Address Enter the IP address or host name of the station to ping. The initial
value is blank. The IP Address or host name you enter is not retained
across a power cycle. Host names are composed of series of labels
concatenated with periods. Each label must be between 1 and 63
characters long, maximum of 64 characters.
Count Enter the number of echo requests to send. The default value is 4.
The value ranges from 1 to 5. The count entered is not retained
across a power cycle.
Interval (in sec) Enter the interval between ping packets in seconds. The default value
is 1. The value ranges from 1 to 5. The interval entered is not retained
across a power cycle.
