48 EKI-7710 Series User Manual
To access this page, click L2 Switching > Link Aggregation > LAG Port Settings.

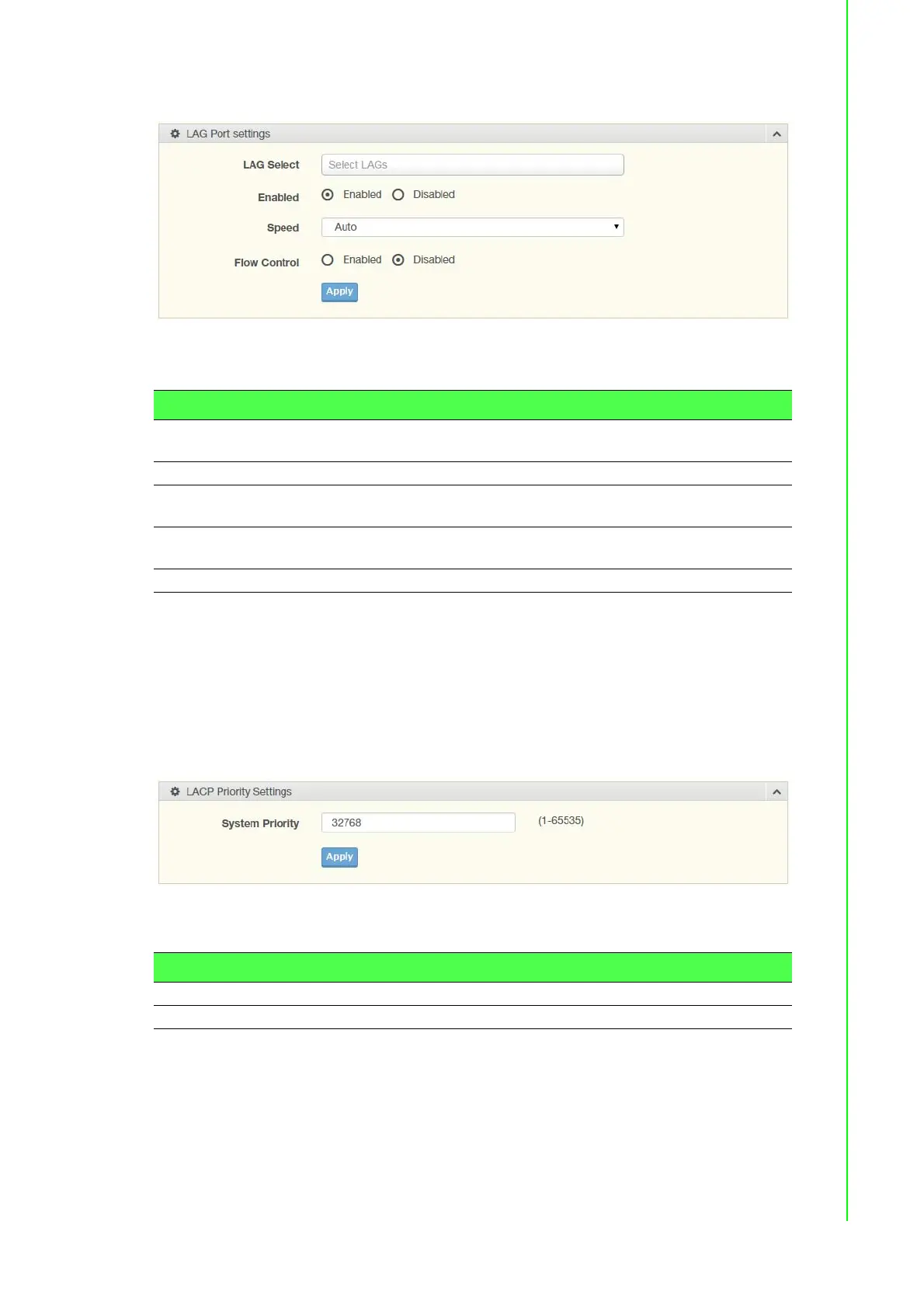

Figure 4.19 L2 Switching > Link Aggregation > LAG Port Settings
The following table describes the items in the previous figure.
The ensuing table for LAG Port Status settings are informational only: LAG, Descrip-
tion, Port Type, Enable State, Link Status, Speed, Duplex, FlowCtrl Config and Flow-
Ctrl Status.
4.5.3.4 LACP Priority Settings
The LACP Priority Settings page allows you to configure the system priority for LACP.
To access this page, click L2 Switching > Link Aggregation > LACP Priority Set-
tings.
Figure 4.20 L2 Switching > Link Aggregation > LACP Priority Settings
The following table describes the items in the previous figure.
The ensuing table for LACP Information settings are informational only: System Pri-
ority.
4.5.3.5 LACP Port Settings
Link Aggregation Control Protocol (LACP) provides a method to control the bundling
of several physical ports together to form a single logical channel. By configuring the
LACP function, the switch can negotiate an automatic bundling of links by sending
LACP packets to the peer device (also implementing LACP).
Item Description
LAG Select Click the drop-down menu to select a predefined LAG trunk definition:
LAG 1-8.
Enabled Click the radio button to enable or disable the LAG Port.
Speed Click the drop-down menu to select the port speed: Auto, Auto-10M,
Auto-100M, Auto-1000M, Auto-10/100M, 10M, 100M, or 1000M.
Flow Control Click the radio button to enable or disable the Flow Control for the
LAG Port.
Apply Click Apply to save the values and update the screen.
Item Description
System Priority Enter the value (1-65535) to designate the LACP system priority.
Apply Click Apply to save the values and update the screen.
