EKI-7710 Series User Manual 85
To access this page, click QoS > General > DSCP Mapping.

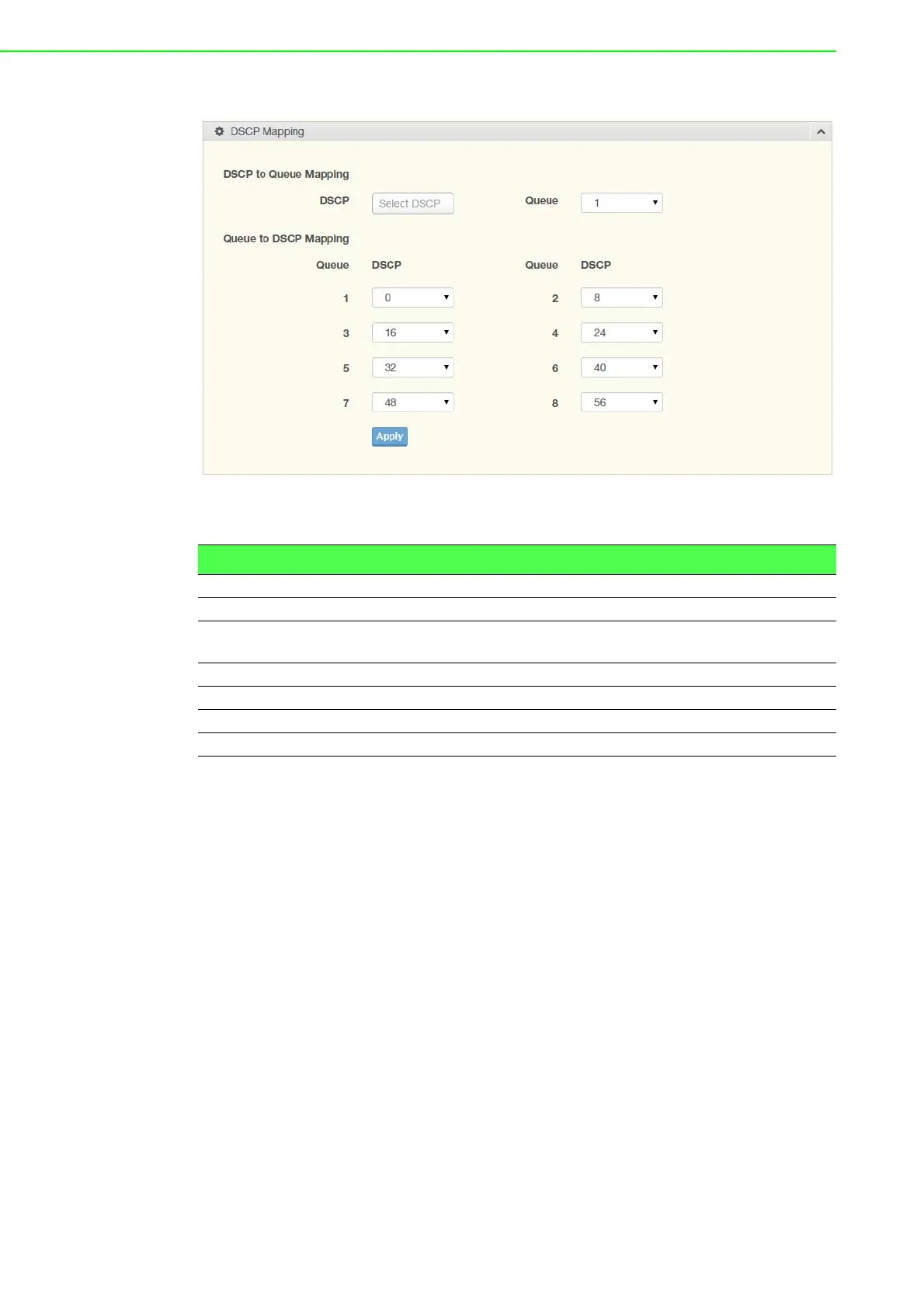

Figure 4.73 QoS > General > DSCP Mapping
The following table describes the items in the previous figure.
The ensuing table for DSCP Mapping Information settings are informational only:
DSCP and Mapping to Queue.
The ensuing table for Queue Mapping Information settings are informational only:
Queue and Mapping to DSCP.
4.8.1.6 IP Precedence Mapping
The IP Precedence Mapping allows you to set IP Precedence mapping.
Item Description
DSCP to Queue Mapping
DSCP Enter the DSCP entry to define the precedence values.
Queue Click the drop-down menu to select the queue designation for the
DSCP value.
Queue to DSCP Mapping
Queue Displays the queue value for the DSCP map.
DSCP Enter the DSCP entry to define the precedence values.
Apply Click Apply to save the values and update the screen.
