To access this page, click L2 Switching > Multicast > MLD Snooping > MLD Set-
tings.

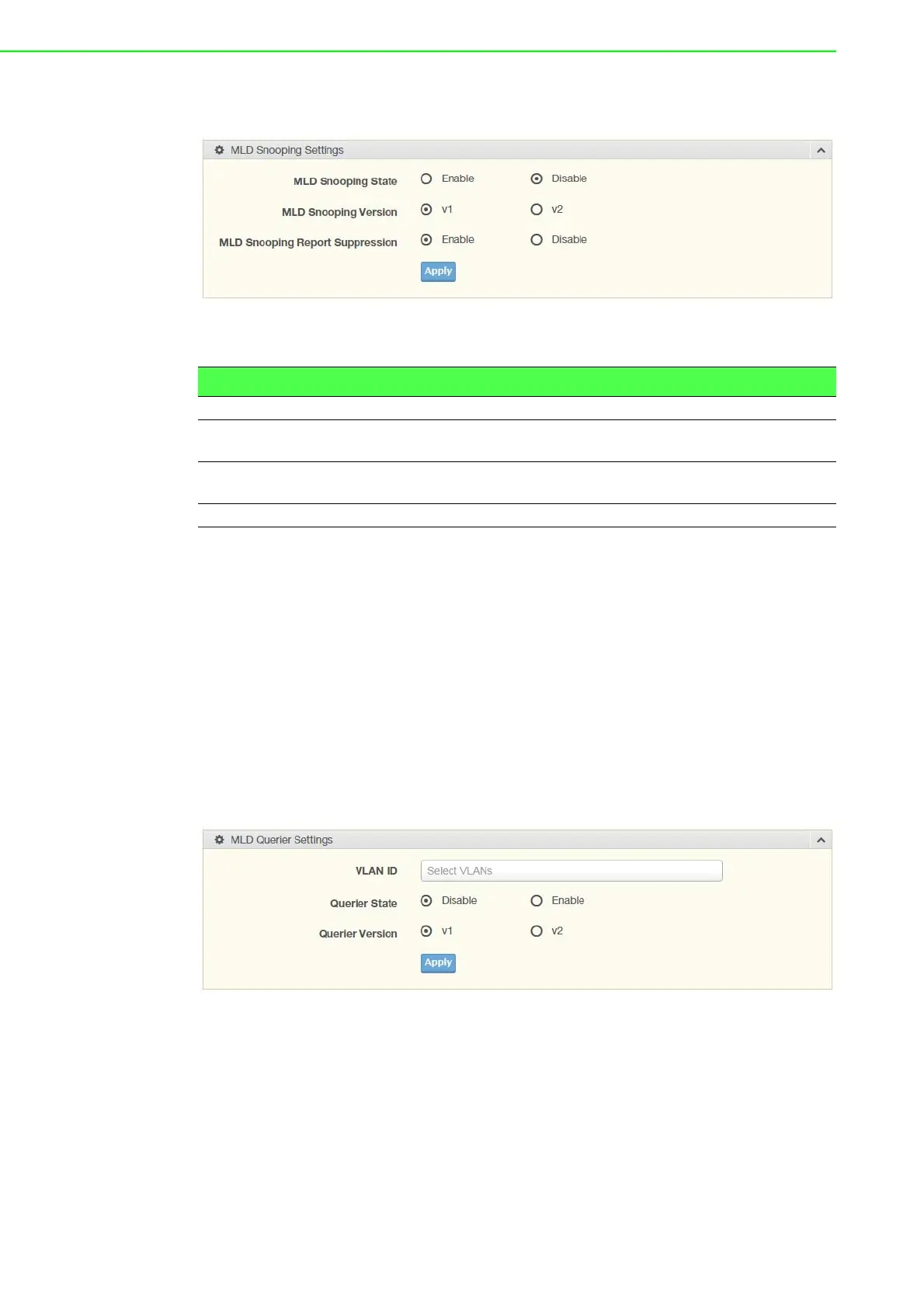

Figure 4.34 L2 Switching > Multicast > MLD Snooping > MLD Settings
The following table describes the items in the previous figure.
The ensuing table for MLD Snooping Information settings are informational only:
MLD Snooping State, MLD Snooping Version and MLD Snooping V2 Report Sup-
pression.
The ensuing table for MLD Snooping Table settings are informational only: Entry
No., VLAN ID, MLD Snooping Operation State, Router Ports Auto Learn, Query
Robustness, Query Interval (sec.), Query Max Response Interval (sec.), Last Mem-
ber Query count, Last Member Query Interval (sec), Immediate Leave and Edit (click
to modify the settings).
MLD Querier
The MLD Querier page allows you to select and enable/disable the MLD querier and
define the version (IGMPv1 or IGMPv2) when enabled.
To access this page, click L2 Switching > Multicast > MLD Snooping > MLD Que-
rier.
Figure 4.35 L2 Switching > Multicast > MLD Snooping > MLD Querier
Item Description
MLD Snooping State Select Enable or Disable to setup the MLD Snooping State.
MLD Snooping Ver-
sion
Select the querier version (V1 or V2) designated to the MLD Snooping
Version.
MLD Snooping
Report Suppression
Select Enable or Disable to designate the status of the report sup-
pression.
Apply Click Apply to save the values and update the screen.
