Advantech EKI-7710E-2C User Manual

4 EKI-7710 Series User Manual
1.3 Hardware Views
1.3.1 Front View
The following view applies to EKI-7710E-2C, EKI-7710E-2CI, EKI-7710G-2C and
EKI-7710G-2CI.

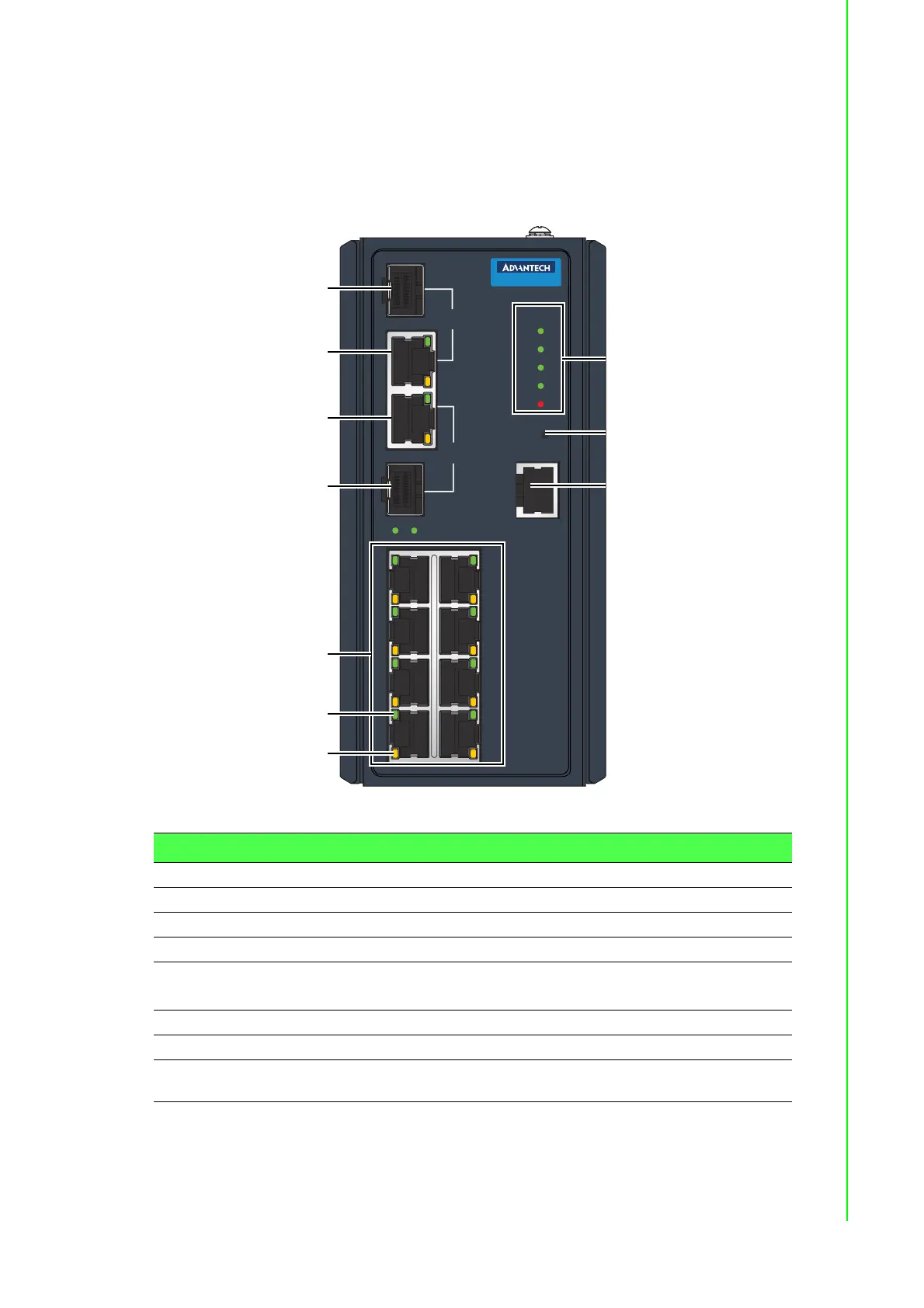

Figure 1.1 Front View
No. Item Description
1
ETH port Fiber ports x 2
2
ETH port RJ45 ports x 2
3
ETH port RJ45 ports x 8
4
LNK/ACT LED Link activity LED
5
Speed LED
 Orange: 100M
 Green: 1G
6
System LED panel See “System LED Panel” on page 6 for further details.
7
Reset button Button allows for system soft reset or factory default reset.
8
Console serial port Console cable port to COM port (DB9 male) on computer to
RS232 managed switch (RJ45 female).
10
9
LNK/ACT
12
34
56
78
Console
Reset
SYS
R.M.
PWR1
PWR2
Alarm
9
10
EKI-7710G
1
3
4
5
2
2
1
6
8
7

Advantech EKI-7710E-2C Specifications

General

Brand	Advantech
Model	EKI-7710E-2C
Category	Switch
Language	English
